Flat Roof Access Hatch Square

Name: Flat Roof Access Hatch Square
Brand: Lamilux Rooflights Ltd
SKU: bHJj2n8VuR4qgbYTbfhcdT

Verified by manufacturer 26 days ago

Lamilux Rooflights Ltd

Third party certifications:

TUV - Safety and Quality Report
Certificate type

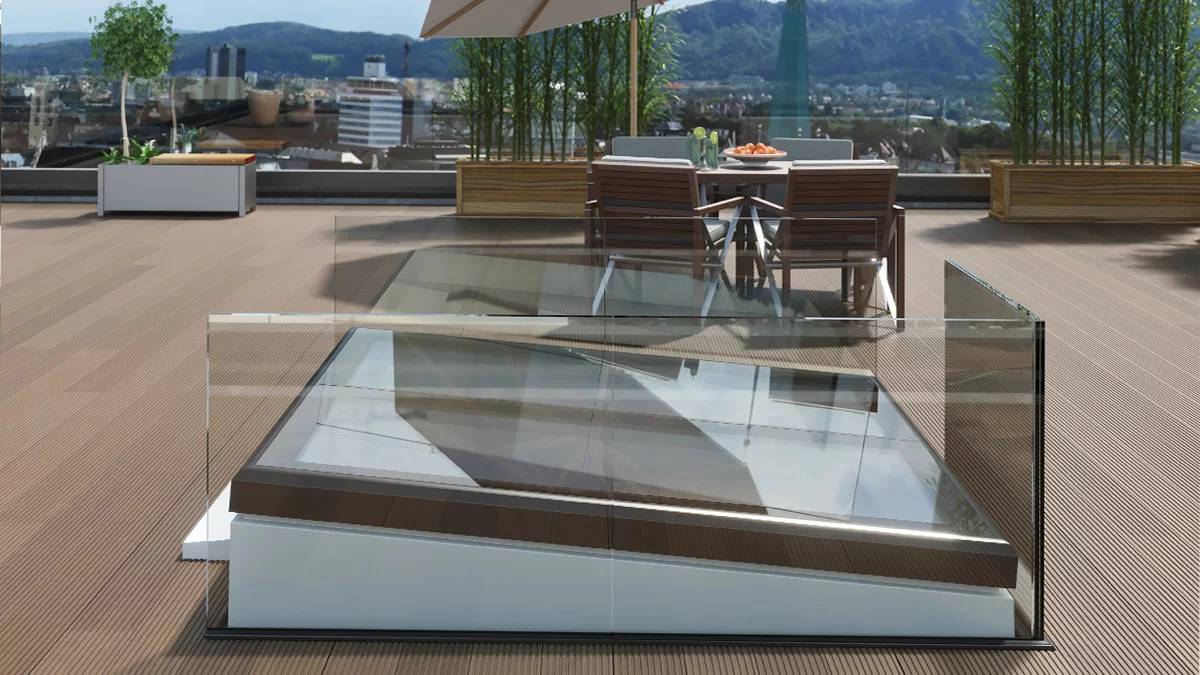

Roof access hatch designed to give a generous daylight intake in attic apartments alongside convenient access to the roof terrace or patio.

Jump to:

01284 749051 Website

Application

Suited for application for rooftop projects where access is required to and from the rooftop terrace or patio.

Description

Roof access hatch designed to give a generous daylight intake in attic apartments alongside convenient access to the roof terrace. The 2000 x 2000 mm glass rooflight opened hydraulically via key switch.

Flat Roof Access Hatch Square Features and benefits:

Winner of the Red Dot Design Award 2021 in the category Product Design.
Maximum daylight incidence with 4 m² glass area.
Roof access is possible via spiral and platform stairs due to the square shape.

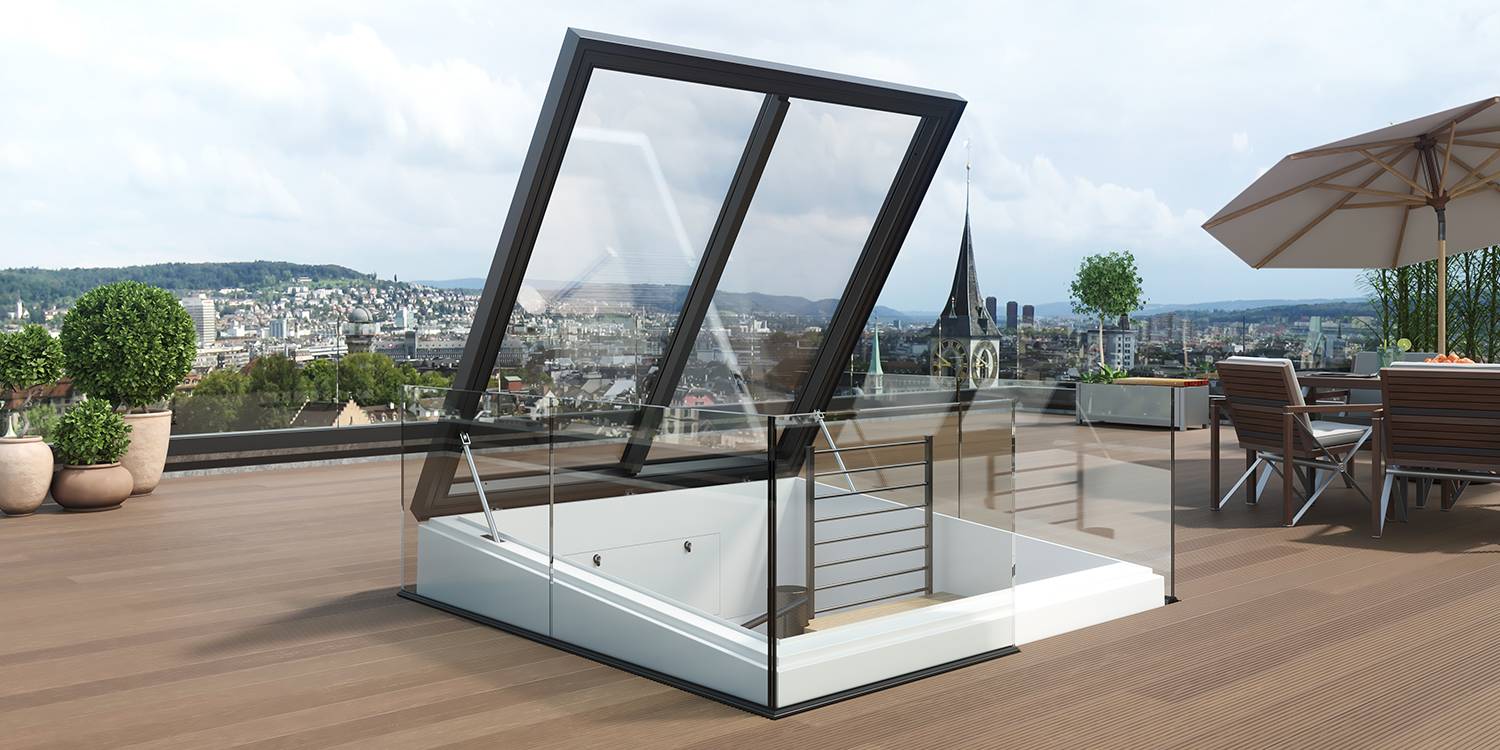

Flat roof access hatch that opens up 70° in approximately 45 seconds.

General information

Color	White Manufacturer guidance Available in a range of RAL colours.
Finish	Powder-coated Guidance for specification option: Polyester powder coated (PPC).
Material	Glass Aluminium
Shape	Square
Length	2000 mm
Width	2000 mm
Height	510 mm
Warranty description	- Manufacturer guidance Manufacturer's warranty.

Uniclass	Pr_30_59_36_74 Roof hatchesPrimary Pr_30_59_72_31 Framed rooflights
CAWS	L10/460 Rooflights L10/45 Rooflights L20/60 Doors L20/630 Hatches

Product range	Roof Access Hatches

Specification data - Roof hatches

Format	External.
Door	-
Orientation	Horizontal.
Material	Aluminium, glass and glass-fibre reinforced plastic (GRP).
Operation	-
Mode	Manual. Guidance for specification option: Push button.
Control	Continuous ventilation for both flaps with pushbutton. Closing edge protection via sensor.
