Flat reinforced bitumen inverted roof on composite concrete and steel deck

NBS

Flat roof construction comprising: reinforced bitumen membrane inverted roof covering system, composite steel and concrete deck.

Jump to:
+44 (0)345 4569594 theNBS.com
Description

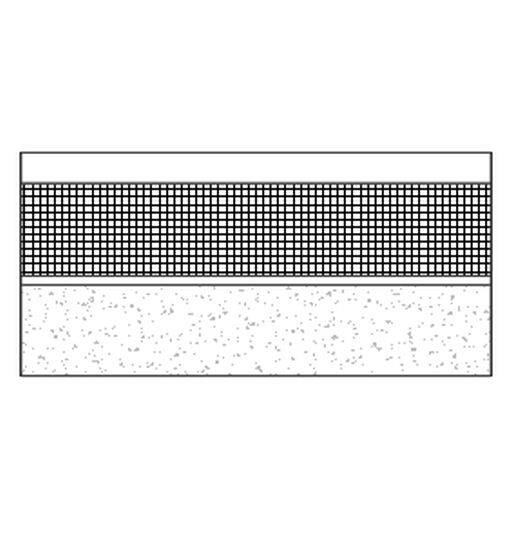

Flat roof construction comprising:

Reinforced bitumen membrane inverted roof covering system

  • 50 mm Paving slabs
  • 2 mm Filter layer
  • 150 mm XPS foam board
  • 15 mm Reinforced bitumen membrane

Composite steel and concrete deck

  • 150 mm Composite steel and concrete deck

Digital objects
PlatformCompatibleVersionCertified to
IFC
- 2 2.0
Revit
Revit 2016 2 2.0
Download now from NBS National BIM Library
