Flat Plate Inserts

Name: Flat Plate Inserts
Brand: CAT (Carpet Accessory Trims) Limited
SKU: e523JP9N4ej8NRB1bBWzvN

Verified by manufacturer 19 days ago

FPA 10 x 3 - Aluminium

Stair insert plates in aluminium, brass and stainless steel.

Jump to:

Application

Medium to heavy foot traffic situations such as in hotels, pubs, clubs, cafes, shops, schools, commercial offices and apartment buildings.

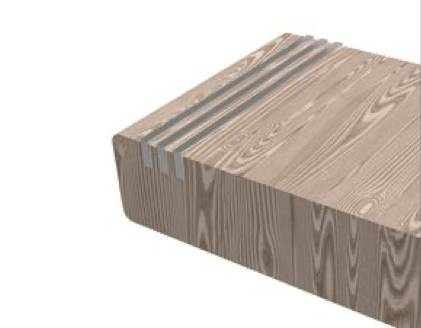

Stair Tread Insert Plates, designed to define and provide slip resistance to the edge of the stair treads.

Features and benefits:

Provide a visual aid and some slip resistance.
Create flooring features.
Adhesive fixing.
Solid brass, stainless steel or aluminium alloy.

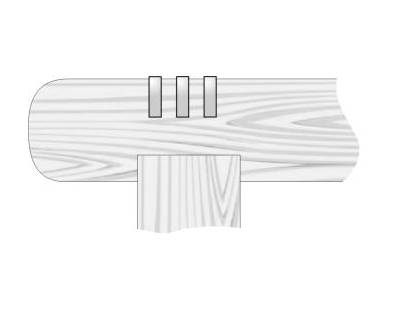

Typical installations include timber steps and stone steps.
The finishes are to the top edge and approximately 3 mm down the vertical edge only.

Color	Silver Gold
Finish	Mill
Material	Aluminium Brass Stainless steel
Shape	Rectangle
Length	2500 mm
Width	3 mm 6 mm 3.18 mm 5 mm
Height	10 mm 12 mm 6 mm 16 mm 19 mm

Uniclass	Pr_35_90_31_84 Stair trimsPrimary
CAWS	M40/10 Natural stone covering to M40/115 Natural stone covering to M50/750 Stair nosings and trims M50/75 Stair nosings and trims

Product range	Flate Plate Inserts for Stairs and Floors

Material	Aluminium. Guidance for specification option: Aluminium Alloy 6063 T6.
Finish	Mill.
Colour	As Finish.
Profile	Stair insert plates.
Thickness of floor finish	- Manufacturer guidance Consult manufacturer for details and insert requirements.

Depth	10 mm. Manufacturer guidance Depth dimension.
Gauge	3 mm.
Length	2500 mm. Manufacturer guidance Standard length.
Fixing	Adhesive. Guidance for specification option: Manufacturer recommends Stycco Flex rapid curing flexible adhesive by F. Ball & Co Ltd. subject to following their instructions for use.

Country of material origin	Europe
Country of product manufacture	United Kingdom
Material	Aluminium Brass Stainless steel
Recyclability	100% recyclable at suitable disposal centres
Recycled content As defined in clause 7.8 of BS EN ISO 14021	100 %
