Flat mastic asphalt warm roof on concrete deck

Verified by manufacturer 11 days ago

NBS

Flat roof construction comprising: mastic asphalt warm roof covering system, concrete deck.

Jump to:
BIM object icon
+44 (0)345 4569594 Website

Description

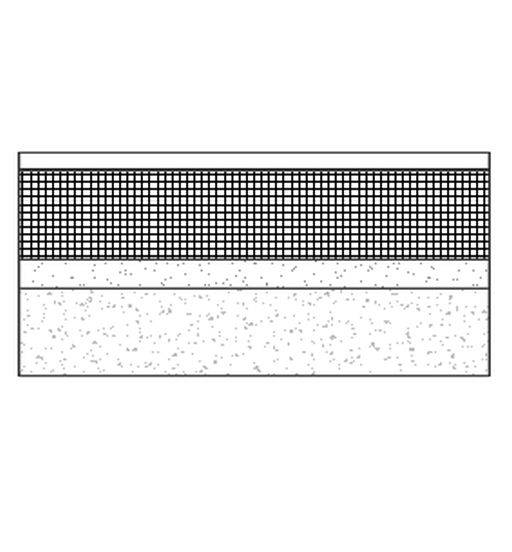

Flat roof construction comprising:

Mastic asphalt warm roof covering system

  • 30 mm mastic asphalt
  • 2 mm Reinforced bitumen membrane
  • 150 mm PIR foam board
  • Polyethylene vapour control layer

Concrete deck

  • 150 mm In situ concrete

BIM objects

BIM object icon

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
Revit

Revit 2016

2

IFC
-

2
