Flat mastic asphalt inverted roof on beam and block deck
Verified by manufacturer 3 months ago
Flat roof construction comprising: mastic asphalt inverted roof covering system, cementitious levelling screed system, beam and block roof deck.
Description

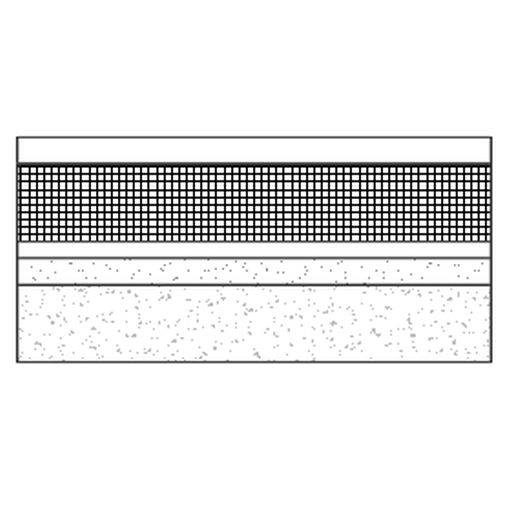

Flat roof construction comprising:
Mastic asphalt inverted roof covering system
- 50 mm Paving slabs
- 2 mm Filter layer
- 150 mm XPS foam board
- 30 mm Mastic asphalt
- 2 mm Reinforced bitumen membrane
Cementitious levelling screed system
- 50 mm Cementious levelling screed
Beam and block roof deck
- 150 mm Beam and block deck
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | Revit 2016 | 2 |
 IFC | - | 2 |
