Flat liquid applied inverted roof on concrete deck
Verified by manufacturer 3 months ago
Flat roof construction comprising: liquid applied inverted roof covering system, concrete deck.
Description

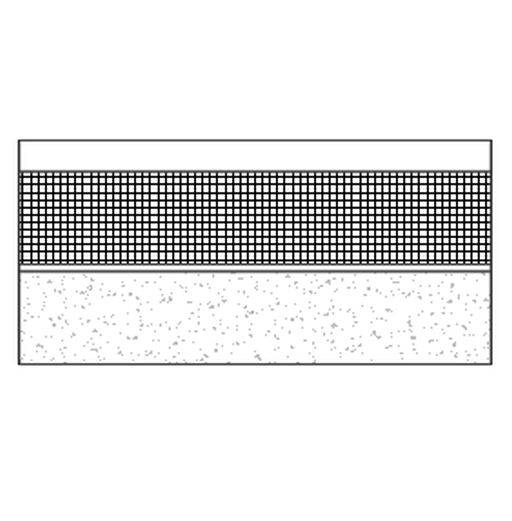

Flat roof construction comprising:
Liquid applied inverted roof covering system
- 50 mm Paving slabs
- 2 mm Filter layer
- 150 mm XPS foam board
- 10 mm Polyurethane waterproof coating
- 2 mm Carrier membrane
Concrete deck
- 150 mm In situ concrete
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | Revit 2016 | 2 |
 IFC | - | 2 |
