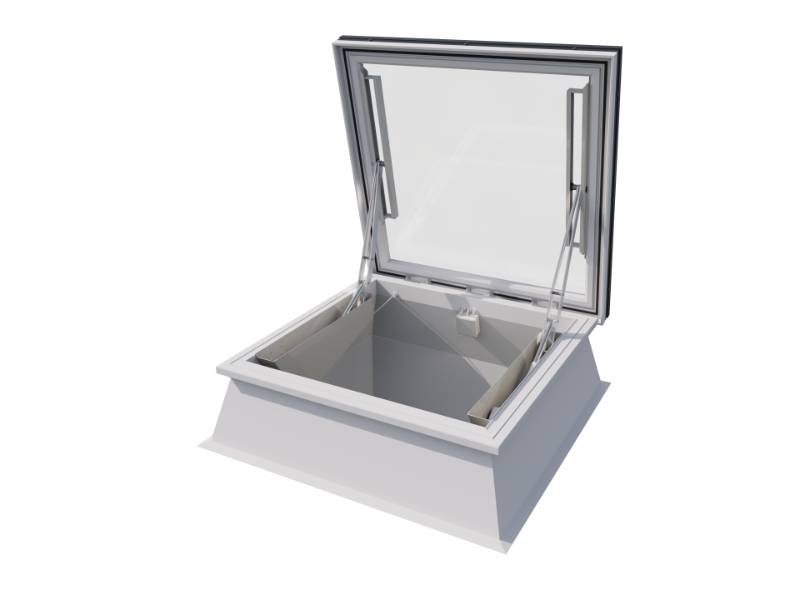

Flat Glass Access Hatch
Verified by manufacturer 4 days ago
Thermally efficient hatch for safe, easy access to roof areas, terraces and gardens.
Application
Suitable for use for access in roofs for terraces and roof gardens.
Description
Flat Glass rooflight hatch range can be configured to include a range of opening options such as a powered access hatch. This provides safe, easy access to roof spaces for maintenance or to open up roof spaces for terraces and roof gardens.
Units come fully assembled and ready to fit with PVC kerb and 24 V tandem actuators, and with optional 230 V transformer, wind and rain sensor.
Features and benefits:
- Modern and stylish flat glass rooflight design.
- Elegant aluminium frame powder coated in choice of RAL 7016 grey or RAL 9005 black.
- Safe, easy access to flat and low pitch roofs.
- Large daylight and ventilation area.
- Highly thermally efficient with thermally isolated frame and double glazing offering overall U-values as low as 1.72 W/m²·K.
- Safety of those below and above the rooflight assured thanks to a laminated inner pane and the product achieving non-fragility to CWCT TN-67 (for class 1 or 2 roofs depending on size) and Class B non-fragile to ACR[M]001 when new and fully installed to manufacturers installation guidelines.
- Ten year warranty.
- Quick and easy to install.
- Available in sizes from 1000 x 1000 mm up to 1500 x 1500 mm square or 2000 x 1000 mm rectangle.
- Units supplied with 24 V tandem actuators and 300 mm high PVC kerb.
- Optional 230 V a.c. to 24 V d.c. transformer with rocker switch.
- Optional wind and rain sensor.
- A range of special glass options available.
General information
Color | White Clear Grey Black |
Finish | Powder-coated |
Material | Glass Aluminium PVC |
Shape | Square Rectangle |
Length | 1000 mm 1050 mm 1200 mm 1350 mm 1500 mm |
Width | 1000 mm 1050 mm 1200 mm 1350 mm 1500 mm |
Height | Bespoke |
Warranty description | Ten year |
Uniclass | |
CAWS | H67/365 Roof hatches L20/630 Hatches |
SKU Code | TB442 |
Specification data - Roof hatches
Classification data | |
Format | External. |
Performance | |
Fire resistance | |
Integrity | To EN 13501-1, Class A and BROOF(T4). |
Door | |
Orientation | Horizontal. |
Position | Flush. |
Material | Glass. Guidance for specification option:
|
Operation | |
Mode | Automatic. Guidance for specification option: 24V tandem actuators. |
Control | Rocker switch. Rocker switch with rain and wind sensor. |
Accessories | Not required. 230 V a.c. to 24 V d.c. transformer with rocker switch. |
Dimensions | 1000 x 1000 mm. 1050 x 1050 mm. 1200 x 1050 mm. 1200 x 1200 mm. 1350 x 1050 mm. 1350 x 1200 mm. 1350 x 1350 mm. 1500 x 1000 mm. 1500 x 1050 mm. 1500 x 1200 mm. 1500 x 1350 mm. 1500 x 1500 mm. 1650 x 1050 mm. 1650 x 1200 mm. 1650 x 1350 mm. 1800 x 1050 mm. 1800 x 1200 mm. 1800 x 1350 mm. 1950 x 1050 mm. 2000 x 1000 mm. Bespoke. Guidance for specification option: Consult manufacturer and insert requirements. |
Kerb | PVC kerb. Guidance for specification option: Rigid Multiwall PVC kerb, designed to fit directly to roof structural element (by others), incorporating integrated roof covering clamp for ease of installation. Maximum roof covering termination height of 300 mm. |
Light transmission | 77–79%. Guidance for specification option:
|
Non-fragility rating | To CWCT TN-76, Class B. |
Frame | Aluminium, powder-coated RAL 7016, grey. Aluminium, powder-coated RAL 9005, black. |
Thermal insulation (U-value) | 1.72–1.73 W/m²·K. Guidance for specification option: Consult manufacturers literature for specific details. |
Snow load | 1200 N/m². |
Wind load | 1000 N/m². |
Sustainability data
Material | Glass Aluminium PVC |
