Flat bar decking grilles

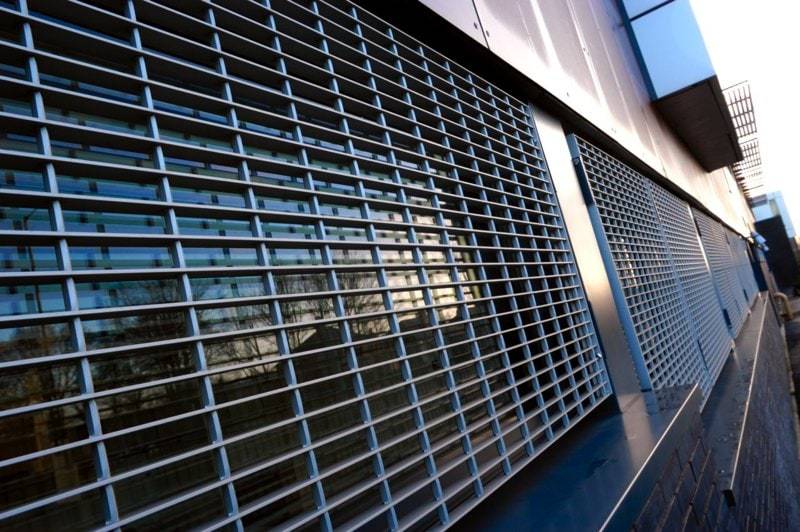

Although it is not specifically designed for sun protection, the Flat Bar open grille system is also suitable for solar shading.
Especially suited for screening applications.

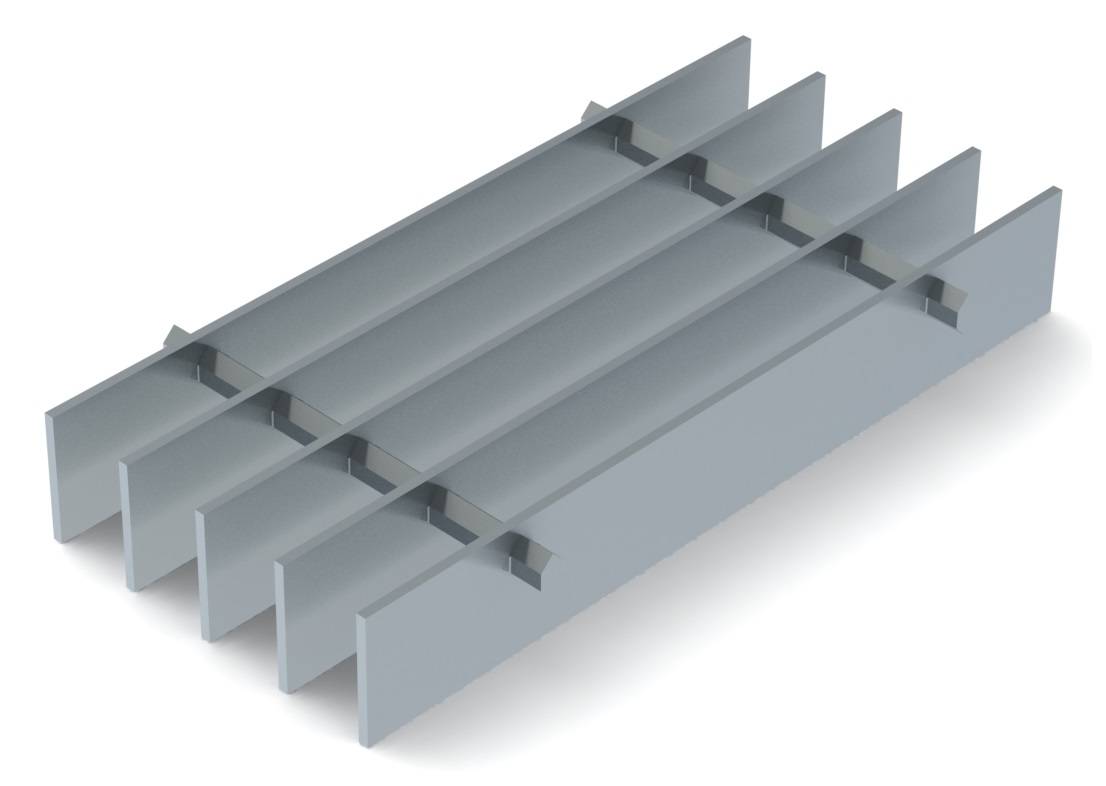

Aluminium open grille providing a versatile metal grating design that delivers excellent performance in a multitude of applications.
The flat bar system provides a lightweight, economical solution. It is available in two standard thicknesses but can be application engineered to meet bespoke requirements.
It is an ecologically friendly product that is also lightweight yet extremely strong. Its modular connection system requires no welding for assembly on site.
Features and benefits:
- Lightweight.
- Environmentally friendly - 100% recyclable.
- Maintenance free.
- Aesthetically pleasing.
- Non-toxic - inert material.
- Non-combustible.
- Corrosion-free.
- Includes a lifetime guarantee.
Applications:
Especially suited for screening applications.
| Features | Strong and durable, maintenance free, fireproof, eco friendly, solar protection, easy to install |
| Material | Aluminium alloy |
| WarrantyDescription | Lifetime guarantee |
| Uniclass 2015 |
| Product Reference | Flat Bar Decking/ Grilles |
| Bar thickness | 3.2 mm27 mm spacing. 4.8 mm25.4 mm spacing. |
| Profile depth | 19 mmFor 4.8 mm thickness only. 25 mm32 mm38 mm51 mm57 mm63 mm89 mmFor 3.2 mm thickness only. |
| Finish/ Colour | MillStandard. Powder coatedInsert colour requirement. Anodized |
| NEACO Fixing Clamps | Not requiredRequired |
| Standard product features | Material: Aluminium alloy (6063 T4 and T6). |
| Platform | Compatible | Version | Certified to |
|---|---|---|---|
 IFC | - | 1 | 2.1 |
 Revit | Revit 2017 | 1 | 2.1 |
