Application

For use on internal linings, broad wall and ceilings.

Description

Johnstone’s Flame Retardant Intumescent Upgrade System Acrylic Eggshell is a high quality hard wearing product for use as part of the Johnstone’s Flame Retardant Intumescent Upgrade System. A system which successfully upgrades a Class 4 ‘Blue Board’ substrate to Class 0, protecting against the spread of flame. This product should only be used as part of a written specification by PPG Architectural Coatings UK Limited.


Features and benefits:

  • Water based.
  • Low odour.
  • Quick drying.
  • Low VOC content: 0.30–7.99%.
  • Recoatable after four hours minimum and a maximum of seven days.

General information

Color

Other

Guidance for specification option:

Available in 7,000 colours (pastel colours only).

Finish

Eggshell

Material

Water-based

Shape

Formless

Length

Bespoke

Width

Bespoke

Height

Bespoke

Uniclass

Pr_35_31_68_29 Flame-retardant coatingsPrimary

CAWS

M60/172 Flame-retardant coating system

M60/19 Flame-retardant coatings

M60/175 Protective coating

Specification data - Flame-retardant coatings

Reaction to fire rating (indicative)

Upgrades a Class 4 ‘Blue Board’ substrate to Class 0.

Guidance for specification option:

Protecting against the spread of flame.

Solvent

Water.

VOC content (maximum)

0.30–7.99%.

Opacity

Opaque.

Colour

Guidance for specification option:

Available in 7,000 colours (pastel colours only). Consult manufacturer and insert requirements.

Finish

Eggshell.

Other features

Low odour. Quick drying.

Type

Water based.

Coverage

12 m²/L.

Guidance for specification option:

Johnstone’s Flame Retardant Intumescent Upgrade System Acrylic Eggshell should cover 12 m²/L. This coverage should not be exceeded as it complies with the Johnstone’s Class 0 Flame System fire testing report.

Drying time

Four hours.

Guidance for specification option:

Recoatable after four hours minimum and a maximum of seven days.

Volume solids

45%.

Film thickness

Dry: 33 μm Wet: 83 μm

Standard

BSI Kitemark BS 476-6 and -7, BSI Kitemark ISO 11998 Class 1 Scrub Resistance.

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
IFC
-

5

Revit

Revit 2017

5

Literature

Johnstone's Voice of Colour - Colour Card

Johnstone's Voice of Colour - Colour Card

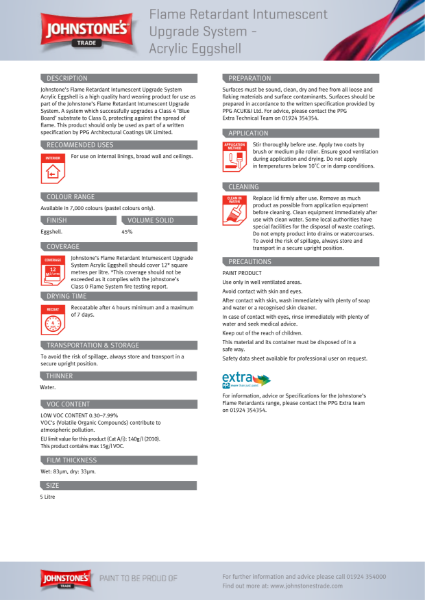

Flame Retardant Intumescent Upgrade System - Acrylic Eggshell

Flame Retardant Intumescent Upgrade System - Acrylic Eggshell

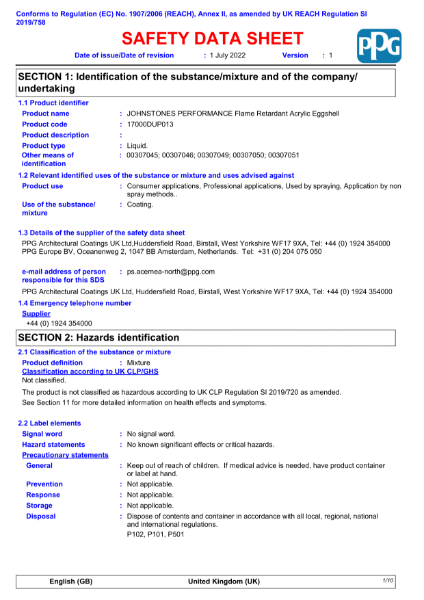

Flame Retardant Intumescent Upgrade System - Acrylic Eggshell: Safety Datasheet
