Flame-Free Reinforced Bituminous Membrane (Felt) Roofing System - IKO ULTRA Stick - Built-up Flat Roofing System
Verified by manufacturer 2 months ago
ISO 45001 Health and Safety Management
Certificate type
ISO 9001 Quality Management
Certificate type
BBA Agrément Certificate
Certificate type
Self-adhesive built-up roof waterproofing system.
Application
This system must be applied by an IKO approved installer. All work must be undertaken in accordance with the requirements of the specific information provided in the issued IKO specification document (or guidance documents where applicable).
Description

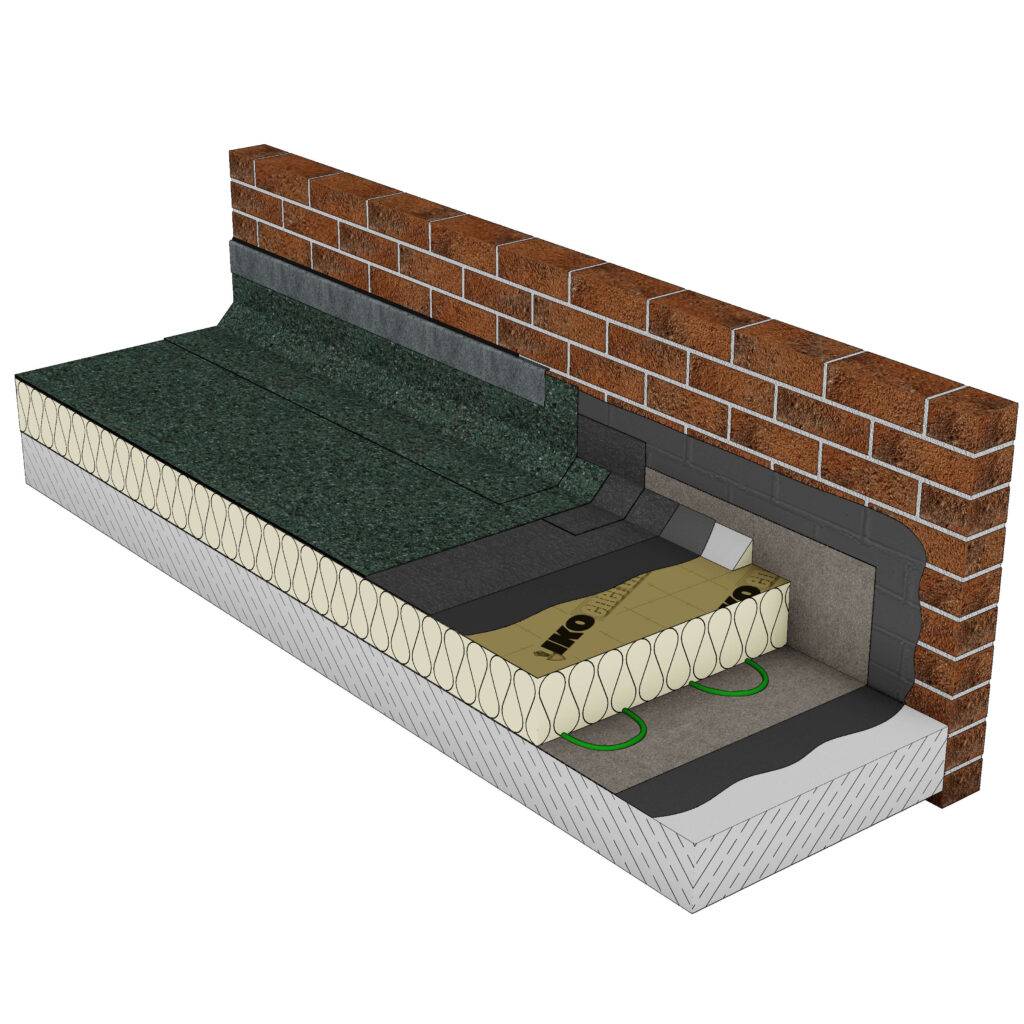

IKO ULTRA Stick systems are high-performance, reinforced, and flame-free roofing systems backed with a 20-year guarantee. The principal thermal insulation is placed above the structural deck, but beneath the waterproofing system. These systems have been tested under ENV1187 and have been classified as BROOF(t4) in accordance with BS EN 13501-5: 2005 fire classification.
Features and benefits:
- Only installed by an IKO approved contractor.
- Classified BROOF(t4) in accordance with BS EN 13501-5: 2005 fire classification. Enables unrestricted use within Part B4 of the Approved Documents of the Building Regulations (tested under ENV1187).
- Easy installation – self-adhesive/heat welding. No gas torches or hot bitumen required.
- High strength – tough polyester-based membrane.
- SBS elastomeric bitumen coating (low temperature flexibility -15°C).
- Comprehensive guarantees available covering materials, workmanship, and design.
- Backed with a 20 year guarantee.
General information
Color | Black Brown Green |
Finish | Mineral |
Material | Bitumen Polyester |
Length | Bespoke |
Width | Bespoke |
Warranty description | 20 year |
Uniclass | |
CAWS | J41/110 Built-up reinforced bitumen membrane warm deck roof covering J41/10 Reinforced bitumen membrane warm deck roof covering |
Product range |
Specification data - Reinforced bitumen membrane warm roof covering systems
Preparation | |
Horizontal work | IKOpro Bonding Agent.Guidance for specification option: IKOpro Systems Bonding Agent (black) is a specially formulated primer. Enhancing the properties of self- adhesive bitumen roofing membranes, it promotes strong bonds even at temperatures as low as 5°C. S-A membranes only. IKOpro Sprayfast MPP.Guidance for specification option: KOpro Sprayfast MPP (Black, Multipurpose Primer) is a specially formulated high performance bonding primer. It allows the speed of application of the bonding primer to be five times faster than conventional bitumen primers, promoting strong bonds at temperatures as low as 5°C. For self adhesive and torch applied bitumen membranes. |
Skirtings and vertical work | IKOpro Bonding Agent.Guidance for specification option: IKOpro Systems Bonding Agent (black) is a specially formulated primer. Enhancing the properties of self- adhesive bitumen roofing membranes, it promotes strong bonds even at temperatures as low as 5°C. S-A membranes only. IKOpro Sprayfast MPP.Guidance for specification option: KOpro Sprayfast MPP (Black, Multipurpose Primer) is a specially formulated high performance bonding primer. It allows the speed of application of the bonding primer to be five times faster than conventional bitumen primers, promoting strong bonds at temperatures as low as 5°C. For self adhesive and torch applied bitumen membranes. |
Air and vapour control layer | |
Type | IKO Ultra S-A Air and Vapour Control Layer.Guidance for specification option: Self adhesive for combustible substrates S-A VCL (Self-Adhesive) is a high performance vapour barrier for use in adhered IKO Polymeric systems. It is composed of a polyester reinforced aluminium core, coated with a rubber modified, self-adhesive bitumen coating. The membrane is protected on the underside with a release film backing and coated on the top surface with a fine mineral finish. A selvedge of 75mm width, protected with release film, provides a quick means of completing side laps. |
Attachment | Fully bonded. |
Insulation | |
Type | IKO enertherm Gold Insulation, 2400 x 1200 mm.Guidance for specification option: Thickness: 30, 50, 60, 80, 100, 120, 140, 150 mm. Consult literature and insert requirements. IKO enertherm Gold Insulation, 1200 x 1200 mm.Guidance for specification option: Thickness: 30, 40, 50, 70, 80, 100, 120,140 mm. Consult literature and insert requirements. IKO enertherm MW, 60 mm thickness.Guidance for specification option: A dual-density stone wool insulation board. It is used for the thermal insulation in a variety of warm flat roofing system applications where a non-combustible and/ or acoustic insulation solution is required. Width: 1200 mm. IKO enertherm MW, 120 mm thickness.Manufacturer guidanceIKO enertherm GOLD is a 100 % CFC, HCFC or HFC-free insulation board with a rigid polyisocyanurate foam core, clad on both sides with a multi-layer gastight aluminium complex. This high-quality rooftop insulation consists of no fewer than seven layers, combined into a single complex. It is tested under extreme conditions in respect of water absorption, mechanical properties, corrosion resistance and emissivity. |
Fixing | IKOpro PU bonding adhesive.IKOpro Sprayfast IBA. |
Waterproof covering | |
First layer | |
Type | IKO Ultra T-F Underlay.Guidance for specification option: IKO Systems Torch-Free (T-F) Underlay is a black polyester reinforced bitumen membrane, used as an underlay within a built up roofing system; the membrane is coated on both sides with a self-adhesive bitumen SBS elastomeric coating. The upper surface is protected with a protective film that facilitates rapid bonding of the waterproofing layers. The self-adhesive coating underside is protected by a release film. Size: 16 x 1 m. IKO Ultra T-F DETAILING Underlay.Guidance for specification option: IKO Systems Torch-Free (T-F) Detailing Underlay is a black polyester reinforced bitumen membrane, used as an underlay within a built up roofing system; the membrane is coated on both sides with a self-adhesive bitumen SBS elastomeric coating. The upper surface is protected with a protective film that facilitates rapid bonding of the waterproofing layers. The self-adhesive coating underside is protected by a release film. Size: 16 x 1 m. |
Attachment | Partially bonded self-adhesive with hot air welded laps. |
Top layer | |
Type | IKO ULTRA STICK Capsheet, Black.IKO ULTRA STICK Capsheet, Brown.IKO ULTRA STICK Capsheet, Green.Manufacturer guidanceIKO ULTRA STICK (was IKO Safestick) high performance self-adhesive bituminous roofing system has been developed specifically for the professional installer and for use where traditional hot application techniques are inappropriate or prohibited by client requirement. The combination of high tensile polyester bases and SBS elastomeric bitumen coatings, ensures all the tried and trusted benefits of a high performance multi-layer built-up system are achieved with a totally fire safe application technique. IKO ULTRA STICK has been tested under ENV1187 and has been classified as BROOF(t4) in accordance with BS EN 13501-5: 2005 fire classification of construction products and building elements – classification using data from external fire exposure to roof tests. This is made possible with the use of IKO Prevent Graphite Fire Wall Technology with self-extinguishing properties. Size: 8 x 1 m. |
Attachment | Fully bonded self-adhesive with hot air welded laps. |
Detail work | |
Flashings | IKOflash lead-free flashing. |
Skirtings and upstands | IKO Ultra T-F DETAILING Underlay.Guidance for specification option: IKO Systems Torch-Free (T-F) Detailing Underlay is a black polyester reinforced bitumen membrane, used as an underlay within a built up roofing system; the membrane is coated on both sides with a self-adhesive bitumen SBS elastomeric coating. The upper surface is protected with a protective film that facilitates rapid bonding of the waterproofing layers. The self-adhesive coating underside is protected by a release film. Size: 16 x 1 m. |
Weight | 3.81 kg/m². |
Roll weight | 30.5 kg. |
Form | Roll. |
Carriers | Polyester. |
Third-party certification | The product carries a Declaration of Performance Certificate, Agrement Certificate 91/2671, and is UK Conformity Assessed. |
Sustainability data
Material | Bitumen Polyester |
Third party certifications
ISO 45001 Health and Safety Management
IKO PLC ISO 45001 OHS Certificate
ISO 9001 Quality Management
IKO PLC ISO 9001 Certificate
BBA Agrément Certificate
BBA Certificate - IKO ULTRA Stick
Literature
Technical Data Sheet (TDS) - IKO ULTRA Stick Capsheet

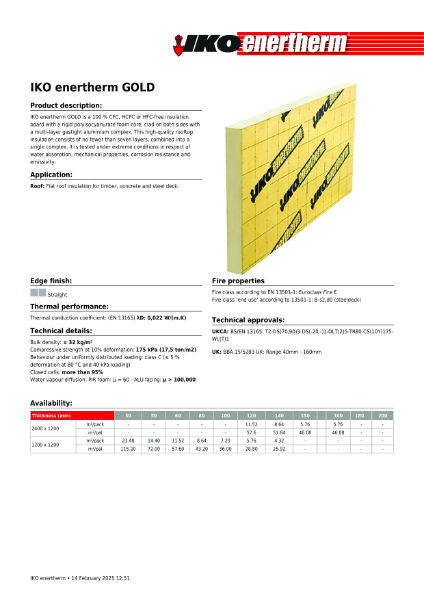

Technical Data Sheet (TDS) - IKO enertherm GOLD
Technical Data Sheet (TDS) - IKO enertherm MW Upstand Board
Technical Data Sheet (TDS) - IKOpro Bonding Agent
Technical Data Sheet (TDS) - IKOpro Sprayfast MPP
Technical Data Sheet (TDS) - IKOpro PU Insulation Adhesive
Technical Data Sheet (TDS) - IKOpro Sprayfast IBA
Technical Data Sheet (TDS) - IKO ULTRA Self-Adhesive Vapour Control Layer (VCL)
Technical Data Sheet (TDS) - IKO ULTRA Torch-Free Underlays
Brochure - IKO PLC (UK) ESG Report
Case studies
Dorset House, Bournemouth University, Poole
