Flagon EP/PV-F

Application

Provides total adherence on horizontal roof surfaces for:

  • Gluing on insulating panels.
  • Gluing on concrete ceilings.
  • Gluing on existing waterproofing covering.

Description

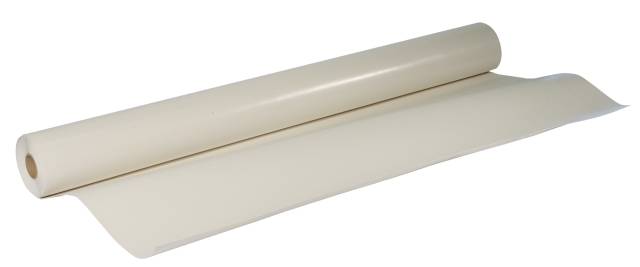

Synthetic waterproofing membrane composed of modified thermoplastic polyolefin (TPO) with a glass fibre reinforcement. The lower surface is finished with a polyester fleece.

Features:

  • Weatherproof and UV resistant.
  • Dimensional stable.
  • Good mechanical and puncturing resistance.
  • High flexibility at low temperatures.
  • CE marked to BS EN 13956.

Applications:

Provides total adherence on horizontal roof surfaces for:

  • Gluing on insulating panels.
  • Gluing on concrete ceilings.
  • Gluing on existing waterproofing covering.

General information

Features

Weatherproof and UV resistant

Dimensional stable

Good mechanical and puncturing resistance

High flexibility at low temperatures

CE marked to BS EN 13956

Material

TPO (thermoplastic olefin) obtained by co-extrusion, with glass fibre reinforcement and a 200 g/m² polyester fleece backing

Uniclass 2015

Pr_25_57_51_66 Polymeric membranesPrimary

CAWS

J42/110 Warm deck roof covering

J42/120 Inverted roof covering

J42/130 Cold deck roof covering

J42/400 Waterproof membrane

Product range

Single ply polymeric membranes

Specification data - Polymeric membranes

Product Reference

Flagon EP/PV-F

Thickness

1.2 mm

1.35 kg/m².

1.5 mm

1.7 kg/m².

1.8 mm

2 kg/m².

2.0 mm

2.15 kg/m².

Colour

Lead grey

Sand grey

Standard product features

Material:

TPO (thermoplastic olefin) obtained by co-extrusion, with glass fibre reinforcement and a 200 g/m² polyester fleece backing.

Width:

2.1 m.

Technical properties:

  • Tensile strength (to BS EN 12311-2): 1.2 mm: ≥550 N/ 50 mm; 1.5 mm: ≥650 N/ 50 mm; 1.8 mm: ≥800 N/ 50 mm; 2 mm: ≥850 N/ 50 mm.
  • Elongation to break (to BS EN 12311-2): ≥350%.
  • Tear resistance (to BS EN 12310-2): 1.2 mm: ≥200 N; 1.5 mm: ≥250 N; 1.8 mm: ≥300 N; 2 mm: ≥340 N.
  • Impact resistance (to BS EN 12691): 1.2 mm: ≥450 mm; 1.5 mm: ≥800 mm; 1.8 mm: ≥900 mm; 2 mm: ≥1250 mm.
  • Foldability at low temperature (to BS EN 495-5): ≤ -40°C.
  • Hydrostatic pressure resistance (after six hours at 0.5 MPa, to BS EN 1928 method B): Waterproof.
  • Dimensional stability (after six hours at 80°C, to BS EN 1107-2): ≤±0.1.
  • Resistance to artificial weathering (to BS EN 1297): No surface cracking.
  • Static punching resistance (to BS EN 12316): ≥20 kg.
