Fixed-Position Tilt Mirror B-293

Name: Fixed-Position Tilt Mirror B-293
Brand: Bobrick Washroom Equipment Ltd
SKU: mLAb8vxA64hWZkvXQgVUxQ

Verified by manufacturer 11 months ago

B-293 1830

Wall mounted, fixed tilt mirror

Jump to:

Application

Wall mounted.

Features and benefits:

Provides visibility for wheelchair patients.
Frame is Type 304 stainless steel, satin finish.
Bevelled edges of frame hug mirror; provides gapless fit for improved appearance, and safety when cleaning mirror.
No. 1 quality, 6 mm glass mirror; warrantied against silver spoilage for 15 years.
Mirror extends 100 mm from wall at top and tapers to 25 mm at bottom.
Patented.

Color	Silver
Finish	Satin
Material	Stainless steel
Shape	Rectangle
Warranty description	15 year Guidance for specification option: Warranted against silver spoilage from the date of purchase for the periods set forth.

Uniclass	Pr_40_30_53_30 Framed glass mirrorsPrimary Pr_40_30_53_06 Bathroom mirrors
CAWS	N10/75 Framed mirrors N10/275 Framed mirrors L40/550 Glass mirrors N13/438 Mirrors N10/270 Mirrors

Dimensions	460 x 760 mm.
Thickness	6 mm.
Finish	Silvered to give maximum reflection, free from tarnishing, discoloration, scratches and other defects visible in the designed viewing conditions. Reflection undistorted.
Backing	Copper plated.
Frame	-
Material	Stainless steel.
Finish	Satin polished.
Colour	Natural.
Edges	-
Treatment	Polished.
Profile	Bevelled.

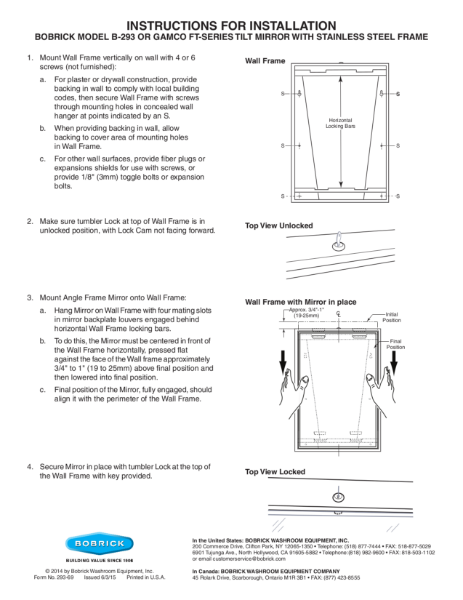

Provision for fixing	- Manufacturer guidance For complete installation instructions please follow 293-69 installation instruction sheet.
Execution	Installing mirrors.
