Fixed Multi-Panel Rooflight - Fixed
Verified by manufacturer 6 days ago

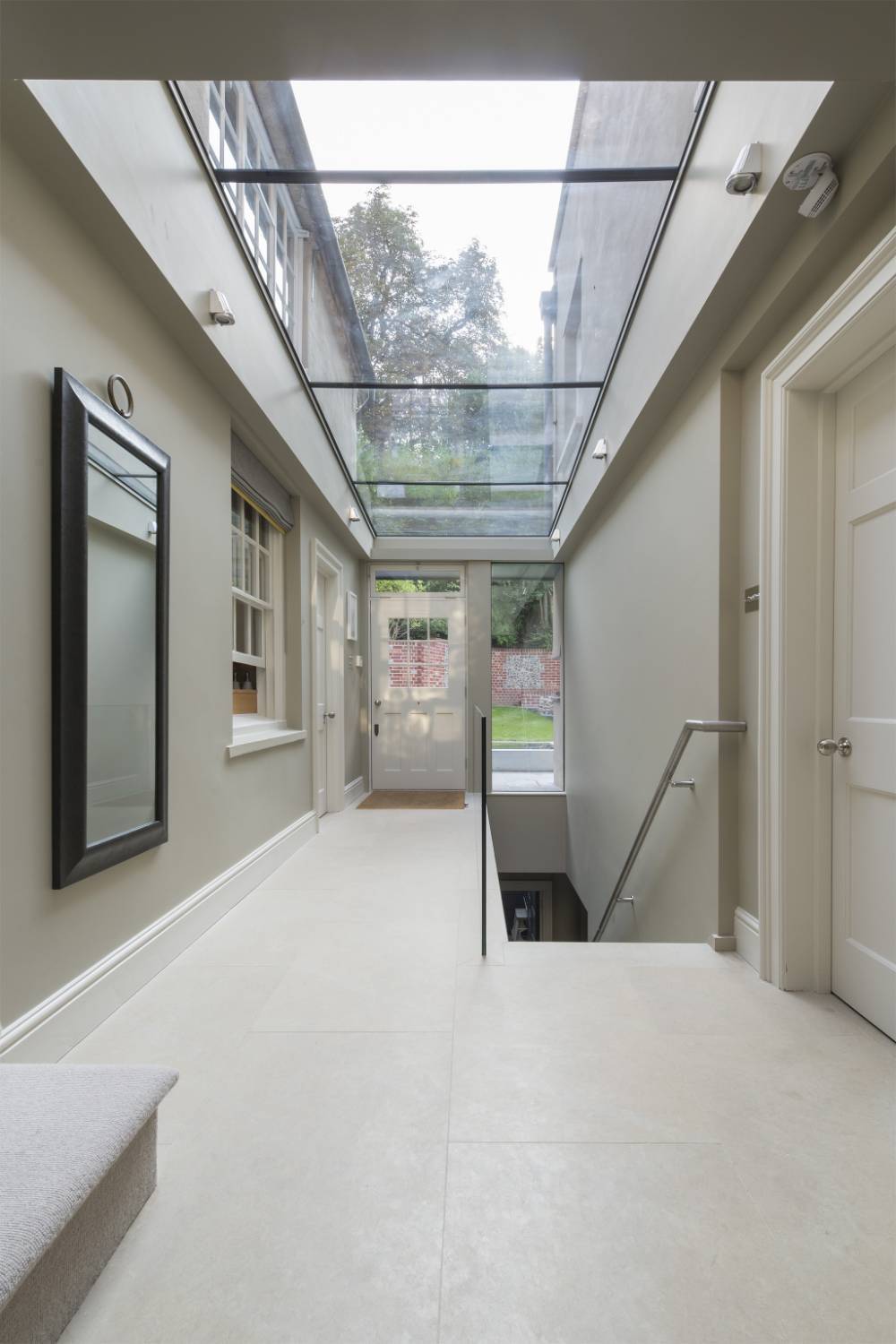

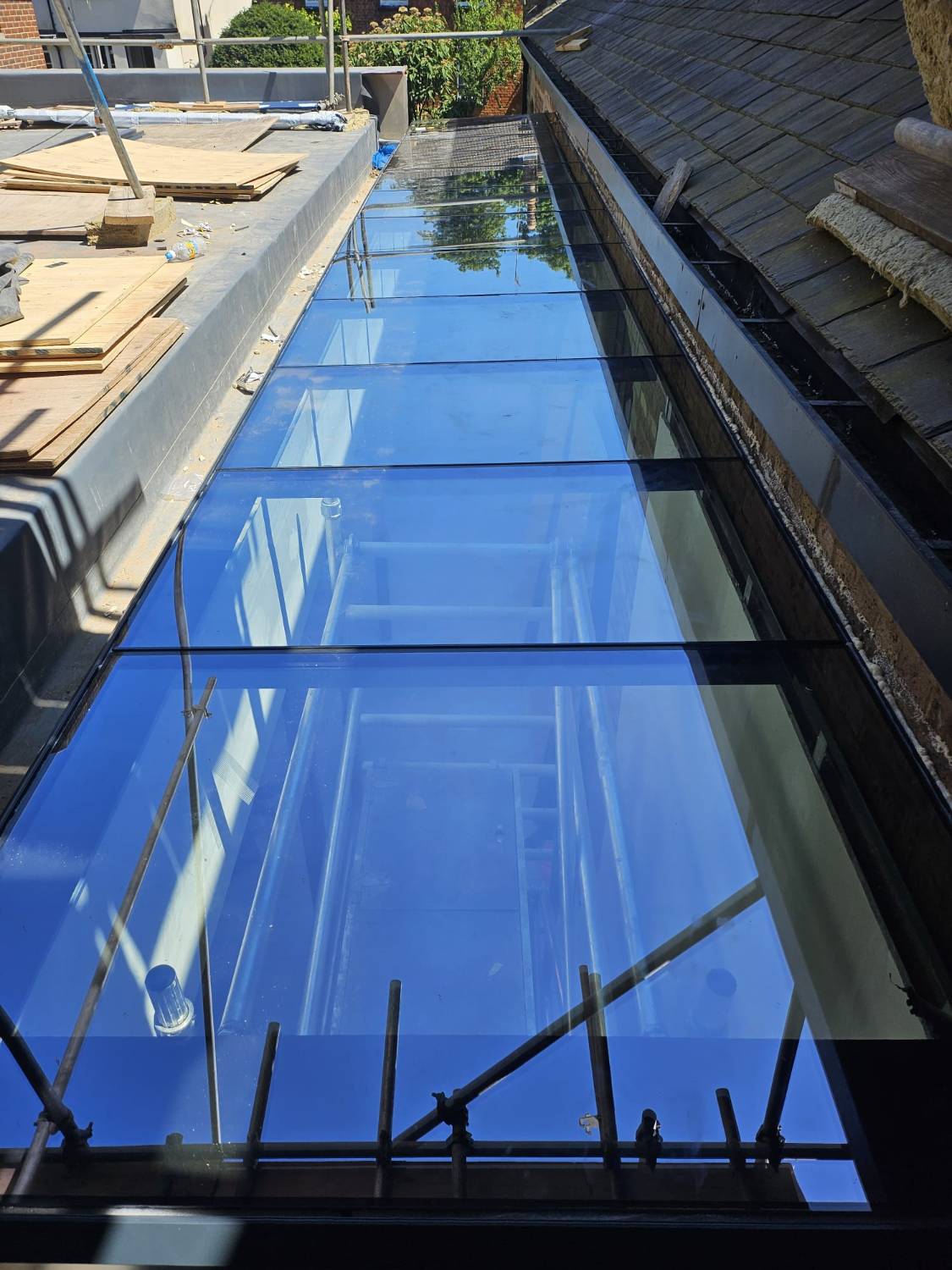

A multi-panel rooflight. Steel Rafter or Glass Beam Supports. can incorporate opening Sections. can be wall abutted.
Application
Suitable for use in:
- All nominally flat roof constructions and coverings.
- Green and sedum roofs.
- Marine and coastal environments.
Description
A frameless multi-panel rooflight.
Features and benefits:
- Fully thermally broken.
- Polyester powder coating to a minimum of 60 µm.
- Stainless steel concealed fixings.
- Tested in accordance with Centre for Window and Cladding Technology (CWCT) standard.
- Upstand can be provided by the manufacturer, if required.
- Enhanced glazing specifications incorporating thermal, acoustic, security, light transmission, solar gain and decorative options are available, please contact manufacturer for details.
General information
Color | White Grey Other Beige Black Manufacturer guidanceAs per manufacturer and includes:
|
Finish | Powder-coated Manufacturer guidanceAs per manufacturer and includes polyester powder coated. |
Material | Aluminium Glass Steel |
Shape | Other Diamond Parallelogram Rhombus Square |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Warranty description | One year Ten year |
Uniclass | |
CAWS | L10/45 Rooflights L10/460 Rooflights |
Specification data - Framed rooflights
Classification data | |
Form | Manufacturer guidanceShapes are available on request. Consult manufacturer and insert requirements. |
Size | Manufacturer guidanceMade to order; consult manufacturer for more details and insert requirements. |
Frame | |
Material | Extruded aluminium. Guidance for specification option: 6063-T6. Manufacturer guidanceDifferent material specifications stainless steel cladding etc. are available; consult manufacturer for more information. |
Finish | |
Coating | Polyester powder coated. |
Colour | Anodized. External RAL 7015 matt. Internal RAL 9010 matt. External RAL 7016 matt. External RAL 9005 matt. Grey. White. Other. Manufacturer guidanceAny RAL or BS colour can be specified, insert requirements. |
Film thickness (minimum) | 60 micrometres. |
Glazing or infill | |
Type | Not required. Toughened and laminate glass. Guidance for specification option:
SGL. Manufacturer guidanceEnhanced glazing specifications incorporating thermal, acoustic, security, light transmission, solar gain and decorative options are available; consult manufacturer for more information. |
Accessories | Not required. Upstand. Guidance for specification option: To suit an overall finished upstand of 100 mm. |
Thermal break | Required. |
Fixings | Stainless steel. Manufacturer guidanceConcealed fixings. |
Water resistance | 1050 Pa. Manufacturer guidanceAir and water resistance. |
Wind resistance | 2.0 kN/m². |
U-value | 1.1 W/m²K. Manufacturer guidanceGlass centre pane U-value. |
Seals | Structural and weather seal – Low modulus silicone sealant. PVC coated – UV and water resistant. |
Spacer | Warm edge spacer; 18 mm; 90% argon cavity. |
Sustainability data
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Material | Aluminium Glass Steel |
Recyclability | Glass & aluminum widely recycled |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 75 % |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
