Application

Suitable for use in:

  • All nominally flat roof constructions and coverings.
  • Green or sedum roofs.
  • Marine and coastal environments.


Description

Roof window giving an extra point of access to roof space.


Features and benefits:

  • Fully thermally broken.
  • Polyester powder coating to a minimum of 60 µm.
  • Stainless steel concealed fixings.
  • Tested in accordance with Centre for Window and Cladding Technology (CWCT) standard.
  • Upstand can be provided by the manufacturer, if required.
  • Enhanced glazing specifications incorporating anti slip, thermal, acoustic, security, light transmission, solar gain and decorative options are available, please contact manufacturer for details.

General information

Color

White

Grey

Other

Beige

Black

Show more

Manufacturer guidance

As per manufacturer and includes:

  • Internal – RAL 9010 Mat.
  • External – RAL 7015 Mat.
  • Any RAL or BS colour can be specified.
  • Anodised options.

Finish

Powder-coated

Manufacturer guidance

As per manufacturer and includes polyester powder coated.

Material

Aluminium

Glass

Shape

Square

Rectangle

Other

Length

Bespoke

Width

1000 mm

1200 mm

1400 mm

1700 mm

Bespoke

Height

800 mm

1000 mm

1200 mm

Bespoke

Warranty description

One year

Ten year

Uniclass

Pr_30_59_72_31 Framed rooflightsPrimary

CAWS

L10/45 Rooflights

L10/460 Rooflights

SKU Code

AHR

Specification data - Framed rooflights

Classification data

Form

Square.
Rectangular.
Other.

Manufacturer guidance

Non-standard shapes are available on request; consult manufacturer for more information.

Size

-

Manufacturer guidance

Made to order; consult manufacturer for more details and insert requirements.

Frame

-

Material

Extruded aluminium.

Guidance for specification option:

6063-T6.

Finish

-

Coating

Polyester powder coated.

Colour

Anodized.
External RAL 7015 Mat.
Internal RAL 9010 Mat.
External RAL 7016 matt.
External RAL 9005 matt.
Grey.
White.
Other.

Manufacturer guidance

Any RAL or BS colour can be specified, insert requirements.


Film thickness (minimum)

60 micrometres.

Glazing or infill

-

Type

Toughened and laminate glass.

Guidance for specification option:

  • 4 mm toughened outer.
  • 6.8 mm laminate low-e inner.

Non glazed fillings.

Guidance for specification option:

Insulated panels are available on request; consult manufacturer for more information.

SGP.

Manufacturer guidance

Enhanced glazing specifications incorporating thermal, acoustic, security, light transmission, solar gain and decorative options are available; consult manufacturer for more information.

Operation

-

Type

Manual.
Powered, electric.

Accessories

Not required.
Upstand.

Guidance for specification option:

To suit an overall finished upstand of 100 mm in width.

Thermal break

Required.

Water resistance

1050 Pa.

Wind resistance

2.0 kN/m².

Fixings

Stainless steel.

Manufacturer guidance

Concealed fixings.

Spacer

Warm edge spacer; 22 mm; 90% argon cavity.

U-value

1.1 W/m²K.

Manufacturer guidance

Glass centre pane U-value.

Seals

Structural and weather seal – Low modulus silicone sealant.
PVC coated – UV and water resistant.

Sustainability data

Contains Red List materials

No

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom

Material

Aluminium
Glass

Recyclability

Glass & aluminum widely recycled

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

75 %

Literature

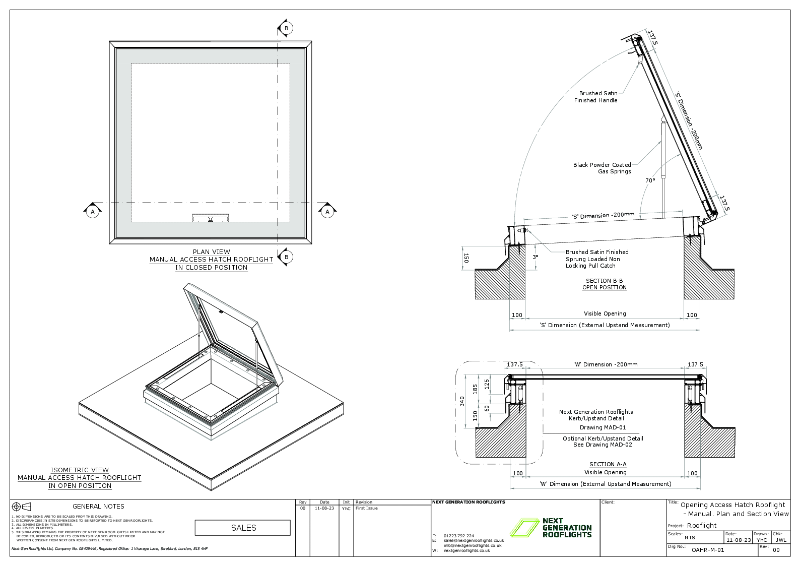

Opening Access Hatch Rooflight - Manual
