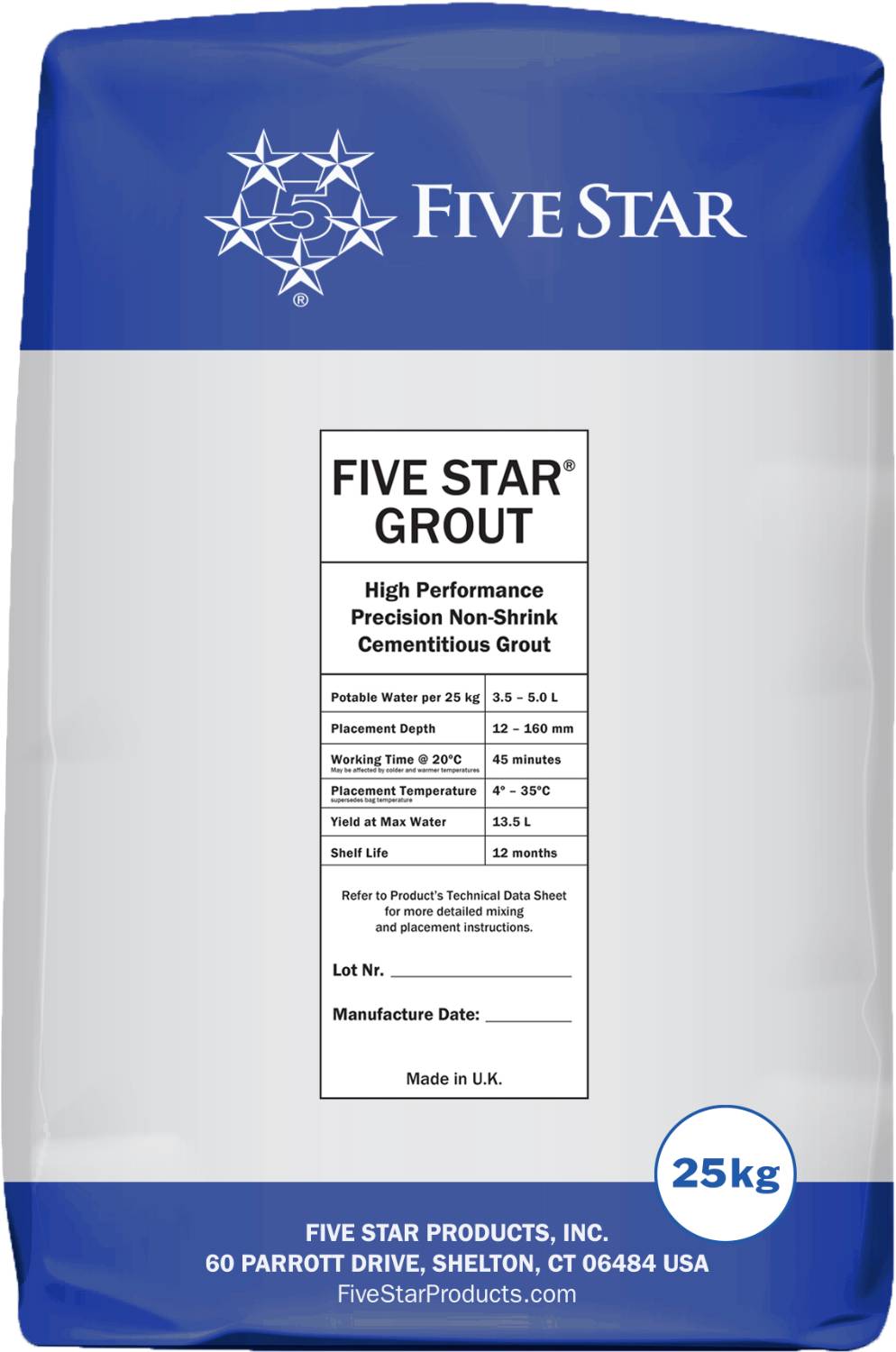

Five Star® Grout - Cementitious Grout

Verified by manufacturer 18 days ago

Five Star Products Third party certifications:
  • ISO 9001 Quality Management

    Certificate type

Cementitious grout for static machinery/equipment baseplates to maintain precision alignment. Can also be used for stanchion/column support.

Jump to:
+44 07799 714008 Website

Application

  • Precision grouting of machinery and equipment baseplates to maintain precision alignment.
  • Non-shrink grouting of structural steel and precast concrete.
  • Support of tanks and vessels.
  • Grouting of stanchions/columns.
  • Gap thickness of 12-160 mm.

Description

A cement-based, nonmetallic, non-shrink grout for supporting machinery and equipment. It is formulated with Air Release technology that combines high performance with the greatest reliability. Five Star® Grout meets the performance requirements of EN 1504-3 (Class R4) and complies with UK Specification for Highway Works Volume 1, Clause 2601. When tested in accordance with ASTM C 827, Five Star® Grout exhibits positive expansion. Five Star® Grout meets the performance requirements of ASTM C 1107-02 Grades A, B and C, ASTM C 1107-20, and CRD-C 621-93 specifications for non-shrink grout over a wide temperature range of 4°C - 35°C.


Features and benefits:

  • Air Release technology equals: Controlled Expansion - Plastic State; Dimensional Stability - Hardened State.
  • 95% Effective Bearing Area (EBA) is typically achieved following proper grouting procedures.
  • Provides placement versatility: pour, pump or dry pack.
  • 45 minute working time.
  • Permanent support for machinery requiring precision alignment.
  • Does not contain metallic gas generating additives, such as aluminum powder.
  • Non-shrink from the time of placement.
  • High early and ultimate compressive strengths.
  • Gap thickness of 12-160 mm.

General information

Color

Grey

Finish

Cement

Material

Cementitious

Shape

Other

Warranty description

Other

Uniclass

Pr_20_31_53_52 Metal anchor and fixings groutsPrimary

CAWS

G10/310 Anchorages to concrete

G20/715 Bonded anchors

E42/330 Anchor bolts

C42/310 Repair mortar

C41/530 Proprietary mortar repairs

Specification data - Metal anchor and fixings grouts

Standard

To BS EN 1504-3.

Grout type

Cement-based.

Identity requirements

To BE EN 1504-3.

CompressiveStrength

28 MPa (1 day), 53 MPa (7 days), 62 MPa (28 days).

Chloride Ion content

0.01%.

Bond strength

2.3 MPa.

Modulus of elasticity

23 GPa.

Thermal compatibility

Pass.

Fire classification

Euroclass A1.

Carbonation resistance

dk ≤ concrete control (class R4).

Working time

45 minutes at 20°C.

Sustainability data

Contains Red List materials

No

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom

Third party certifications

ISO 9001 Quality Management

ISO 9001 Quality Management

ISO 9001:2015
