FirePro® Pipe Wrap Roll - Fire penetration seal
Verified by manufacturer 2 months ago
Intumescent insulation roll for fire stopping applications to pipework penetrations.
Application

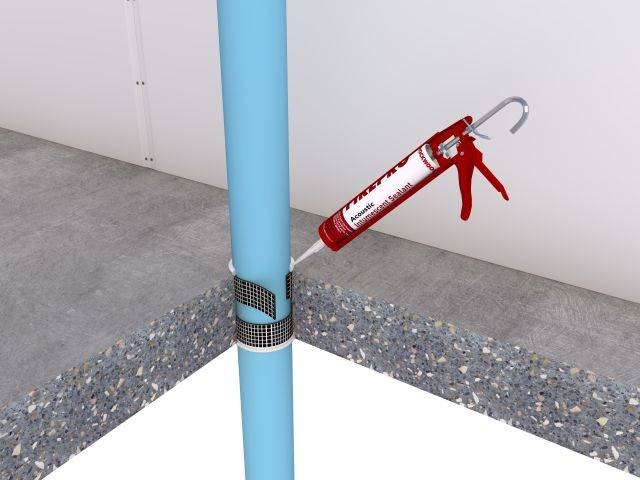

When installing pipework through fire rated walls and floors, core holes are often larger than the service to allow easy installation. These gaps formed around services provide a ready route for fire spread unless they are effectively fire stopped and sealed. The product is intended to be wrapped around the outside diameter of combustible pipework or the outside diameter of insulation on pipework and is secured by means of the integral self-adhesive strip. Under fire conditions, the intumescent material expands against the structure and fills the void left by the burnt-out plastic and/or insulation.
Description
Intumescent Pipe Wrap Roll has been designed as an additional solution to the Firestop Pipe Collars and Intumescent Pipe Wrap range, giving greater flexibility and choice. The product is tested to provide fire stopping to a variety of insulated and uninsulated plastic and metallic pipes through fire rated walls and floors.
Part of the popular FirePro® range, Pipe Wrap Roll is an economical solution for safeguarding pipe systems. It protects both plastic and insulated metallic pipework in both floors and walls, supplied in a 25 m long roll in a box dispenser. Another versatile product, this product is 40 mm wide and 2 mm thick, and is able to fit around pipes up to 200 mm (outside diameter).
Features and benefits:
- Simple to install.
- Water resistant.
- Maintenance free.
- Supplied as a 25 m long roll in box dispenser.
- Available to suit pipes up to 200 mm outside diameter.
- Comprehensively tested.
- Available from stock.
General information
Color | Black |
Finish | Matt |
Material | Graphite Intumescent |
Shape | Rectangle |
Length | 25000 mm |
Width | 40 mm |
Height | 2 mm |
Uniclass | |
CAWS | P12/330 Flexible intumescent gap sealer P12/43 Pipe collar P12/370 Pipe collar P12/35 Flexible intumescent gap sealer |
Specification data - Pipe sleeves
Form | Manufacturer's standard. |
Fire performance | To BS 476-20, up to EI240. |
Density | 1.3 kg/m³. |
Length | 25 mm. |
Width | 40 mm. |
Thickness | 2 mm. |
Sustainability data
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Material | Graphite Intumescent |
Recyclability | Can be recycled |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
