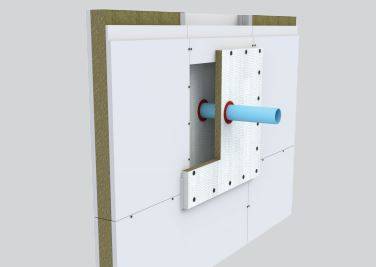

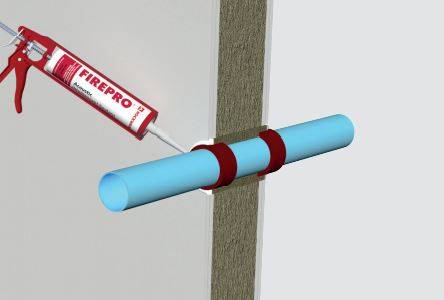

FirePro® Intumescent Pipe Wrap CE - Fire Penetration Seal

Verified by manufacturer 1 month ago

ROCKWOOL Ltd

Fire stop solution for plastic pipe penetrations.

Jump to:
BOS
+44 (0)1656 862621 Website

Application

  • Fire stopping plastic pipe penetrations in rigid/flexible walls and rigid floors.
  • Can be applied to PVC, UPVC, Polypropylene, PE and HDPE pipe materials.

Description

FirePro Intumescent Pipe Wraps CE are tested to EN 1366-3:2009 and CE marked to provide assurance where specified. They offer a a simple and more economical alternative to Firestop Pipe Collars CE, for fire stopping plastic pipework penetrations through fire rated walls and floors.


Pipe Wraps CE comprise layers of a graphite based intumescent sheet encapsulated in a polythene sheath, designed to seal service penetrations in apertures containing combustible plastic pipes. All Pipe Wraps CE are supplied in correct lengths to suit the pipe diameter. Intumescent Pipe Wraps CE are tested to plastic services penetrating flexible and rigid wall constructions, rigid floors and in Ablative Coated Batt seals. Pipe Wraps CE are tested with end capping configurations that cover U/C pipes.


Features and benefits:

  • Simple to install with no mechanical fixings required.
  • Available to suit pipe diameters up to 250 mm O.D.
  • Up to EI120 fire resistance.
  • Tested in conjunction with Ablative Coated Batt seals.
  • Maintenance free.
  • Dry system.
  • Water resistant.

General information

Color

Red

Finish

Film

Material

Graphite

Intumescent

Shape

Rectangle

Length

250 mm

Manufacturer guidance

To suit pipe diameters up to 250mm

Width

40 mm

Height

12 mm

Manufacturer guidance

Ranges from 2 - 12mm

Uniclass

Pr_65_52_61_86 Surface-mounted intumescent pipe collarsPrimary

CAWS

P12/370 Pipe collar

P12/43 Pipe collar

Specification data - Surface-mounted intumescent pipe collars

Sizes

250 mm.

Manufacturer guidance

Pipe diameter.

Fire performance

Up to EI120 fire resistance.

Width

40 mm.

Thickness

2–12 mm.

Guidance for specification option:

At 32—250 mm.

Density

1.2 g/cm³.

Expansion

20:1.

Application temperature

-5 to 40ºC.

Position

Surface mounted.

Sustainability data

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom

Material

Graphite

Intumescent

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
Revit
-

1

IFC
-

1
