Fireline 520 Fire Barrier System - Fire Barrier
Verified by manufacturer 4 months ago
Fire barrier system with +/- 50% seismic movement capacity. Pre-attached metal flanges and factory made male/female ends make protecting your building from spread of smoke and fire easier than ever.
Application
Can block smoke, flames and heat from small to large joint openings.
Applicable for the following joint widths:
- - 2hr, TM/IM - 102 mm to 610 mm.
- - 3hr, TM/IM - 102 mm to 610 mm.
- - 2hr/3hr, BM - 102 mm to 610 mm.
Description
Fire barriers are designed to block smoke, flames and heat from small to large joint openings. This helps contain the fire, providing more time for evacuation and arrival of help.
Features and benefits:
- Tested in accordance with: BS EN 1366-4 [2018] as well as UL 2079 and ULC-S115.

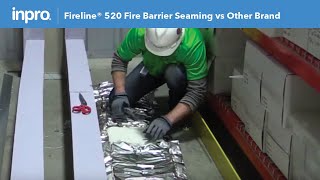

- Pre-attached flanges and factory made male to female splices ensure consistent installation without relying on Installer's skillset.
- Three flanges styles exist to provide optimal flexibility to design team to meet any project condition.
- Applicable to both floor and wall conditions.
- No fire caulk required at seams.
- Fireline Waterguard systems also available. This Industry unique waterproof system protects the fire blanket from the elements during construction and throughout the lifecycle of the building. Water reduces the typical blanket's effectiveness and can harbour mould growth.
Tested in accordance with:
- UL 2079.
- ULC-S115.
- BS EN 1366.4.
- BS 476 (2 and 3 hours).
General information
Material | Steel Guidance for specification option: Impervious stainless steel layering. Ceramic Guidance for specification option: Intumescent, ceramic textile. |
Shape | Other |
Length | 3000 mm |
Width | Bespoke |
Height | Bespoke |
Warranty description | Five year |
Uniclass | |
CAWS | P12/330 Flexible intumescent gap sealer M40/825 Strip movement joints M40/835 Metal section movement joints M40/80 Strip movement joints M41/445 Strip movement joints P12/35 Flexible intumescent gap sealer M13/395 Metal section movement joints M13/375 Strip movement joints M10/476 Metal section movement joints M41/465 Metal section movement joints M51/510 Edgings and cover strips |
Product range |
Specification data - Metal section movement joints
Joint width (nominal) | 100–500 mm. |
Edging | |
Material | Steel. |
Insert | |
Material | Fire blanket. |
Fixing | Bottom mounted. Inside (recessed) mounted. Top (surface) mounted. |
FireRating | To EN 1366-4 and BS 476, 120 and 180 minutes. |
Sustainability data
Contains Red List materials | No |
Country of material origin | United States |
Country of product manufacture | United States Guidance for specification option: And Italy. |
Material | Steel Guidance for specification option: Impervious stainless steel layering. Ceramic Guidance for specification option: Intumescent, ceramic textile. |
