FIREFLY Athena 60:60 Fire Barrier
Verified by manufacturer 2 months ago
IFCC
Certificate type
A lightweight, flexible fire barrier, fully certified 60 minutes on timber. FIREFLY™ATHENA 60:60 is designed to be installed as a two-layer fire barrier system.
Application
FIREFLY Athena 60:60 is designed to be installed as a two-layer fire barrier system, certified for use on timber to provide compartmentation of larger spaces. Exceeds the Fire Barrier requirements of Building Regulations: Approved Document B (Fire Safety) with 60 minutes Integrity and 60 minutes Insulation.
USE AREAS
FIREFLY Athena 60:60 is particularly suited for use as a certified fire barrier system on timber. Its unique construction and ease of handling and installation make it perfect for areas involving timber and restricted access / working space such as lofts and roof voids in Social Housing, Care Homes and Student Accommodation.
CERTIFICATION
Third Party Certified by IFCC. Certificate number: IFCC 1578
APPLICATION
Third Party Certified by IFCC. Certificate number: IFCC 1578
PROPERTIES
Description: Non-toxic, user-friendly, flexible, durable. Easy to manipulate and shape
Colour: White
Coating: A chemical treatment to optimise thermal properties and help prevent fibre migration
Min Thickness: 10mm
SPECIFICATIONS
Vertical: Exceeds 60 minutes integrity with 60 minutes insulation when tested to BS 476 parts 20/22: 1987
CLASSIFICATIONS
Tested to BS476 parts 6 and 7 – Pass (propagation and surface spread of flame)
DIMENSIONS AND PACKAGING
Width: 127cm
Roll Length: 6 linear metres
Roll Area: 7.62 sqm
Packed: Concertinaed and individually wrapped in polythene
Weight: 2.4kg/m2 minimum
Description
CONSTRUCTION

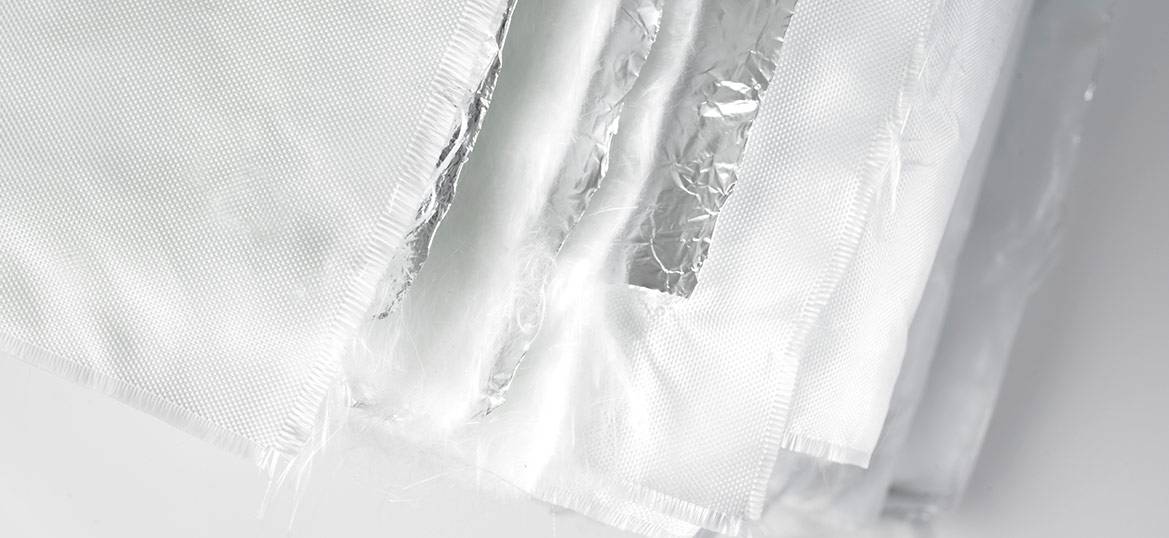

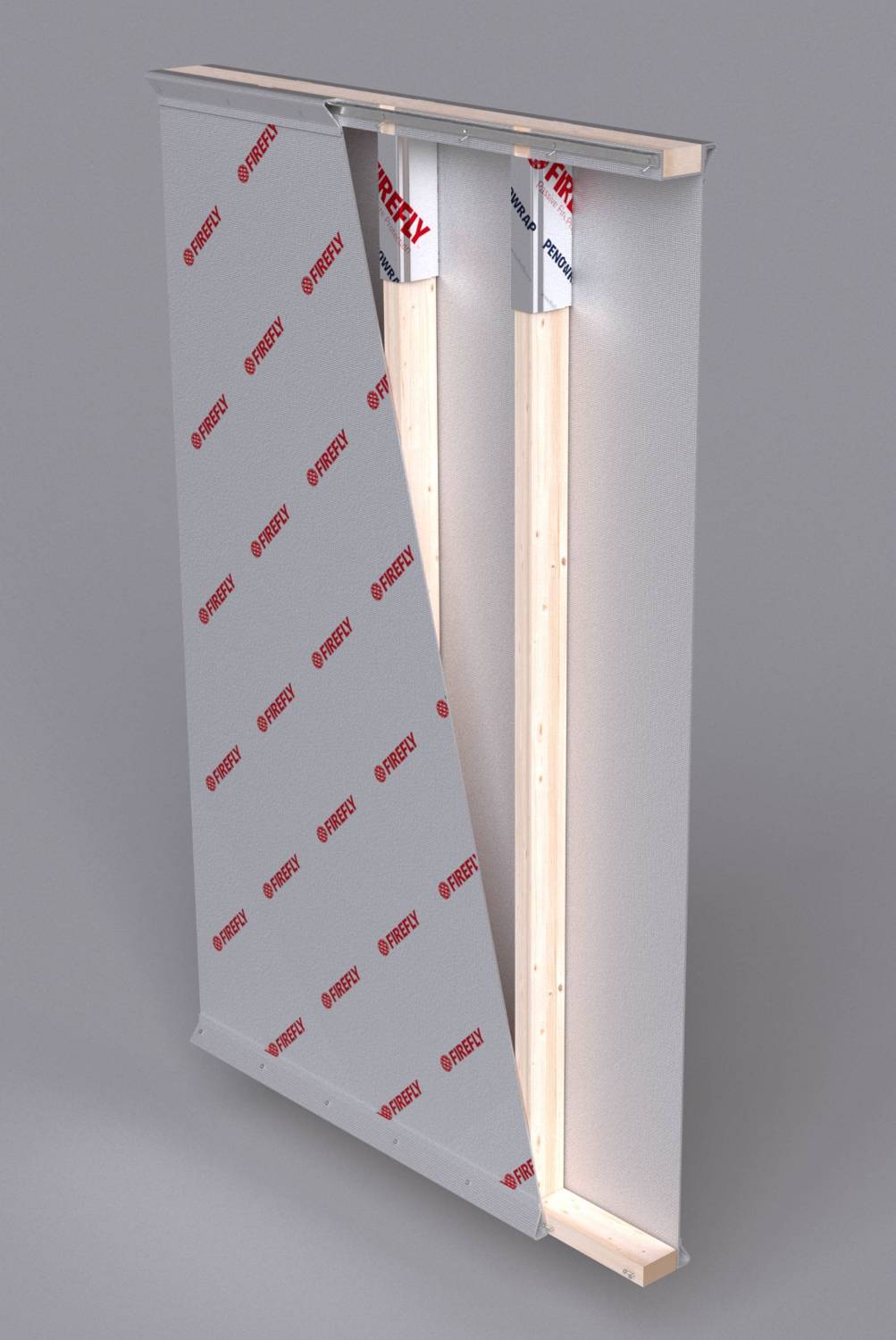

Manufactured using layers of woven and non woven glass fibre, specially treated with a proprietary coating to greatly increase fire resistance, and aluminium foil. The product is designed to be installed as a 2-layer system either side of timber, utilising other FIREFLY products including Penowrap and High Temperature Adhesive and stainless steel staples.
KEY BENEFITS
- 60 minutes Integrity, 60 minutes Insulation from both sides
- IFC Certified for use on timber – BS476 Parts 20 & 22
- Lightweight, flexible, easy to handle and cut
- Installer-friendly fire barrier system
- Installer-friendly product with installation savings of 30% compared to a triple layer system
- Ideal for lofts and roof voids with restricted access and space
- Works with FIREFLY Penowrap for a perfect barrier solution on timber
- Utilises standard fixings, angles and high temperature adhesives approved for all FIREFLY barriers
General information
Color | White |
Material | Glass Fibre |
Shape | Other |
Length | 6000 mm |
Width | 1270 mm |
Height | 10 mm |
Warranty description | Ten year |
Uniclass | |
CAWS | K10/205 Lining on timber K10/530 Cavity fire barriers within partitions/ wall linings P10/410 Flexible cavity barriers K10/15 Lining on timber |
Specification data - Coated woven glass fibre cloth flexible cavity barriers
General requirements | Combined fire integrity and insulation. |
Thickness | 10 mm. |
Fire performance | Fire resistance: 60/60 integrity/ insulation. |
Sound insulation rating | 23 dB reduction. |
Sustainability data
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Third party certifications
IFCC
IFCC 1578 FIREFLY Athena 60:60
