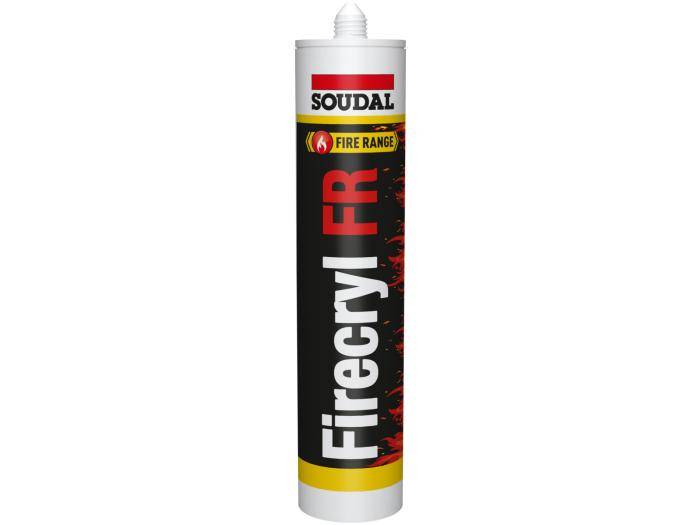

Firecryl FR Intumescent Acrylic Fire Door Sealant - Fire-Resistant, Smoke-Tight Sealant

Name: Firecryl FR Intumescent Acrylic Fire Door Sealant - Fire-Resistant, Smoke-Tight Sealant
Brand: Soudal (UK) Ltd
SKU: 7DWEiisUnKrQXJxbaP3oaq

Verified by manufacturer 21 days ago

Soudal (UK) Ltd

Product certifications:

EPD
Certificate type
European Technical Approval (ETA)
Certificate type
GEV-EMICODE® EC1 PLUS
Certificate type

Fire-resistant, smoke-tight acrylic dispersion sealant with intumescent properties and permanent elasticity.

Jump to:

Request BIM

+44 (0)1827 261092 Website

Application

For fire-resistant and smoke-tight indoor applications.
Suitable for sealing fire retardant joints in walls and ceilings, fire-retardant filling of cracks in concrete and plasterwork, and applications where the sealant needs to be overpainted with water-based paints and varnishes.
As part of the Soudal Fire Range assortment for penetration seals and joints.

Description

Firecryl FR is a fire-resistant, smoke-tight, with heat load intumescent plasto-elastic sealant based on acrylic dispersion.

Features and benefits:

Prevents the passage of fire and smoke.
Intumesces when exposed to temperatures higher than 120°C.
Can be painted over after curing.
Very easy to apply.
Permanently elastic after curing.
Colourfast and waterproof after curing.
Very good adhesion on many porous materials.

General information

Color	White Grey
Finish	Smooth
Material	Acrylic Water-based
Shape	Formless
Length	Bespoke
Width	Bespoke
Height	Bespoke

Uniclass	Pr_30_31_76_40 Intumescent firestop sealantsPrimary Pr_30_31_76_02 Acrylic construction joint sealants
CAWS	P12/47 Sealants P12/390 Sealants

Specification data - Intumescent firestop sealants

Classification data
Third-party certification	European Technical Approval ETA 13/0335. Environmental Product Declaration EPD-DBC-20220146-IBF1-EN. GEV-EMICODE® EC1 Plus 7104/15.05.06. CE-marked (BCCA - EC conformity CPR). Joint Sound Reduction Test by IFT. Manufacturer guidance Various test and classification reports in various accredited testing institutes: IFT Rosenheim, ITB Poland, Warrington Fire Gent, Warrington Fire Australia, Efectis Netherlands, Efectis France, CSTB France, CSI Italy. Test results for penetration seals and/or joints with Firecryl FR are freely accessible in the ‘Fire Range Application manual Penetration seals and Joints’ on the Soudal Website. The corresponding certificates can be obtained through the Soudal sales representatives or trough the Soudal Website.
Material	Water-based acrylic intumescent.
Fire performance	-
Fire resistance	To EN 13501-2, ≤240 minutes. Manufacturer guidance Relates to fully cured product. Dependent on the joint- or penetration seal configuration and the joint- or penetration seal dimensions.
Composition	Acrylic dispersion (paste).
Curing	Physical drying; skin formation approx. 20 minutes. Guidance for specification option: At 23°C/ 50% relative humidity. May vary depending on environmental factors such as temperature, moisture, and type of substrates.
Density	Approx. 1.57 g/mL.
Temperature resistance	-20 to +80°C. Manufacturer guidance Relates to fully cured product. Dependent on the joint- or penetration seal configuration and the joint- or penetration seal dimensions.
Application temperature	5–30°C.
Shrinkage	To DIN 52451, approx. 15%.
Technical characteristics, other	Maximum allowed distortion, to ISO 11600: approx. 12.5%.

Sustainability data

Contains Red List materials	No
Country of material origin	Belgium
Country of product manufacture	Belgium
Manufacturing plant location	Everdongenlaan 18, 2300 Turnhout, Belgium
Material	Acrylic Water-based
Carbon dioxide equivalent
Carbon dioxide equivalent, as defined in BS EN 15804 Certified
Stage Normalised unit (kg CO₂ eq/kg) Declared unit (kg CO₂ eq/kg) Stage:A1–A3 ('Production stage') Normalised unit : 1.32 (kg CO₂ eq/kg) Declared unit : 1.32
