Fire Tube
Verified by manufacturer 2 months ago

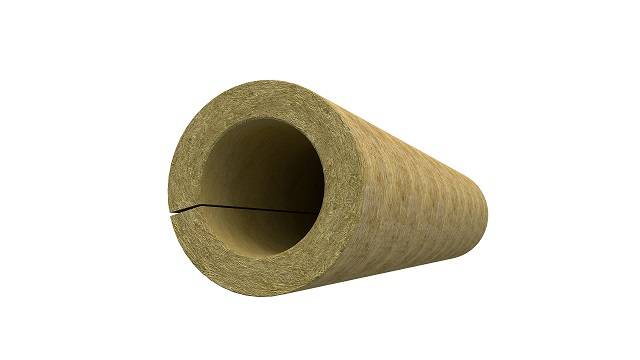

ROCKWOOL Fire Tube is a rigid, pre-formed cylindrical section tested to provide cellulosic fire protection to circular section structural steel, and to process sprinkler and service pipes.
Application
Fire Tube has been designed to provide fire protection of up to three hours' and is suitable for use with: Structural steel; Circular Hollow Sections (CHS); Solid bars; Sprinkler pipes; Process pipework.
Description
Fire Tube has been tested to BS EN 13381-4:2013 to provide passive fire protection to structural steel members. Manufactured from stone wool, it offers fire protection, with excellent thermal and acoustic qualities. Fire Tube is available to suit common metal pipe diameters in the range between 21–610 mm and is available un-faced or with an optional aluminium foil facing
Features and benefits:
- Range of wall thicknesses to accommodate specific steelwork, pipe and content fail temperatures.
- Individually manufactured to fit pipe and CHS sizes up to 610 mm outside diameter.
- Up to three hours' fire protection (EI180).
- Additional thermal and acoustic benefit.
- A1 non-combustible.
- Authorized for use in LUL surface and sub-surface premises when installed in accordance with the data sheet.
General information
Specification data - Pipe sleeves
Material | Stone wool. |
Form | Foil faced.Plain. |
Thickness | 25 mm. 40 mm. 50 mm. 60 mm. 70 mm. |
Width | 21 mm. 27 mm. 34 mm. 42 mm. 48 mm. |
Accessories | Not required. ROCKWOOL FirePro Glue. Steel wire. |
Thermal Conductivity: | 0.033 W/mK. Guidance for specification option: At 10°C. |
Standard | To BS 3958-4 and ISO 14001. |
Sustainability data
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Material | Stone wool |
Recyclability | Can be recycled |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
