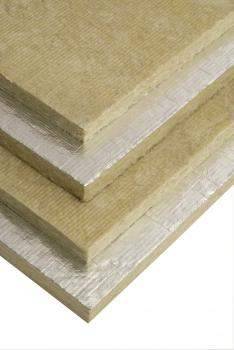

Fire-teK Beam and Column Slab (Foil Faced) Insulation

Fire-teK Beam and Column Slab (Foil Faced) Insulation

Verified by manufacturer 30 days ago

Knauf Insulation Ltd

Fire-teK Beam and Column Slab is a Rock Mineral Wool Slab used in the fire protection of structural steel and cast iron beams and columns.

Jump to:
+44 (0)1744 766 666 www.knaufinsulation.co.uk

Application

Fire-teK Beam and Column Slab is a Rock Mineral Wool Slab used in the fire protection of structural steel and cast iron beams and columns.

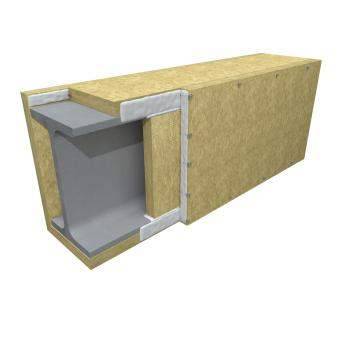

Fire-teK Beam and Column Slab is used to provide fire protection to structural steel columns, beams and trusses. Fire-teK Beam and Column Slab with a foil facing are suitable for use above clean rooms, within air plenums, or for aesthetic purposes. Plaster manufacturers advice and guidance should be followed regarding pre-treatment of Fire-teK Beam and Column Slabs before application of plaster finishes. Fire-teK Beam and Column Slab can be used with four types of fixing systems for the fire protection of structural steelwork. Fixing systems:

  • Dry Fix System.
  • Adhesive noggin Fixing System.


Description

Fire-teK Beam and Column Slab is a Rock Mineral Wool Slab used in the fire protection of structural steel and cast iron beams and columns.


They are non-combustible with the best possible Euroclass A1 reaction to fire classification, and are available either unfaced, or with a foil facing.


Features and benefits:

  • Non-combustible with a melting point in excess of 1000°C
  • Fire-teK Beam and Column Slabs are manufactured to factory tolerances, enabling the specifier to be certain that the correct thickness of fire protection has been applied.
  • Quick and easy to check that all relevant areas have been protected
  • Rock Mineral Wool fire protection slabs are easy to handle and fit on site particularly for overhead work.


Certification:

  • Eurofins Gold.
  • CE Marking.
  • UKCA.
  • EN 15804.
  • EUCEB.
  • Made in Britain.
  • RAL.


Durability:

Fire-teK Beam and Column Slab is odourless, rot proof, non-hygroscopic, does not sustain vermin and will not encourage the growth of fungi, mould or bacteria.


Standards and certification:

Fire-teK Beam and Column Slab is manufactured in accordance with BS EN 13162, ISO 50001 Energy Management Systems, ISO 14001 Environmental Management Systems, and ISO 9001 Quality Management Systems, as certified by TÜV Nord.


Real performance:

Glass and Rock Mineral Wool are easier to install correctly than other insulants such as rigid boards because they adapt to any slight imperfections in the substrate and knit together, eliminating any air gaps. Evidence shows the absence of air gaps is crucial to achieving real performance in the relevant application.


Environmental:

Fire-teK Beam and Column Slab contains no ozone-depleting substances or greenhouse gases. For further environmental information consult the relevant Environmental Product Declaration, available on our website.


Moisture resistance:

Fire-teK Beam and Column Slab is non-wicking when tested to BS 2972:1989: Section 12. When exposed to 90% humidity and 20°C, Fire-teK Beam and Column Slab absorbs less than 0.004% of moisture.


Handling and storage:

Fire-teK Beam and Column Slab is easy to handle and install, and is easily cut to size, where necessary. Fire-teK Beam and Column Slab is supplied loose on hooded pallets which are designed for short term protection only. For longer term protection on site, the product should either be stored indoors, or under cover and off the ground. Fire-teK Beam and Column Slab should not be left permanently exposed to the elements.

General information

Color

Brown

Silver

Finish

Foil

Aluminium foil: Face on one side.

Material

Rock fibre mineral wool

Shape

Rectangle

Length

2000 mm

Width

1200 mm

Uniclass

Pr_25_57_06_56 Mineral wool slab insulationPrimary
Pr_25_80_81_51 Mineral wool fire-stopping
Pr_25_31_48_34 Granular mineral wool insulation
Pr_25_57_06/310 Insulation products generally
Pr_25_57_06_53 Mineral wool insulation

CAWS

null Mineral wool insulation boards

null Mineral wool insulation

null Mineral wool insulation boards

null Mineral wool insulation boards

B11/240 Thermal insulation

B13/241 Thermal insulation

H11/780 Thermal insulation

J21/425 Mineral wool insulation

H90/400 Thermal insulation

H92/776 Thermal insulation

H92/775 Thermal insulation

J21/230 Insulation

H30/311 Mineral wool thermal insulation

H30/310 Mineral wool thermal insulation

H31/271 Mineral wool thermal insulation

H31/270 Mineral wool thermal insulation

H62/230 Mineral wool insulation on structural metal liner trays

H64/305 Mineral wool insulation on structural metal liner trays

J31/334 Mineral wool insulation

H65/230 Mineral wool insulation on structural metal liner trays

H67/305 Mineral wool insulation on structural metal liner trays

H60/230 Mineral wool insulation on structural metal liner trays

H61/230 Mineral wool insulation on structural metal liner trays

J41/425 Mineral wool (MW) insulation

K40/285 Insulation

K45/425 Insulation

H30/40 Thermal insulation

H31/50 Mineral wool thermal insulation

P12/40 Mineral wool rigid batts

J31/26 Thermal insulation

J41/26 Thermal insulation

J42/27 Thermal insulation

J42/425 Mineral wool (MW) insulation

P12/360 Mineral wool rigid batts

K10/85 mineral wool insulation

K40/55 Insulation

K45/50 Insulation

Specification data - Mineral wool slab insulation

General requirements

Insulation products generally.

Standard

To BS 476.

Thickness

20 mm.

25 mm.

30 mm.

35 mm.

40 mm.

45 mm.

50 mm.

60 mm.

65 mm.

Facing

Foil faced.

Fire-teK Beam and Column Slab is also available with a bright Class '0' aluminium foil facing.

Edges

Square.

Thermal conductivity (maximum)

0.035 W/mK.

Fire performance

Euroclass A1 to BS EN 13501-1.

Environmental information

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom

Digital objects

Platform Compatible Version Certified to
IFC
-

1

2.1
Revit
-

1

2.1
