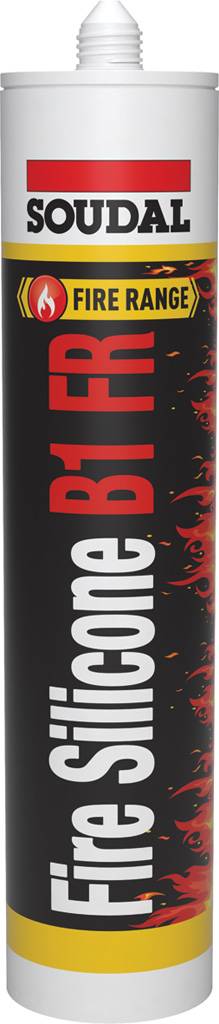

Fire Silicone B1 FR Fire rated Silicone Sealant - Fire-Resistant Joint Sealant

Name: Fire Silicone B1 FR Fire rated Silicone Sealant - Fire-Resistant Joint Sealant
Brand: Soudal (UK) Ltd
SKU: 8zRk5LzjoD9pvC8RJAoLJ

Verified by manufacturer 21 days ago

Soudal (UK) Ltd

Product certifications:

EPD
Certificate type
European Technical Approval (ETA)
Certificate type
GEV-EMICODE® EC1 PLUS
Certificate type

Fire Silicone B1 FR is a high-quality, fire-resistant, smoke-tight, neutral, elastic, one-component joint sealant based on silicones.

Jump to:

Request BIM

+44 (0)1827 261092 Website

Application

Fire retardant expansion and connection joints in the construction industry.
Fire-resistant sealing of connection joints.
As part of the 'Soudal Fire Range' assortment for penetration seals and joints.

Description

Fire Silicone B1 FR is a high-quality, fire-resistant, smoke-tight, neutral, elastic, one-component joint sealant based on silicones.

Features and benefits:

High level of fire retardation.
Sealant for preventing the passage of smoke and gas.
MEKO free.
Very good adhesion on many materials.
Permanently elastic after curing (without fire load).
Very easy to apply.
Excellent UV stability.
Not paintable.

General information

Color	Grey White Black
Finish	Smooth
Material	Silicone
Shape	Formless
Length	Bespoke
Width	Bespoke
Height	Bespoke

Uniclass	Pr_30_31_76_77 Silicone construction joint sealantsPrimary
CAWS	P12/390 Sealants P12/47 Sealants

SKU Code	147412

Specification data - Silicone construction joint sealants

Classification data
Third-party certification	Environmental Product Declaration EPD-DBC-20220179-IBF1-EN. European Technical Assessment ETA 13/0336. GEV-EMICODE® EC1 Plus Licence number: 11046/15.05.06.
Material	Neutral cure.
Class	Manufacturer's standard.
Colour	Grey. White. Black.
Fire performance	-
Fire resistance	To EN 13501-2, ≤240 minutes. Manufacturer guidance Relates to fully cured product. Dependent on the joint- or penetration seal configuration and the joint- or penetration seal dimensions.
Composition	Polysiloxane basis.
Curing	Moisture curing; skin formation approx. 9 minutes; curing speed: approx. 2 mm/24h. Guidance for specification option: At 23°C/ 50% relative humidity.
Density	Approx. 1.26 g/mL.
Elastic recovery	To ISO 7389, >90%. Manufacturer guidance Relates to fully cured product. Dependent on the joint- or penetration seal configuration and the joint- or penetration seal dimensions.
Technical characteristics, other	Maximum allowed distortion: ±25%.
Modulus of elasticity	TO ISO 37, elasticity modulus 100%: approx. 0.38 N/mm². Manufacturer guidance Relates to fully cured product. Dependent on the joint- or penetration seal configuration and the joint- or penetration seal dimensions.
Elongation at break	To ISO 37, >900%. Manufacturer guidance Relates to fully cured product. Dependent on the joint- or penetration seal configuration and the joint- or penetration seal dimensions.
Temperature resistance	-40 to +180°C. Manufacturer guidance Relates to fully cured product. Dependent on the joint- or penetration seal configuration and the joint- or penetration seal dimensions.
Application temperature	1–30°C.

Sustainability data

Contains Red List materials	No
Country of material origin	Belgium
Country of product manufacture	Belgium
Manufacturing plant location	Everdongenlaan 18, 2300 Turnhout, Belgium
Material	Silicone
Carbon dioxide equivalent
Carbon dioxide equivalent, as defined in BS EN 15804 Certified
Stage Normalised unit (kg CO₂ eq/kg) Declared unit (kg CO₂ eq/kg) Stage:A1–A3 ('Production stage') Normalised unit : 5.31 (kg CO₂ eq/kg) Declared unit : 5.31 Lower emissions
Recyclability	- Manufacturer guidance Consult manufacturer for details, including 'Disposal' section under the EPD.
Recycled content As defined in clause 7.8 of BS EN ISO 14021	0 %
