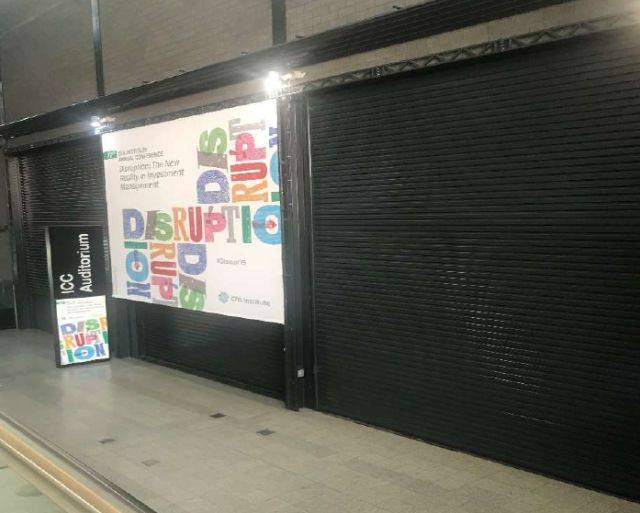

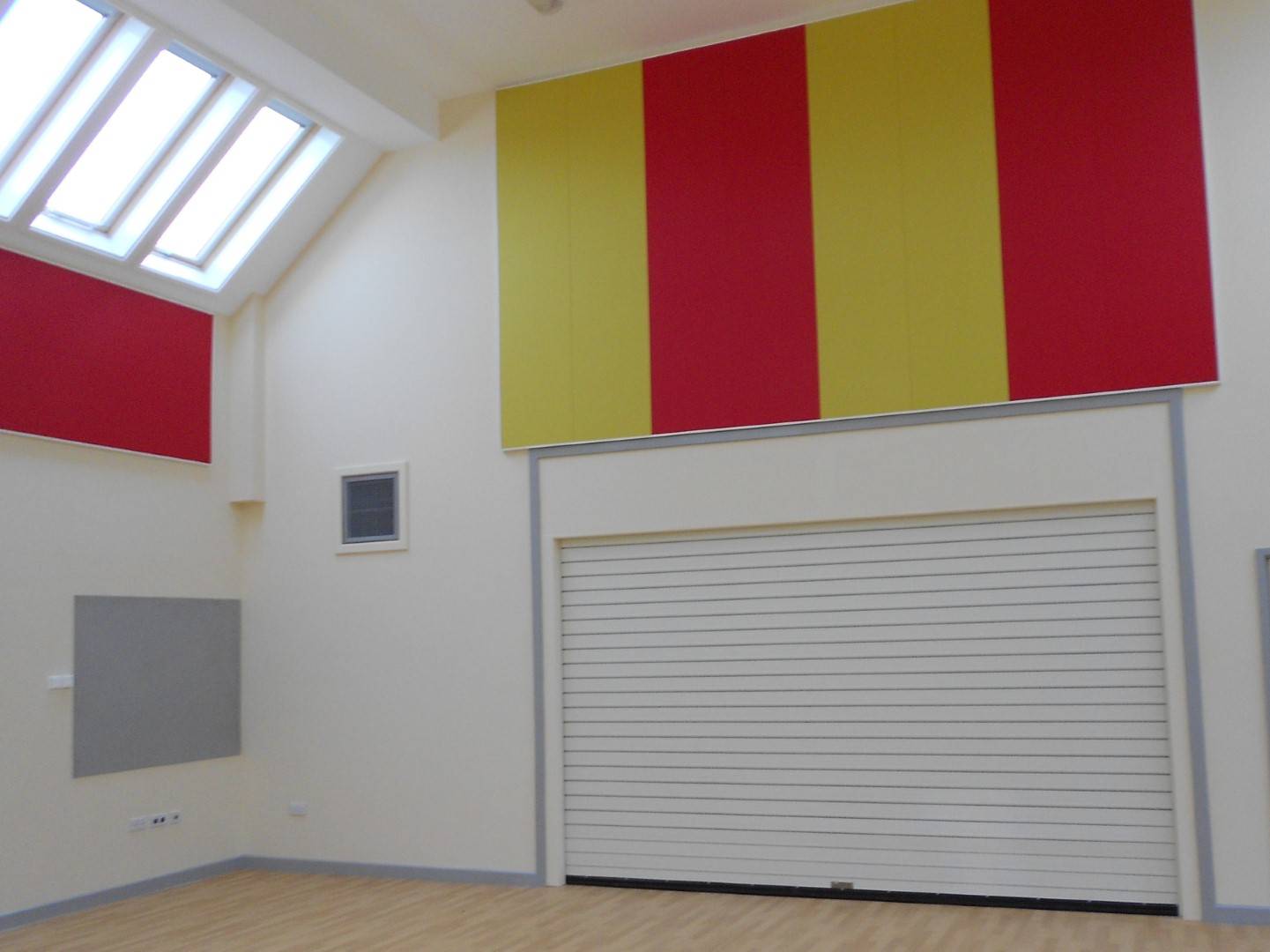

Fire Shutter - Fireroll EW - Insulated Fire Shutter

Verified by manufacturer 18 days ago

Bolton Gate Company Third party certifications:
  • Constructionline Gold

    Constructionline Gold

    Certificate type

  • ISO 9001 Quality Management

    Certificate type

  • dhf certificate

    dhf certificate

    Certificate type

Radiant heat and fire resisting roller shutter.

Jump to:
+44 (0)1204 871001 Website

Application

Any application where fire compartmentation is required but ideally suited for openings where radiated heat is     considered a factor i.e.:

Warehouses, Factories, Storage Facilities, Shopping Centres, Malls, Car Parks, Department Stores.



Performance Characteristics:

Resistance to Fire:      EW90 or EW120 (Internal and external).



Fire: Tested to EN1634-1 all in accordance with

EN13501- 2:2016, EN13241:2003 +A2:2016, EN16034:2014

EN15269-10



Key Attributes:

Fire rated and radiant heat reducing shutter.

Bespoke compact design.

CE Marked fire shutter.

Multiple applications.




Description

Bolton Gate Company’s Fireroll Range of Fire Shutters is the most comprehensive available on the market. An important part of this range is the Fireroll EW which uniquely combines fire resistance with a high degree of heat radiation reduction.



Providing up to two hours of fire resistance the Fireroll EW insulated curtain also considerably reduces the risk of combustible materials igniting on the unexposed side when compared to standard single skin fire shutters.



When tested, the radiation transfer remained below 15kW/m² making this product ideal for protecting personnel passing the opening.



All Bolton Gate fire doors and shutters are tested and assessed by officially recognised, competent authorities.


Operation

All shutters are electrically operated by a 230-volt nominal single phase or 400-volt nominal three phase Speedsafe motor mounted on one endplate and have adjustable limit switches incorporated to stop the shutter at the end of each travel.  A pull cord and hand chain are provided for use in the event of power failure.



Standard operation is via a low-level push button station with emergency stop button.



In a fire condition, gravity failsafe closing is activated by a 24-volt DC signal (0.37 amps) from the client’s fire alarm panel to the auto reset solenoid which releases the motor brake and is backed up by a fusible link.



A safety brake is supplied to comply with the safeguarding requirements of EN 12604.



Curtain

Shutter curtains are constructed from 100mm high flat section continuously interlocked galvanised steel laths which are securely held in place by steel end locks. Each lath is infilled with fire resisting acoustic material.



Bottom Rail

The bottom rail comprises a standard lath fitted with a galvanised steel trim section.



Side Guides

Vertical guides are formed from galvanised steel double rebate channels and are supplied with suitable profiles for fixing to the structure.


Roller

The roller is constructed from seamless steel tube of adequate diameter to resist deflection and held in bearings or cups attached to the endplates.



Endplates

Zinc plated mild steel of appropriate thickness relative to door size and supplied with angles for fixing to the structure.



Coil Casing

A galvanised steel coil casing is supplied to maintain the fire seal at the head.



Finish

Fireroll EW is supplied with most parts galvanised as standard.

Where non-galvanised parts are utilised, these are finished with one coat of primer paint



Maximum Sizes

7000mm wide x 5000mm high

12000mm wide – height dependent (please contact our sales team to discuss)



Weight

Varies with opening size dependent on lath/barrel/casing requirements but approximately 50kgs/m².



Options

· Heat / smoke detectors.

· Audio visual warning.

· Factory finish comprising white plastisol to internal curtain face (coil side) with a polyester powder coat finish to external face from a range of standard RAL colours.

· Grade 304 or 316 stainless steel.





General information

Color

-

Manufacturer guidance

Galvanised as standard with option for a polyester powder coat finish to a single colour from the RAL range.

Finish

Galvanized

Powder-coated

Other

Material

Carbon steel

Steel

Stainless steel

Shape

Rectangle

Square

Length

Bespoke

Width

Bespoke

Height

Bespoke

Warranty description

One year

Uniclass

Pr_30_59_84_30 Fire-resisting roller shuttersPrimary

CAWS

L20/610 Roller shutters/ curtains

Product range

Fire

Specification data - Fire-resisting roller shutters

Standard

To EN 13501-2, EN 15269-11 and EN 16034.

Opening sizes

-

Manufacturer guidance

Bespoke; insert requirement, available up to 7 x 5 m as standard (clear width x clear height), maximum approved clear width is 12 m.

Format

External.

Internal.

Arrangement

Vertical, fitted into reveal.

Performance

-

Fire performance

-

Fire resistance

Integrity (E) 120.

Frame and guides

-

Material

Carbon steel.

Shutter curtain

-

Lath material

Steel.

Profile

Flat.

Finish and colour

Galvanized.

Guidance for specification option:

Standard.

Polyester powder-coated.

Guidance for specification option:

Insert colour requirement.

Weight

50 kg/m².

Guidance for specification option:

Approximately.

Mode

Automatic.

Control

Manufacturer's standard.

Guidance for specification option:

Low-level push button station with emergency stop button.

A pull cord and hand chain are provided for use in the event of power failure.

In a fire condition, gravity failsafe closing is activated by a 24 V d.c. signal (0.37 amps) from the client’s fire alarm panel to the auto-reset solenoid which releases the motor brake and is backed up by a fusible link.

Accessories

None.

Audiovisual warning.

Heat/ smoke detectors.

Sustainability data

Contains Red List materials

No

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom

Material

Carbon steel

Steel

Stainless steel

Manufacturing plant location

Recyclability

95%

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

0 %

Expected Life

20 year

Third party certifications

Constructionline Gold

Constructionline Gold

Constructionline Gold

ISO 9001 Quality Management

ISO 9001 Quality Management

Certificate of Management System Registration - ISO 9001:2015

dhf certificate

dhf certificate

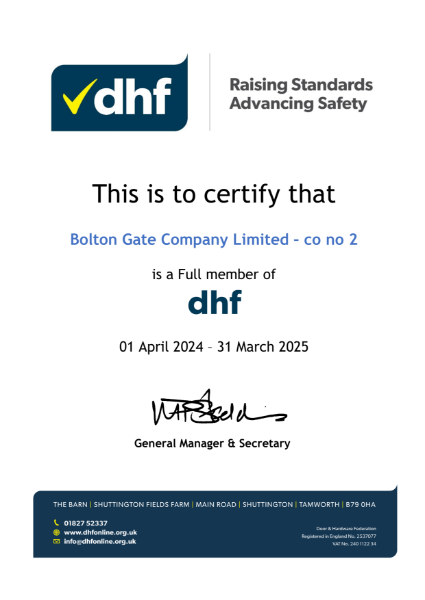

DHF Membership

Literature

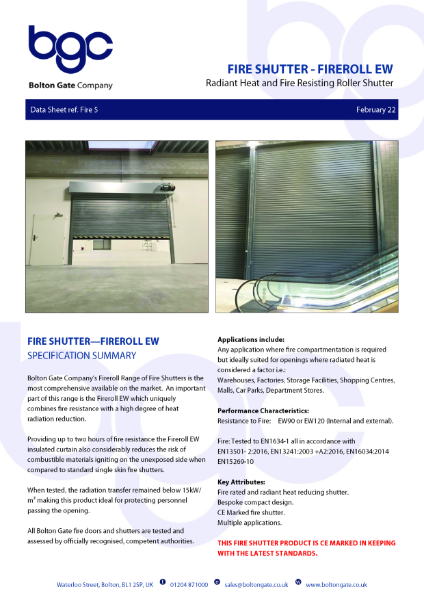

Fire Shutter - Fireroll EW - Radiant Heat and Fire Resisting Roller Shutter

Fire Shutter - Fireroll EW - Radiant Heat and Fire Resisting Roller Shutter

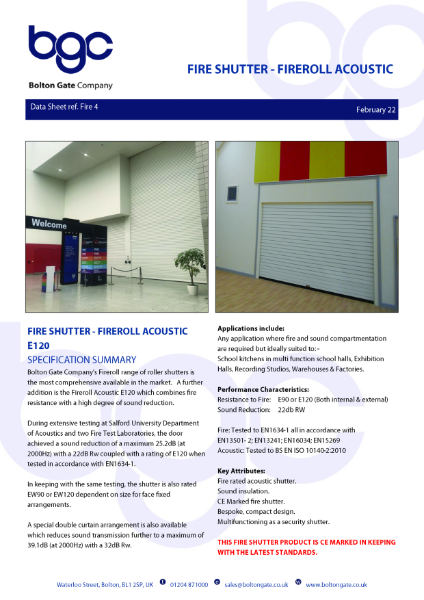

Fire Shutter - Fireroll Acoustic - Acoustic Rated and Fire Resisting Roller Shutter

Fire Shutter - Fireroll Acoustic - Acoustic Rated and Fire Resisting Roller Shutter

Case studies

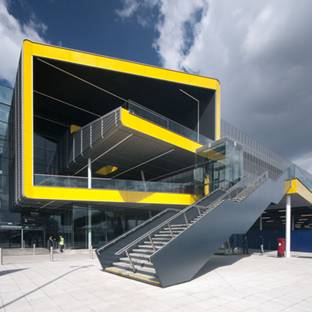

ExCel London Phase II - Fireroll Acoustic

ExCel London Phase II - Fireroll Acoustic

Similar products from Bolton Gate Company

Fire Shutter - Fireroll Acoustic - Insulated Fire Shutter

Fire Shutter - Fireroll Acoustic - Insulated Fire Shutter

Fire Shutter - Fireroll E120

Fire Shutter - Fireroll E120

Fire Shutter - Fireroll E30

Fire Shutter - Fireroll E30

Fire Shutter - Fireroll E60

Fire Shutter - Fireroll E60

Fire Shutter - Fireroll VR60

Fire Shutter - Fireroll VR60
