Description

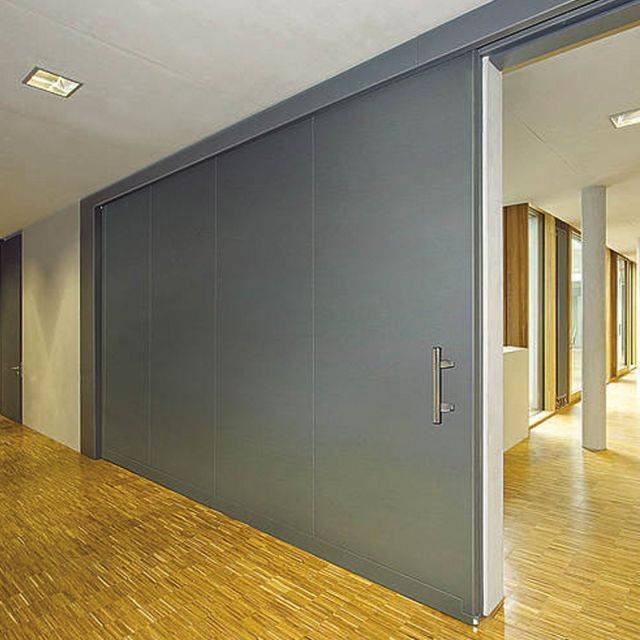

Sliding single leaf steel door, double-skinned with PUR foam core. Opens to the left, suspended from tubular runner rail with double twin running gears.

Fixing applications:

  • Masonry.
  • Concrete.
  • Autoclaved aerated concrete.
  • Steel construction.

General information
Size

See 'Options' below and insert requirements.

Finish

Galvanized and prime coated – Similar to RAL 9002 (grey white)

Uniclass 2015 Sliding door and partition sets (Pr_30_59_24_80)
Specification data
Product Reference

T 90-1-FSA, Teckentrup 72 E

Fire-resistant sliding steel door.

T 90-2-FSA, Teckentrup 72 E

Fire-resistant sliding steel door.

dW 72-1/2 ME

Sliding steel door double skinned.

Size

See 'Options' below and insert requirements.

Colour/ Finish

Galvanized and prime coated grey white

Similar to RAL 9002.

Polyester powder coated, RAL

Optional, available in any RAL colour.

Stainless steel

Optional.

Wicket door

Required

Not required

Accessories

Various items of special ironmongery are available, consult manufacturer and insert requirements.

Standard product features

Finish:

Galvanized and prime coated – Similar to RAL 9002 (grey white).

Door leaf:

  • Double skinned.
  • Thickness: 72 mm.
  • Insulation: Mineral wool.
  • Sheet thickness: 1 mm.

Door seal:

Galvanized seal profiles, 2 mm thick, on three sides.

Ironmongery:

  • Tubular runner rails with height-adjustable double twin running gears on ball bearings.
  • Two end stoppers.
  • One recessed handle.
  • One push handle on the installation side.

Product Options

T 90-1-FSA:

-Size:

1000–8500 mm width, 2000–6000 mm height.

T 90-2-FSA:

-Size:

1500–8500 mm width, 2000–6000 mm height.

DW 72-1/2 ME:

-Size:

1500–8500 mm width, 2000–6000 mm height.

Wicket door:

  • For use between two door leaf elements (with threshold).
  • Door leaf: Double-skinned, rebated on three sides.
  • Reinforcement: U-shaped and flat steel.
  • Insulation: PUR foam core.
  • Sheet thickness: 1 mm.
  • Door leaf thickness: 72 mm.
  • Two three-piece hinges.
  • Mortice lock with lever/ knob in accordance with DIN18250, prepared for profile cylinder.
  • Special black handle set.
