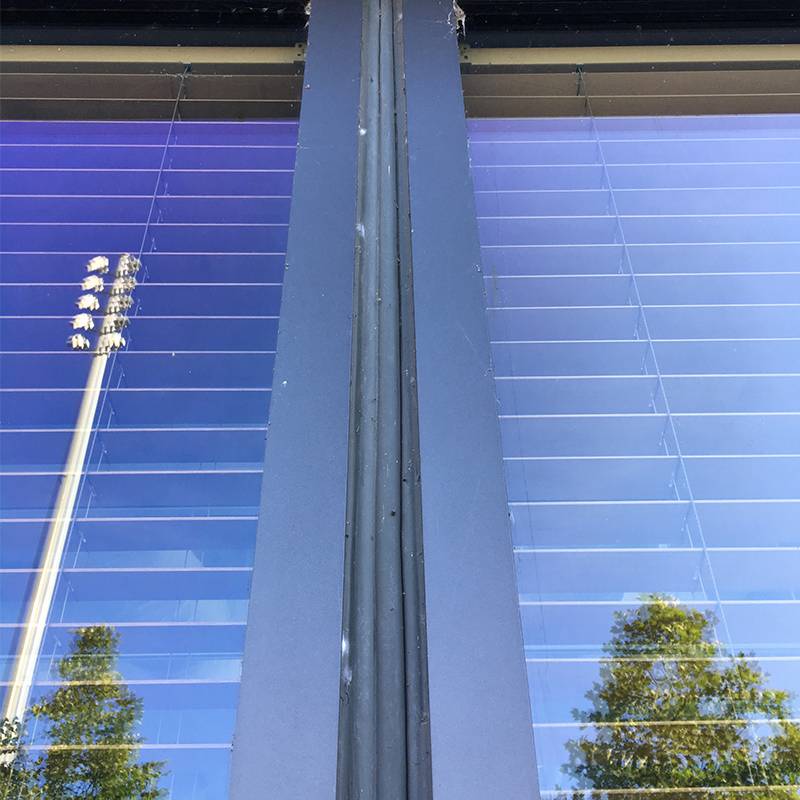

Fire Resistant Facade Joints - Emseal Colorseal-VHE-CE - Watertight movement joint

Verified by manufacturer 3 months ago

NCC – Emseal Movement Joints Third party certifications:
  • European Technical Approval (ETA)

    European Technical Approval (ETA)

    Certificate type

  • LEED US

    LEED US

    Certificate type

  • Declare

    Declare

    Certificate type

The fire resistant, CE-marked, Emseal Colorseal system is used to seal joints in external facades and parapet walls, with up to 100% (+/-50%) joint movement capability and high insulation values.

Jump to:
BOS
+44 (0) 1257 266696 Website

Application

Typically, the Emseal Colorseal system is used to provide a watertight sealed movement joints in external facades and parapet walls for example, where it is especially suitable for wide and/or high movement joint sealing applications i.e. for joints from 12mm up to 200mm, with a joint movement capability up to 100% (+/- 50%). This means it is suitable for use as both single and double-sided joint sealing, in both primary and/or secondary joint sealing solutions, according to the structural design and exposure requirements.

The Emseal Colorseal system does not require any invasive and potentially damaging mechanical fixings, and provides highly durable watertight sealed joints for many different exposed situations on building facades and other structures.

Description

Emseal Colorseal-VHE is a fire resistant, 2 hour CE-marked, ETA-certified, double-sided silicone-faced movement joint which provides a watertight seal with 100% movement capability, plus high thermal insulation, UV stability, and colour coordination for both vertical and horizontal substrates. It performs these functions without invasive metal anchoring or complex field fabricated assemblies. In contrast to liquid-applied sealants, Emseal Colorseal-VHE-CE is free of tensile stresses at the substrate bond line. Colorseal-VHE provides a cost effective, long term watertight seal.


Colorseal-VHE combines a factory applied, low modulus silicone with an open cell polyurethane foam infused with a water-based, fire-retardant, acrylic dispersion. The coloured silicone facing is factory adhered to the infused foam on two sides at a width greater than the maximum anticipated joint extension, and is then cured.

When compressed, the silicone facing forms a bellows profile capable of accommodating +/-50% (total 100%) movement from the product’s nominal size. The bellows fold, and unfold during movement virtually free of tensile stresses.


Colorseal-VHE is supplied pre-compressed to slightly less than its nominal size for ease of installation. To install sticks, clean he substrate walls. Apply the supplied epoxy adhesive to the substrates. After removing packing materials insert the Colorseal-VHE into the joint. After the Colorseal-VHE has expanded to fill the joint space and is bonded to the substrates, a field-applied silicone corner bead ensures a watertight seal at the substrate interface.


Features and benefits:

  • +/-50% Movement capability.
  • Watertight seal.
  • UV resistance.
  • Traffic-grade silicone surface.
  • Eliminates tensile stresses at bond line.
  • Very fast and simple installation.
  • No invasive anchoring.
  • No complex field-fabricated assemblies.
  • Available in industry-standard colours.
  • Supplied pre-compressed to less than nominal joint size.
  • Coated on two sides (for use in double-sided applications with opposing exposed surfaces).

General information

Color

Other

Beige

Black

Brown

Cream

Show more

Manufacturer guidance

Available in industry-standard colours

Finish

Silicone

Material

Silicone

Polyurethane

Epoxy

Shape

Rectangle

Square

Parallelogram

Other

Length

Bespoke

Width

Bespoke

Height

Bespoke

Warranty description

-

Manufacturer guidance

Standard or project-specific warranties are available from EMSEAL on request.

Uniclass

Pr_35_90_53_86 Strip movement jointsPrimary

CAWS

Q21/470 Expansion joints

Q21/470 Expansion joints

Specification data - Strip movement joints

Joint width

12 mm.

Guidance for specification option:

Depth of seal: 70 mm.

19 mm.

Guidance for specification option:

Depth of seal: 70 mm.

25 mm.

Guidance for specification option:

Depth of seal: 70 mm.

30 mm.

Guidance for specification option:

Depth of seal: 70 mm.

40 mm.

Guidance for specification option:

Depth of seal: 70 mm.

45 mm.

Guidance for specification option:

Depth of seal: 70 mm.

50 mm.

Guidance for specification option:

Depth of seal: 70 mm.

55 mm.

Guidance for specification option:

Depth of seal: 70 mm.

65 mm.

Guidance for specification option:

Depth of seal: 70 mm.

70 mm.

Guidance for specification option:

Depth of seal: 75 mm.

75 mm.

Guidance for specification option:

Depth of seal: 90 mm.

85 mm.

Guidance for specification option:

Depth of seal: 95 mm.

90 mm.

Guidance for specification option:

Depth of seal: 95 mm.

95 mm.

Guidance for specification option:

Depth of seal: 105 mm.

100 mm.

Guidance for specification option:

Depth of seal: 115 mm.

110 mm.

Guidance for specification option:

Depth of seal: 115 mm.

115 mm.

Guidance for specification option:

Depth of seal: 125 mm.

120 mm.

Guidance for specification option:

Depth of seal: 135 mm.

125 mm.

Guidance for specification option:

Depth of seal: 140 mm.

135 mm.

Guidance for specification option:

Depth of seal: 145 mm.

140 mm.

Guidance for specification option:

Depth of seal: 145 mm.

145 mm.

Guidance for specification option:

Depth of seal: 145 mm.

150 mm.

Guidance for specification option:

Depth of seal: 150 mm.

165 mm.

Guidance for specification option:

Depth of seal: 165 mm.

175 mm.

Guidance for specification option:

Depth of seal: 175 mm.

190 mm.

Guidance for specification option:

Depth of seal: 190 mm.

200 mm.

Guidance for specification option:

Depth of seal: 200 mm.

Edging

-

Material

Silicone.

Finish

Natural.

Colour

Grey.

Insert

-

Material

An open cell polyurethane foam infused with a water-based, fire-retardant, acrylic dispersion.

Colour

Grey.

R-Value

2.15 per 25 mm depth at as installed nominal joint size compression.

Sound

STC Rating (Sound Transmission Class) STC 54 (in a STC 56 wall).

Air permeability

ABAA Compliant 0.0078 L/(s·m²) at 75 DP(Pa), 0.0118 L/(s·m²) at 250 DP(Pa).

Water penetration

No water penetration after consecutive 15 minute soak durations under pressures of: 500 ΔP(Pa), 65 mph equivalent wind driven rain, 1000 ΔP(Pa), 92 mph equivalent wind driven rain, 5000 ΔP(Pa), 205 mph equivalent wind driven rain.

Maximum wind loading

-0.1 mm Net Deflection of Span at +2730 ΔP(Pa), 150 mph equivalent, +0.1m m Net Deflection of Span at -2730 ΔP(Pa), 150 mph equivalent, -0.6 mm Net Deflection of Span at +4854 ΔP(Pa), 200 mph equivalent, +0.5 mm Net Deflection of
Span at -4854 ΔP(Pa), 200 mph equivalent.

Resistance to fire

EI90 -- Vertical applications, EI45 -- Horizontal applications.

Resistance to fire - Euroclass

Class E.

Movement

100% (+/- 50%).

Acoustics

Rs.w (C ; Ctr): ≥ 46 (-1 ; -3).

Sustainability data

Contains Red List materials

No

Country of material origin

United States

Country of product manufacture

United States

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
Revit
-

1

IFC
-

1

Third party certifications

European Technical Approval (ETA)

European Technical Approval (ETA)

Emseal Colorseal VHE - European Technical Approval-ETA CE-Marking Certificate

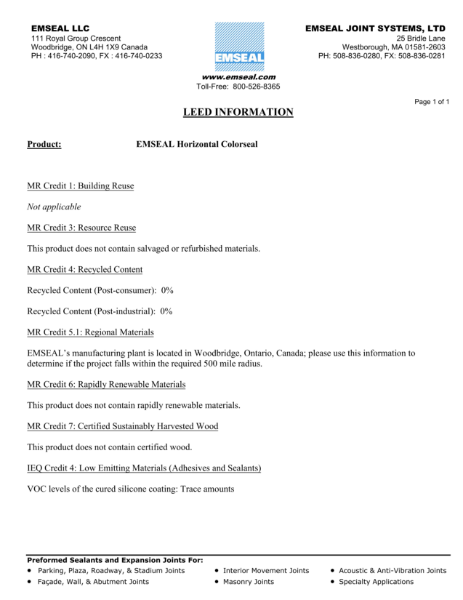

LEED US

LEED US

LEED Sustainability Rating-Emseal Colorseal VHE-CE

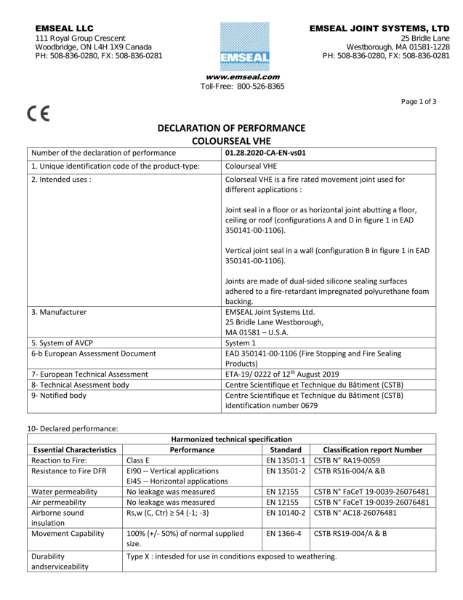

Declare

Declare

DoP - Emseal Colorseal VHE-CE

Literature

Emseal Colorseal VHE Product Data Sheet

Emseal Colorseal VHE Product Data Sheet

Case studies

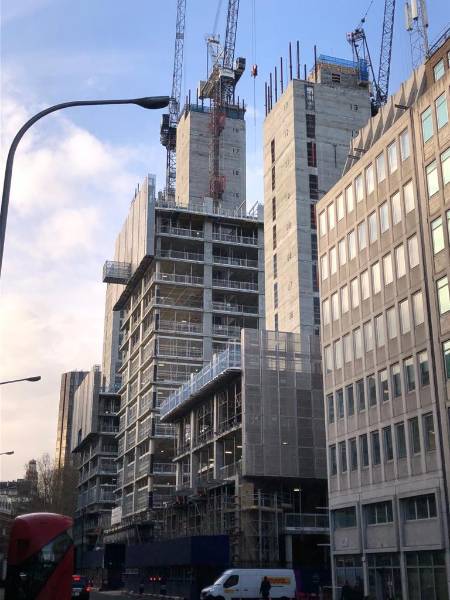

Emseal Colorseal seals joints between precast façade panels at the Broadway Redevelopment In London

Emseal Colorseal seals joints between precast façade panels at the Broadway Redevelopment In London

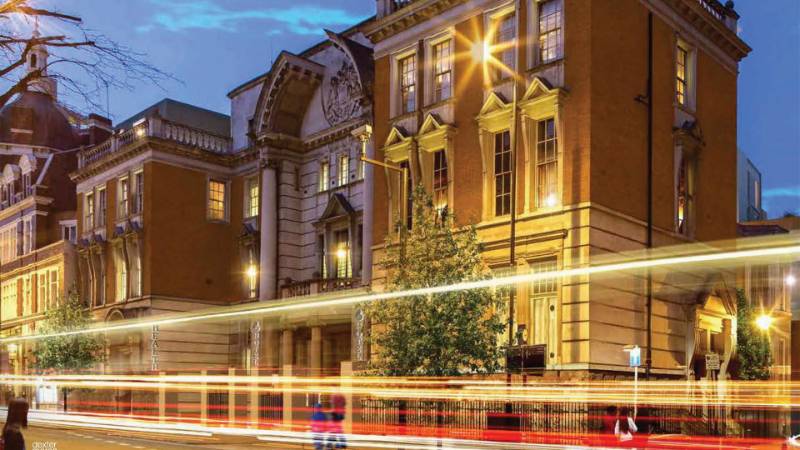

Emseal Colorseal VHS was used on Dixons Hotel at Tower Bridge in London, to seal the large, high potential movement capability, structural façade movement joints that also have variable widths, between the historic original building and its new extension

Emseal Colorseal VHS was used on Dixons Hotel at Tower Bridge in London, to seal the large, high potential movement capability, structural façade movement joints that also have variable widths, between the historic original building and its new extension

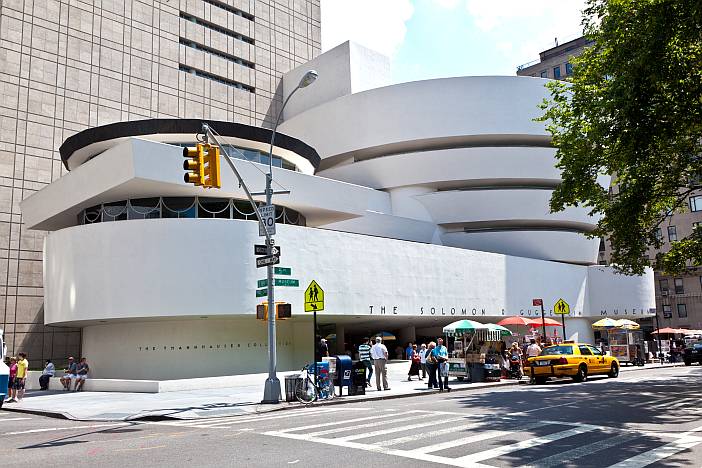

Emseal Colorseal celebrates 3 decades of successfully sealing wide expansion joints between the original building and its 10-story extension added back in 1992 at the Guggenheim Museum in NYC
