Fire Curtain HF60

Application

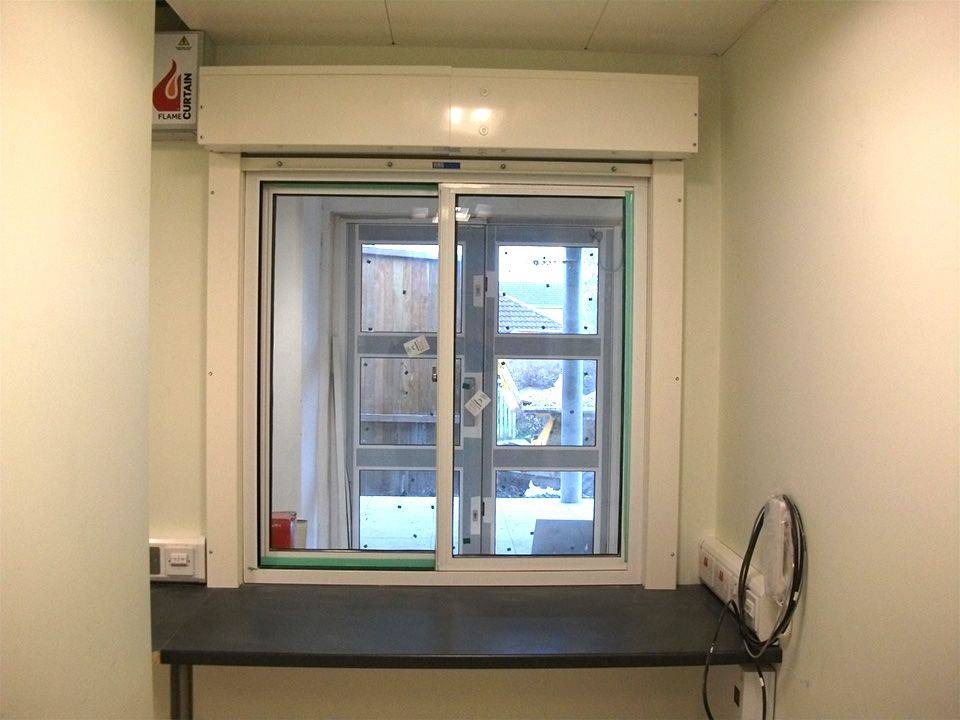

Used in kitchen servery areas, schools, hospitals and commercial offices

Description

60-minute fire protection curtain.


Features and benefits:

  • Self-closing.
  • Can be linked to the building's emergency fire protection systems to prevent the spread of fire by containment.
  • Specially coated glass fibre curtain protects against hot air transfer and protects main escape routes.
  • Can be installed in widths up to 20 000 mm and heights up to 6000 mm (single or overlapped curtains depending on size required).


Standards:

  • Fire Integrity (E) 60 minutes.
  • Compliant to BS 476: Part 20: 1987.
  • Compliant to BS 476: Part 22: 1987.
  • Compliant to BS EN 12101 Annex B.
  • Compliant to EN13501-2:2007 + A1:2009.
  • Full CE Compliance (conformity certificates on request).
  • CERTIFIRE Certified.
  • Complies to Document Part M Building Regulations 2004.

General information

Color

Grey

Standard for fire curtain.

Bespoke

Box. rails and guides only.

Features

60 minutes' fire protection

Finish

Galvanized

Standard.

Galvanized and powder coated

Optional; insert RAL or BS 4800 colour requirement.

Material

Fibreglass/ stainless steel

Curtain is manufactured from a woven fibreglass and stainless steel fabric with a coating of intumescent silicone.

Box and rails are galvanized steel.

Shape

Rectangular

Size

20 000 x 6000 mm

Maximum width/ height.

WarrantyDescription

12 months

Comprehensive warranty.

Uniclass 2015

Pr_25_80_79_94 Vertical active fire curtain barriersPrimary

CAWS

L20/60 Doors

L20/610 Roller shutters/ curtains

Specification data - Vertical active fire curtain barriers Enhanced data

Standards

Compliant to BS 476: Part 20: 1987; Compliant to BS 476: Part 22: 1987; Compliant to BS EN 12101 Annex B; Compliant to EN 13501-2:2007 + A1:2009; Full CE compliance; Complies to Document Part M Building Regulations 2004.

CE conformity certificates available on request.

Third party certification

CERTIFIRE certified.

Size

Insert requirements:

  • Single curtains up to 5000 x 6000 mm (width x height).
  • Multiple sections can be overlapped to maximum width of 20 000 mm and a maximum height of 6000 mm.

-

Performance

-

Fire resistance

60 minutes.

Barrier units

Woven fibreglass and stainless steel fabric with intumescent silicone coating.

Supplied as single or overlapping curtains depending on overall size.

Single, silver grey.

Single, charcoal.

Deployment

The system is held in the open position by a single phase electric 24 V d.c. motor. When a fire is detected or power is lost the motor will disengage and allow the gravity failsafe to activate.

Delayed drop.

Split drop.

Activation

Manufacturer's standard.

Accessories

None.

Vision panels.

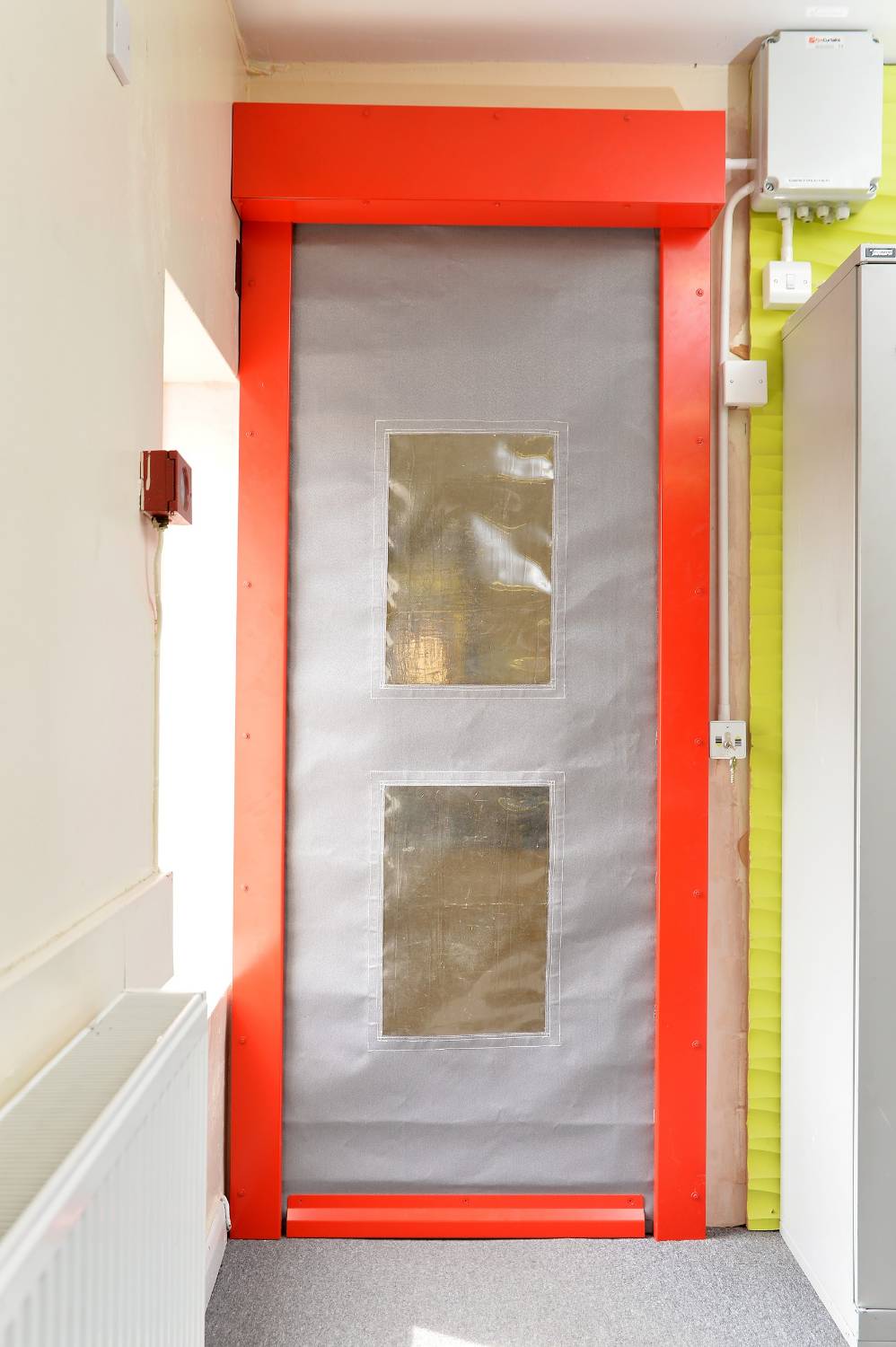

Silicone optical resin rescue vision windows allowing emergency services to see into the area for rescue purposes.

270 x 400 mm each, certified to 240 minutes' fire protection.

Audio/ visual warning devices.

Emergency retract switches.

Beam sensors.

Smoke seals.

Product Reference

Fireguard HF60

Fixing

Face

Reveal

Other.

Can be installed in suspended or solid ceilings.

Frame and guides

All components are formed from galvanized steel.


Box:

The curtain assembly comprises a box housing which includes the motorized barrel and wrapped curtain. The box is attached to channel section guides at each end – these guides are the main fixing point for the entire system.


Guide rails:

100 x 50 mm.


Head box:

  • Up to 4000 mm high: 180 x 180 mm.
  • Over 4000 mm: 210 x 210 mm.


Bottom rail:

Industry-standard ‘bell’.

Galvanized.

Standard.

Polyester powder-coated, colour.

Insert requirements to any standard RAL or BS 4800 colour.

Environmental information

Country of product manufacture

United Kingdom

Digital objects

Platform Compatible Version Certified to
Revit

Revit 2015

1

1.3
IFC

IFC2X3

1

1.3
Download now from NBS National BIM Library

Similar products from HAG Ltd. - The Door Specialists
