Finion Vanity Unit G17
Verified by manufacturer 8 months ago
G170GFGK
G170GFGK

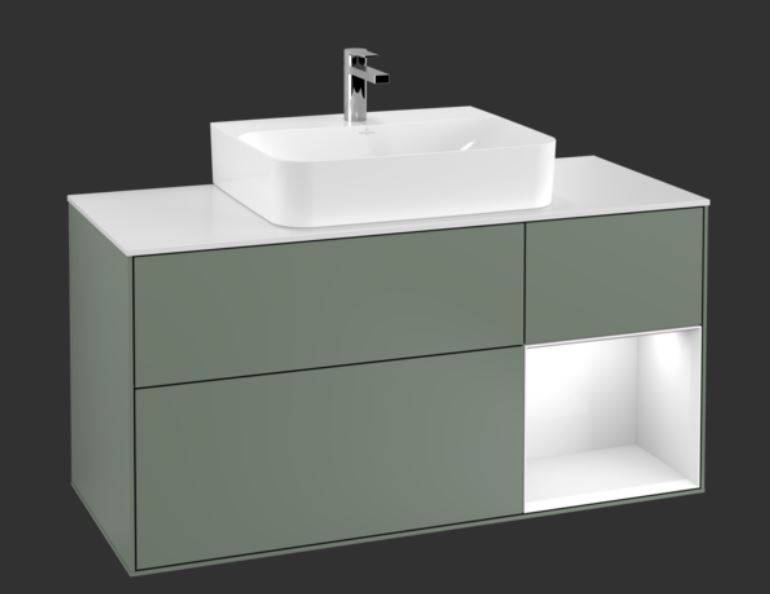

Vanity unit with lighting and pull-out compartments.
Application
Suitable for selected vanity washbasins.
Description
Wall mounted vanity unit with lighting and pull-out compartments. The work top is designed to be fully covered by a vanity washbasin and the carcass is available in a variety of colours and finishes.
Features and benefits:
- Fastening set included.
- Soft closing compartments.
- Washbasins sold separately.
- Part of the Finion range.
- Push-to-open function.
- This light contains built-in LEDs. The LEDs in the light cannot be replaced.
- IP 44.
General information
Color | Beige Black Blue Brown Green |
Finish | Painted Veneer |
Material | Chipboard Glass Guidance for specification option: Drawer dividers. Medium density fibreboard (MDF) |
Shape | Rectangle |
Length | 501 mm |
Width | 1200 mm |
Height | 603 mm |
Uniclass | |
CAWS | N10/145 Vanity and washroom furniture |
Specification data - Vanity units
Form | Wall-mounted. |
Materials | |
Carcass | |
Frame and panels | MDF. |
Finish and colour | Anthracite matt lacquer. |
Worktop | |
Material | Toughened glass. |
Finish and colour | Glass white matt.Glass black matt. |
Size (nominal) | 1200 x 501 x 603 mm. |
Integral accessories | Vanity washbasin.G999 02 00 remote.Guidance for specification option: Required to control the lighting. It is not included in the scope of delivery. Only one control unit is necessary per bathroom. |
Type | LED. Guidance for specification option: 2 x LED / 4.2 W. |
Ingress protection | IP 44. |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 OBJ | - | 1 |
 Revit | - | 1 |
 SketchUp | - | 1 |
 ARCHICAD | - | 1 |
 IFC | - | 1 |
 3Ds Max | - | 1 |
