Finion Tall Cabinet F46
Verified by manufacturer 9 months ago

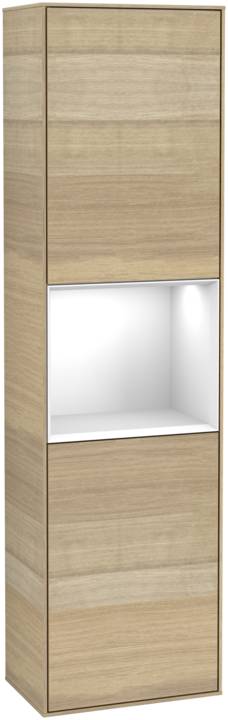

Tall cabinet with lighting, two doors and exposed middle shelf.
Description
Wall mounted tall cabinet with lighting and exposed middle shelf, available in a range of complimentary or contrasting finishes to the remaining carcass. Doors are left hinged and each compartment contains a glass shelf.
Features and benefits:
- Fastening set included.
- Soft closing doors.
- Hinges on the left.
- Part of the Finion range.
- Available in a wide range of colours and finishes.
- This light contains built-in LEDs. The LEDs in the light cannot be replaced.
- Push-to-open function.
General information
Color | Beige Black Blue Brown Gold |
Finish | Painted Veneer |
Material | Chipboard Glass Guidance for specification option: Internal shelf. Medium density fibreboard (MDF) |
Shape | Rectangle |
Width | 418 mm |
Uniclass | |
CAWS | N10/145 Vanity and washroom furniture |
Specification data - Bathroom cabinets
Form | Wall-mounted. |
Carcass | |
Material | Manufacturer guidanceMaterial dependent on finish and colour choice. Consult manufacturer for details. |
Finish and colour | Anthracite matt lacquer.Black matt lacquer.Glossy black lacquer.Glossy white lacquer.Light grey matt lacquer.Midnight blue matt lacquer.Oak veneer.Olive matt lacquer.Peony matt lacquer.Sand matt lacquer.Walnut veneer.White matt lacquer. |
Size (nominal) | 418 x 1516 x 270 mm. |
Shelves | |
Arrangement | One, exposed between cabinet doors and two, adjustable. |
Material | Manufacturer guidanceMaterial dependent on finish and colour choice. Consult manufacturer for details. |
Finish and colour | Anthracite matt lacquer.Black matt lacquer.Glossy black lacquer.Glossy white lacquer.Light grey matt lacquer.Midnight blue matt lacquer.Oak veneer.Olive matt lacquer.Peony matt lacquer.Sand matt lacquer.Walnut veneer.White matt lacquer.Gold matt lacquer. |
Doors | |
Arrangement | Double, left side-hung. |
Material | Manufacturer guidanceMaterial dependent on finish and colour choice. Consult manufacturer for details. |
Finish and colour | Anthracite matt lacquer.Black matt lacquer.Glossy black lacquer.Glossy white lacquer.Light grey matt lacquer.Midnight blue matt lacquer.Oak veneer.Olive matt lacquer.Peony matt lacquer.Sand matt lacquer.Walnut veneer.White matt lacquer. |
Hinges | Soft closing. |
Handles | None. |
Integral accessories | G999 02 00 remote.Guidance for specification option: Required to control the lighting. It is not included in the scope of delivery. Only one control unit is necessary per bathroom. |
Colour | Neutral white. Guidance for specification option: 2700 K. Daylight white. Guidance for specification option: 6480 K. |
Type | LED. Guidance for specification option: 1 x LED / 2.3 W. |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 IFC | - | 1 |
 ARCHICAD | - | 1 |
 SketchUp | - | 1 |
 Revit | - | 1 |
 OBJ | - | 1 |
 3Ds Max | - | 1 |
