Application

For bathrooms.


Description

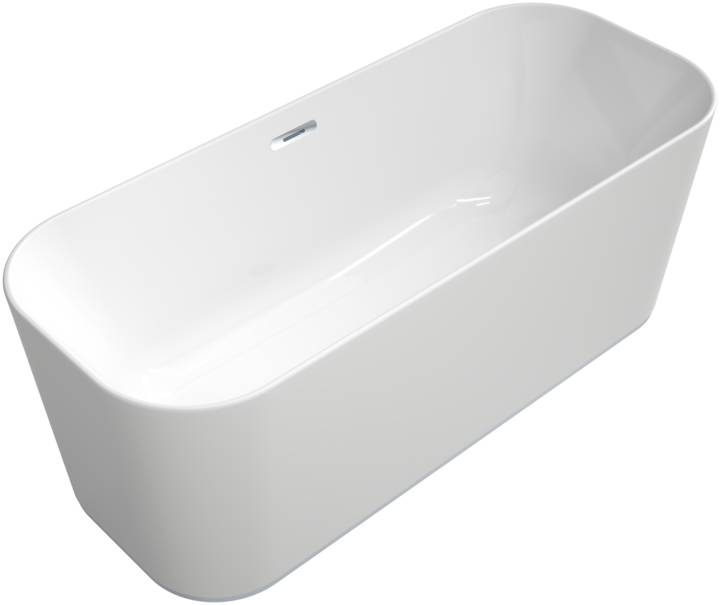

Free-standing bath.


Features and benefits:

  • The push-to-open valve and overflow are supplied as standard (pre-mounted).
  • Duo, can fit two people.
  • Furnishings in chrome.
  • Includes a remote control for the Emotion feature that can be used for the bath lighting, furniture lighting and mirror lighting.
  • Seamless.

General information

Color

White

Finish

Gloss

Matt

Material

Quaryl®

Shape

Rectangle

Length

1700 mm

Width

480 mm

Uniclass

Pr_40_20_06_08 BathsPrimary

CAWS

N13/35 Baths

N13/355 Baths

Specification data - Baths

Form

Free-standing.

Materials

Quaryl®.

Colour

Alpin White.

Stone White.

Size

1700 x 700 x 480 mm.

Volume to overflow (maximum)

221 L.

Water supply, overflow and waste holes

-

Water supply

No tap holes.

Overflow

Overflow hole.

Waste

Bottom central waste outlet.

Integral accessories

Push-to-Open valve and overflow. Remote control for Emotion feature.

Anti-slip finish

Class A.

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
IFC
-

1

OBJ
-

1

ARCHICAD
-

1

Revit
-

1

3Ds Max
-

1

SketchUp
-

1
