NBS Source

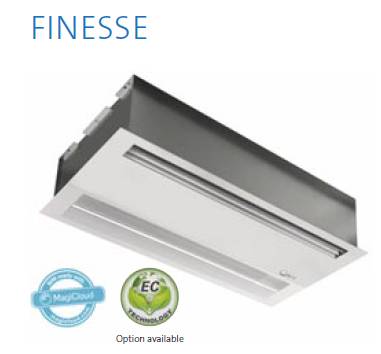

Finesse Suspended Ceiling Air Curtain
Compare variants

Application

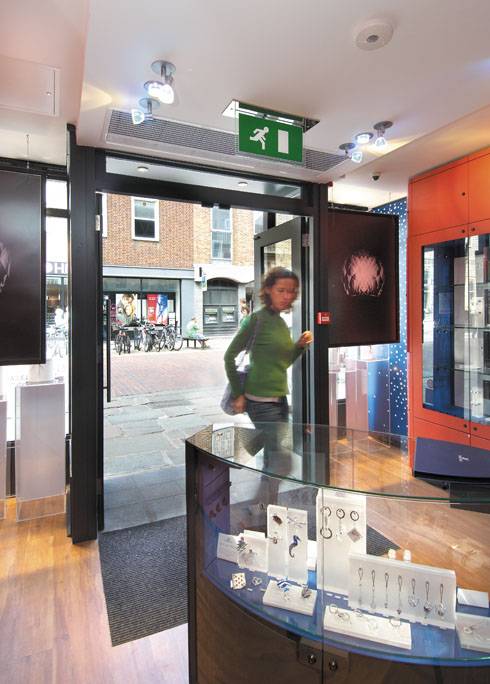

Suitable for a range of environments from banks and boutiques to shopping centres and airports.

Description

A high performance air curtain for suspended ceilings.


Features and benefits:

  • Separated air intake and outlets in order to avoid circulation of air.
  • Inlet grille acts as an air filter, preventing dust and airborne contaminants from entering. The grille can be periodically wiped or vacuumed.
  • The AirGENIO comfort controller is supplied as standard, which offers automatic control with manual override to adjust the air curtain's performance efficiently to any application. Option to upgrade to the advanced AirGENIO superior controller, which offers modulating heat output for both electric and water heaters using a suitable valve.
  • Maximum ceiling height of four meters.
  • Tested to ISO 27327-1.

General information

Shape

Rectangle

Color

Any RAL colour available. Consult manufacturer and insert requirements.

White

As standard (RAL9016).

Size

1085 x 594.6 x 304.1 mm

1585 x 594.6 x 304.1 mm

2085 x 594.6 x 304.1 mm

2465 x 594.6 x 304.1 mm

Uniclass

Pr_70_60_36_02 Air curtainsPrimary

Specification data - Air curtains Enhanced data

Third party certification

CE Marked, EAC Marked.

Heating method

Electric.

Arrangement

Horizontal.

Output

0.6 kW.

Air volume

1778 m³/h.

Mounting height

3.5 m.

Casing finish

Manufacturer's standard.

Accessories

Not required.

AirGENIO superior controller.

EC fan.

Voltage

400 V.

Frequency

50Hz.

Weight

39.5 kg.

Noise

Noise level at 3 m.

57.9 dB.

Dimensions

1085 x 594.6 x 304.1 mm.

NominalHeatingCapacity

9.4 kW.

Fan

AC fan.

Floor-to-ceiling height

4 m (maximum).
