NBS Source

Application

  • Hotels, offices, public buildings, schools, court houses, hospitals, cinemas, discotheques.
  • Intended for protected external use as a structural component in humid conditions, EN 636-2S.
  • Wall linings.
  • Partitions.
  • Display panels.
  • Elements of fairs and exhibitions.


Description

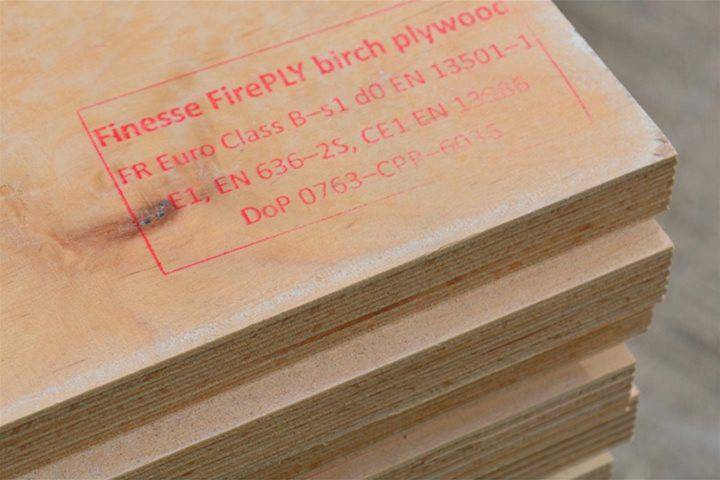

Fire retardant plywood panel, classified in accordance with BS EN 13501 and Euroclass B-s1, d0.


Cross-grained FR hardwood plywood impregnated with fire protection agent/ retardant with birch, beech and alder veneers. CE marked for structural use under attestation system 1.


Features and benefits:


  • Fire retardant even after simple machining.
  • CE marked for structural use under AVCP 1, humid conditions.
  • Suitable for veneering.
  • Low emission of formaldehyde, E1 class.
  • FSC certified.
  • PEFC certified.


Valid for end use conditions:

Mounted on gypsum plasterboard as substrate or any non-combustible substrate of Euro classes A1 or A2-s1, d0 (concrete, steel, non-combustible boards etc.) with thickness ≥ 12 mm and a density ≥ 525 kg/m³, horizontal and vertical joints, with or without a void, mechanically fixed (nails, screws etc.) directly against the substrate or with a void (void created by wooden battens or non-combustible battens creating an air gap of 40 mm), with horizontal and/or vertical joints.

General information

Shape

Rectangle

Length

2440 mm

2500 mm

3000 mm

Width

1220 mm

1250 mm

1500 mm

Uniclass

Pr_25_71_97_85 Specialist veneer plywoodsPrimary

CAWS

G20/15 Plywood

G20/310 Structural plywood

K11/40 Plywood roof decking

K11/815 Plywood

N10/10 Purpose-made

N10/110 Purpose-made

N10/160 Shelving system

N10/30 Shelving system

Product range

Fire Retardant Panels

Specification data - Specialist veneer plywoods

Thickness

12–30 mm, except 1500 x 3000 mm available 12–24 mm.

Veneer

Alder.

Beech.

Birch.

Fire retardant treatment

Fire retardant classification: Bs1 d0 acc. to EN 13501.
