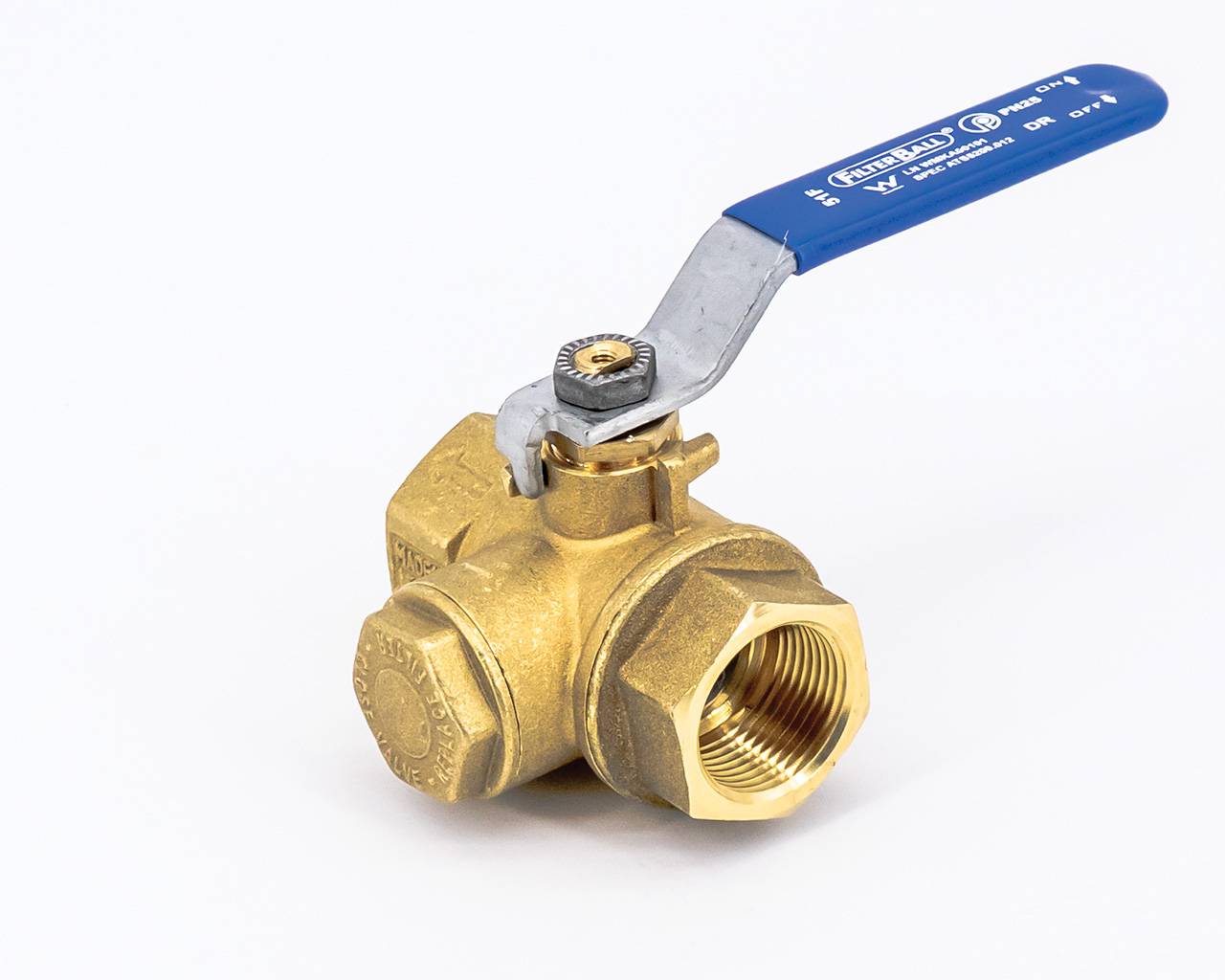

Filterball Valve
Verified by manufacturer 3 months ago
WRAS
Certificate type
On-off ball valve with interchangeable cylindrical strainer.
Application
Suitable for use in plumbing pipework applications.
Description
FilterBall is a heavy-duty ball valve with integrated strainer type FM 28. Made in DZR alloy with a reversible blue steel lever handle.
Features and benefits:
- Very easy to inspect and maintain.
- F x F connections.
- Conforms to EN 13828 standard.
General information
Color | Blue Guidance for specification option: Handle coating. Yellow |
Finish | Brass |
Material | Brass Guidance for specification option: DZR alloy. |
Shape | Other |
Length | 69 mm 95 mm 111 mm 127 mm 154 mm |
Width | 37 mm 51 mm 60 mm 74 mm 76.5 mm |
Height | 50 mm 66 mm 82 mm 89 mm 89.5 mm |
Warranty description | Two year |
Uniclass | |
CAWS | S90/625 Ball valves S90/625 Ball valves |
Specification data - Ball valves
Material | DZR Brass; stainless steel; phosphoric bronze; PTFE; FKM; Delta Protect coated steel and PVC.Guidance for specification option: Body/ ball/ stem/stuffing box; Strainer; Seeger; Seat; O-rings; Handle. |
Connections | Threaded to ISO 7 or ISO 228. |
Finish | Natural. |
Standards | To EN 13828. |
Third-party certification | WRAS approved. |
Inlets/outlets diameter | 1/2" (FB5104L). Guidance for specification option: PN 25. 3/4" (FB5106L). Guidance for specification option: PN 25. 1" (FB5108). Guidance for specification option: PN 25. 1 1/4" (FB5110). Guidance for specification option: PN 16. 1 1/2" (FB5112). Guidance for specification option: PN 16. |
Operator | Lever. |
Sustainability data
Contains Red List materials | Yes |
Country of material origin | Italy |
Country of product manufacture | Italy |
Material | Brass Guidance for specification option: DZR alloy. |
Manufacturing plant location | |
Recyclability | Recycle Locally or return to manufacturer |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 99 % |
Expected Life | 15 year |
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
Third party certifications

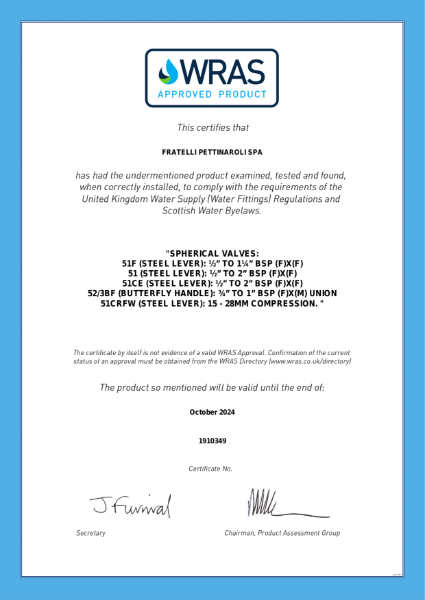

WRAS
WRAS Approval
Literature
51F FilterBall Data Sheet
Pettinaroli Filterball Sales Brochure
Filterball Data sheet
