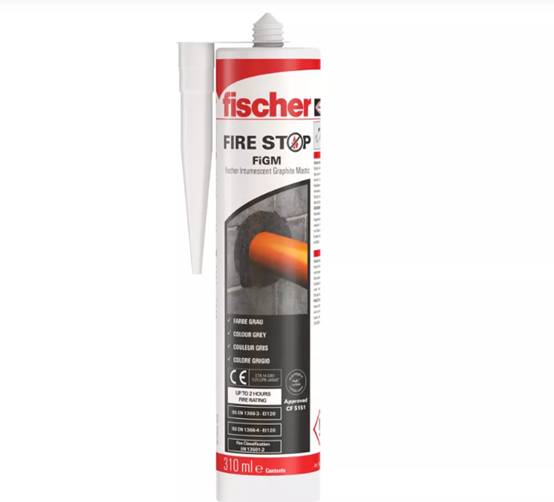

FiGM Intumescent Graphite Mastic - High Performance Fire-resistant Mastic

Name: FiGM Intumescent Graphite Mastic - High Performance Fire-resistant Mastic
Brand: fischer
SKU: hyu3EFUXNbga7G4SbAdRuj

Verified by manufacturer 8 days ago

fischer

Product certifications:

UL-EU Certified
Certificate type
European Technical Approval (ETA)
Certificate type
Indoor Air Comfort – Eurofins
Certificate type

A one-part water-based flexible acrylic emulsion containing a high- pressure intumescent graphite, which is used to seal service penetrations in both vertical and horizontal applications.

Jump to:

+44 (0)1491 827920 Website

Application

Suitable for seal service penetrations in both vertical and horizontal applications.

Metallic pipes: 6“ (159 mm);
Non-metallic pipes: 5“ (125 mm);
Cable bunches: 4" (100mm) of 1“ (21 mm) cables;
Insulated service: 6“ (159 mm);
Construction joints: 1“ (25 mm);
Cable trays: 20" (500mm)
Mixed services.

Building materials:

Masonry; concrete; flexible walls, timber; steel.

Description

A one-part water-based flexible acrylic emulsion containing a high-

pressure intumescent graphite, which is used to seal service penetrations in both vertical and horizontal applications.

Features and benefits:

Can expand up to 20 times its own volume and cures to form a resilient, flexible fire seal..
Low VOC.
Excellent acoustic properties.
Halogen- and solvent-free.
Excellent slump characteristics.
Available in 310 mL cartridges or 19 L buckets.

General information

Color	Red
Finish	Smooth
Material	Water-based Acrylic
Shape	Formless
Length	Bespoke
Width	Bespoke
Height	Bespoke

Uniclass	Pr_30_31_76_02 Acrylic construction joint sealantsPrimary
CAWS	P12/390 Sealants P12/160 Linear gap sealing

SKU Code	516538, 533889

Specification data - Acrylic construction joint sealants

Third-party certification	European Technical Assessment ETA-20/1105. Declaration of Performance (DoP): FS-1006. UL-EU certificate UL-EU-00879-A1. CE marking 1121-CPR-JA5047.
Sealant type	Mastic. Guidance for specification option: Water-based elastomeric.
Colour	Red.
Fire performance	-
Fire resistance	Up to EI240 - EN 1366-3 and EN 13501-2.
Reaction to fire	Reactive intumescent material.

Density	Approx. 1.31 g/m³.
Skin formation at 23°C and 50% Relative Humidity (RH)	Approx. 20–30 minutes.
Curing time	Approx. 4 mm in 72 hours.
pH value	6.5–7.
Acoustic performance	63 dB.
Accessories	None. Dispenser/ applicator. Guidance for specification option: Dependent on cartridge size required; consult manufacturer for details.
Technical characteristics, other	Movement capability: up to 50%. Shelf life: 36 months. Storage temperature: +2 to +49ºC. Intumescent activation: >190°C. Surface burning characteristics: flame spread: 0; smoke: 0.

Sustainability data

Material	Water-based Acrylic
A1-A3 (production stage)	Embodied carbon as defined in BS EN 15804
Normalised unit	1.3 kg CO₂ eq/kg
Declared unit	1.32 kg CO₂ eq/kg Self-declared
