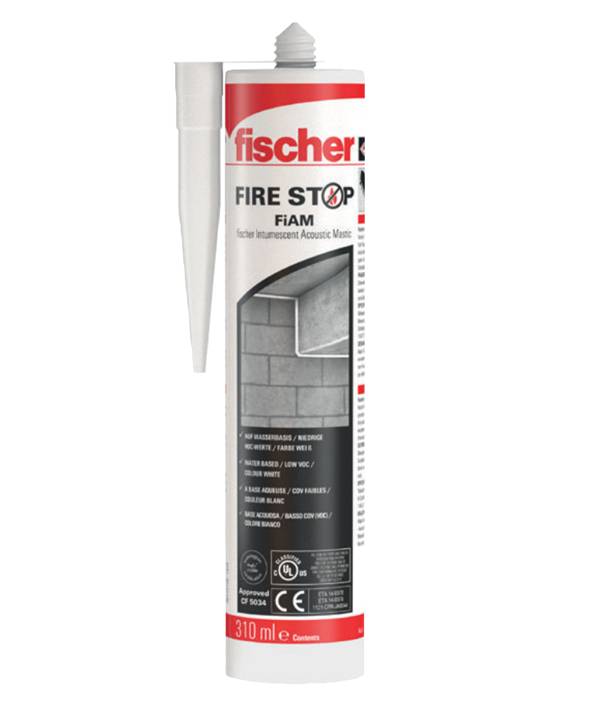

FiAM Intumescent Acoustic Mastic - Flexible Fire-resistant Acoustic Mastic
Verified by manufacturer 8 days ago
Indoor Air Comfort – Eurofins
Certificate type
A one-part water-based acrylic emulsion that can provide up to five hours' fire resistance when used in construction joints and services in both vertical and horizontal applications.
Application
Suitably compatible in a variety of materials, and is utilized within the FCPS which is designed to seal large openings in fire rated floors and walls.
- Metallic pipes: 13“ (325 mm).
- Cable trays: 18“ x 2“ (450 x 50 mm).
- Cable bunches: 4“ (100 mm).
- Linear joints: flexible and rigid construction elements.
- Joints between FCPS coated panel system.
Building materials:
- Rigid floor and wall constructions; flexible wall constructions; masonry; concrete; timber; steel; FCPS system.
Description
Flexible fire-resistant acoustic mastic.
Features and benefits:
- One-part water-based acrylic emulsion that can provide up to five hours' fire resistance when used in construction joints and services in both vertical and horizontal applications.
- When exposed to fire, it reacts to form a highly insulative char that slows down heat transfer, and provides a barrier to fire seal.
- Tested to BS EN 1366-3 & 4, UL 2079 and BS 476-20.
- ETA approved and CE Marked.
- Formulated to be halogen- and solvent-free the FiAM exhibits excellent slump characteristics and has been designed to maintain the sound reduction index of a structure.
- Low VOC.
- Movement capability ±25%.
- Excellent acoustic properties.
- Approved for infinite linear gap length.
- Paintable and excellent slump characteristics.
General information
Color | White Grey Guidance for specification option: On request. |
Finish | Smooth |
Material | Water-based Acrylic |
Shape | Formless |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Uniclass |
SKU Code | 053011, 538152, 538150, 538151, 056006 |
Specification data - Acrylic construction joint sealants
Third-party certification | European Technical Assessment ETA-20/1064. European Technical Assessment ETA-20/1065. UL-EU certificate UL-EU-00878-A1-CPR. CE marking 2531-CPR-CXO10321. eurofins Indoor Air Comfort GOLD® A+. |
Sealant type | Mastic. |
Colour | White. Guidance for specification option: Standard. Grey. Guidance for specification option: On request. |
Fire performance | |
Fire resistance | To EN 1366-3, EN 1366-4, UL 2079. |
Reaction to fire | To EN 13501-1, D-s1,d0; to ASTM E84, Class A. |
Density | Relative gravity: approx. 1.6 g/m³. |
Skin formation at 23°C and 50% Relative Humidity (RH) | Approx. ten minutes. |
Curing time | Approx. 1.5 mm per 24 hours. Manufacturer guidanceDependent on substrate, air humidity and weather conditions. |
Coating thickness (minimum) | ≥3.0 mm depending on application. |
pH value | 8–9.5. |
Acoustic performance | 63 dB. |
Accessories | None. Dispenser/ applicator. Guidance for specification option: Dependent on cartridge size required; consult manufacturer for details. |
Technical characteristics, other | Movement capability ±25%. |
Sustainability data
Material | Water-based Acrylic |
A1-A3 (production stage) | Embodied carbon as defined in BS EN 15804 |
Normalised unit | 1.3 kg CO₂ eq/kg |
Declared unit | 1.32 kg CO₂ eq/kg Self-declared |
Product certifications
Indoor Air Comfort – Eurofins
eurofins Indoor Air Comfort GOLD® A+ (FiAM Intumescent Acoustic Mastic)
Literature
FiAM Intumescent Acoustic Mastic - Datasheet
