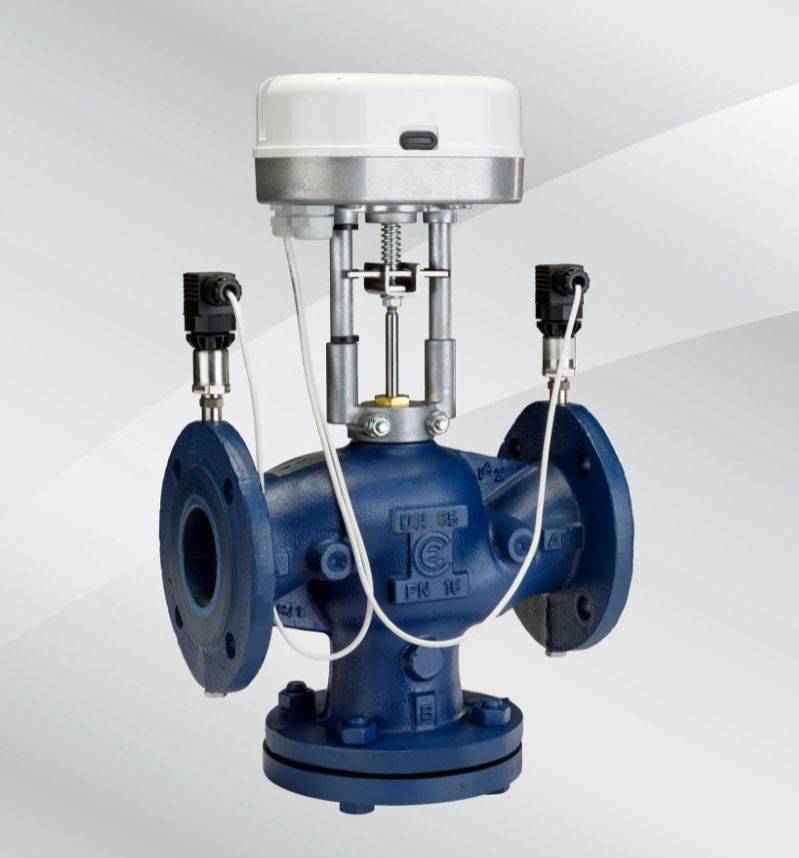

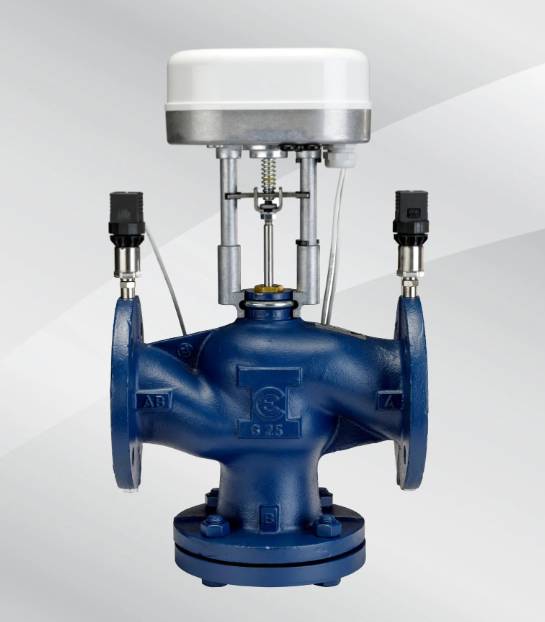

Fig.1936F E-PICV - PN16 Pressure Independent Control Valve
Verified by manufacturer 14 days ago
DN65
DN65
Pressure-independent control valve (PICV) using pressure transducers combined with a high-speed actuator to automatically regulate flow, regardless of pressure fluctuations in the system.
Application
Flow regulation.
Medium: Group 2 liquids.
Description
Pressure-independent control valve (PICV) using pressure transducers combined with a high-speed actuator to automatically regulate flow, regardless of pressure fluctuations in the system.
Features and benefits:
- Reduced commissioning time and costs due to the preconfigured actuator settings, via the Building Management System (BMS) or Hattersley configurator tool.
- Stable head output by maintaining a flow rate regardless of ∆P via pressure sensors.
- System optimisation using the indicated flow rate and position feedback via Modbus.
- Reduced installation labour and cabling costs due to daisy chaining between Modbus actuators.
- Reduced downtime due to error feedback via the BMS.
- Optimized system efficiency and user comfort due to fast responding actuator.
- Isolation function with Class IV leakage up to 800 kPa.
General information
Color | Blue |
Material | Cast iron |
Shape | Other |
Length | 290 mm 310 mm 350 mm 400 mm 480 mm |
Width | 185 mm 200 mm 220 mm 250 mm 285 mm |
Height | 495 mm 516 mm 547 mm 619 mm 657 mm |
Uniclass | |
CAWS | S90/650 Flow-reducing/ servicing valves |
Specification data - Pressure-independent control valves
Pressure rating | PN16.Guidance for specification option: Maximum close off pressure: 800 kPa. Operational ∆P range: 35–800 kPa. |
Temperature range | -10–110°C.Guidance for specification option: Fluid temperature. Ambient temperature: -10–50°C. |
Material | Grey iron EN GJL-250.Guidance for specification option: Body, end cap and seat. Other components: Brass plug; stainless steel stem. |
Connections | Flanges to BS EN 1092-2. |
Actuator | High speed.Guidance for specification option: Protection: IP54. Consult manufacturer for further details. |
Accessories | Pressure sensors.Guidance for specification option:
|
Overall size | 290 x 185 x 495 mm. Guidance for specification option: Length x width x overall length. |
Weight | 18 kg. |
Holes | Four. |
Flow rate | 3.3–10.3 L/s. |
Voltage supply | 24 V a.c./d.c. 230 V a.c. |
Technical characteristics, other | Control signal: 0–10 V d.c., 2–10 V d.c., 0–5/2–6 V d.c. and 4–20 mA |
Sustainability data
Material | Cast iron |
Recyclability | Recycle locally |
Expected Life | 20 year |
