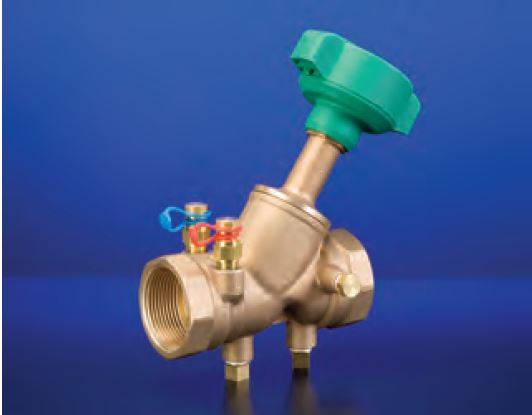

Fig. DPF1732 Companion Valve
Verified by manufacturer 10 days ago
DN15: Fig. DPF1732
DN15: Fig. DPF1732
Bronze female companion valve for differential pressure control valves, PN16.
Application
Suitable as companion valve for DPCV.
Description
Bronze female companion valve for differential pressure control valves, PN16. Male-ended companion valve available on request.
General information
Color | Yellow Guidance for specification option: Body. Green Guidance for specification option: Handwheel. Blue Red |
Material | Bronze Guidance for specification option: Body and bonnet. |
Uniclass | |
CAWS | S92/435 Sprinkler valve sets S14/393 Pressure regulators S92/435 Control valve sets |
Product range |
Specification data - Differential pressure control valves
Pressure rating | PN16. |
Material | Body: Bronze BS EN 1982 (CC491K), Bonnet, stem, disc, orifice insert, test valve and plugs (R 1/8"and R 1/4"): DZR Brass BS EN 12164 (CW602N), O-ring seal: EPDM, Handwheel: Plastic.Guidance for specification option: DN15 to DN32. Manufacturer guidanceEPDM: Ethylene propylene diene monomer (WRAS Approved rubber). |
Connections | Threaded Rp Parallel to BS EN 10226.Guidance for specification option: DN15 and DN20. |
Inlets/outlets diameter | DN15. Manufacturer guidanceNominal. |
Dimensions | 87 x 105 x 50 x 34 mm. Manufacturer guidanceNominal A x B x C x D. |
Weight | 0.57 kg. |
Thread size | DN15. |
Flow capacity | Kv: 1.87, KVs: 1.943. Manufacturer guidanceFlow coefficient Kv and fully open KVs values. |
PressureLossCoefficient | 30.27. Manufacturer guidanceHeadloss coefficient (K). |
Sustainability data
Country of product manufacture | United Kingdom |
Material | Bronze Guidance for specification option: Body and bonnet. |
Manufacturing plant location | |
Recyclability | Recycle locally |
Expected Life | 20 year |
