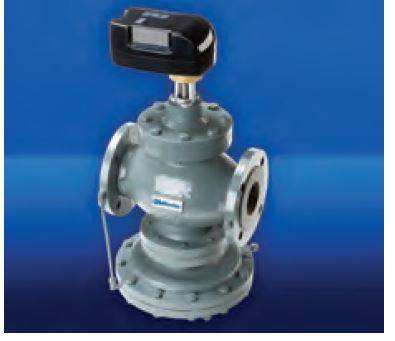

Fig. 306F Pressure Independent Control Valve
Verified by manufacturer 14 days ago
DN50
DN50
Ductile iron pressure independent control valve offering full authority and automatic balancing function, PN16.
Application
- Suitable for use with large plant items such as Air Handling Units (AHU).
- Suitable for difficult site conditions.
- Suitable as part of variable flow system.
Description
Ductile iron pressure independent control valve offering full authority and automatic balancing function, PN16.
Features and benefits:
- Energy savings: Optimal control creates energy savings when used as part of a variable flow system.
- Easy to install: For use with large plant items such as Air Handling Units (AHU), the PICV is compact and easy to install in limited and difficult site conditions.
- Accurate flow rates: Built-in differential pressure controller ensures accurate system design flow rates are achieved and eliminates overflows caused by fluctuating system pressures, which in turn reduces the system running costs.
- Precise temperature control: Linear or equal percentage characteristics, settable with an actuator, contribute to precise environmental temperature control.
General information
Color | Grey Guidance for specification option: Body. Black Yellow |
Material | Cast iron |
Uniclass | |
CAWS | S90/650 Flow-reducing/ servicing valves S90/650 Flow reducing/ servicing valves S90/630 Double check valve assemblies |
Product range |
Specification data - Pressure-independent control valves
Pressure rating | PN16. |
Temperature range | +5 to +120°C. |
Material | Body, bonnet and bottom cover: Ductile iron GCD450, Seat and plug (FC): Bronze CC491K, Diaphragm plate (PC), stem and guide bush (FC): Stainless steel grade 304S15 – 1.4301, Bearing sleeve (FC), plug, stem and guide (FC): Nylon PA66, Diaphragm (PC) and O-rings: EPDM, Springs (PC): Spring steel.Guidance for specification option:
Manufacturer guidance
|
Connections | Flanges to BS EN 1092-2 PN16. |
Actuator | Modulating.Guidance for specification option:
|
Inlets/outlets diameter | DN50. Manufacturer guidanceNominal. |
Dimensions | 254 x 139 x 154 x 191 x 291 x 165 x 50 mm. Manufacturer guidanceNominal L x W1 x W2 x H1 x H2 x D x B. |
Weight | 33 kg. |
PressureRange | Flow: 100%: 50–400 kPa, 80%: 40–400 kPa, 30%: 30–400 kPa. |
Flow rate | 20 m³/h. Manufacturer guidanceMaximum. |
Ingress protection (IP) rating | IP54. |
Tolerances | +/-10%. Manufacturer guidanceFlow accuracy. |
FlowrateLeakage | Linear: Class IV (0.01% of maximum flow), Equal percentage: 2% of maximum flow. Manufacturer guidanceSeat leakage. |
Sustainability data
Material | Cast iron |
Recyclability | Recycle locally |
Expected Life | 20 year |
