Fig. 250W Double Check Valves

Verified by manufacturer 2 months ago

15 mm: Fig. 250CW

Hattersley Variant:

DZR brass double check valve.

Jump to:
+44 (0)1473 277300 Website

Application

  • Suitable for risk prevention of backflow and back siphonage contamination in domestic dwellings, public and commercial buildings.
  • WRAS Approved for use with wholesome (potable) water to 85°C.
  • This valve is suitable for use on group 2 liquids only, as defined by the Pressure Equipment Directive 2014/68/EU.

Description

DZR brass double check valve, PN16.


Features and benefits:

  • Double check valves are used to prevent the risk of backflow and back siphon contamination in domestic dwellings, public and commercial buildings.
  • WRAS Approved for use with wholesome (potable) water to 85°C.
  • Compression version supplied with ends complying with BS EN 1252-2, for use with BS EN 1057 R250 (half hard) copper tube or female taper threads, complying with BS EN 10226-2.
  • Shell pressure rating for Fig. 250W and Fig. 250CW is PN16 with a maximum inlet or working pressure of 10 bar.
  • Compliant with BS EN 13959 ‘Anti-pollution check valves' family E, type D.

General information

Color

Yellow

Guidance for specification option:

Body.

Material

Brass

Guidance for specification option:

Body, vent plug, compression nut and olive.

Uniclass

Pr_65_54_40_13 Irrigation check valvesPrimary

CAWS

S90/630 Double check valve assemblies

S90/630 Double-check valve assemblies

S14/325 Backflow prevention devices

Product range

Public Health

Specification data - Irrigation check valves

Third party certification

WRAS Approved.

Pressure rating

PN16.

Connections

Compression to BS EN 1252-2.

Third party certification:

To BS EN 13959 ‘Anti-pollution check valves’ family E type D.

PressureRange

Temperature: +85°C maximum: 16 bar.

Guidance for specification option:

WRAS Approved to 85°C.

Manufacturer guidance

  • Shell pressure PN16.
  • Maximum inlet or working pressure: 10 bar.
  • Minimum opening pressure: 0.2 bar.

Dimensions

82.1 x 63.4 x 25.2 x 29.4 mm.

Manufacturer guidance

  • Nominal Compression: A x B x C x D.
  • Nominal Threaded: A x B x C.

Weight

0.17 kg.

Inlets/outlets diameter

15 mm.

Material (all components)

Body and compression nut: Brass CW602N, Vent plug: Nylon, Compression olive: Cartridge brass H62, Cartridge: Acetal, O-ring: NBR or EPDM, Retaining clip: Stainless steel grade 304, Plating: Nickel plated.

Guidance for specification option:

Body: DZR brass.

Manufacturer guidance

  • Brass (Body, and compression nut) to BS EN 12165 CW602N and cartridge brass to BS EN H62.
  • Stainless steel to AISI 304.



Sustainability data

Material

Brass

Guidance for specification option:

Body, vent plug, compression nut and olive.

Recyclability

Recycle locally

Expected Life

20 year

Literature

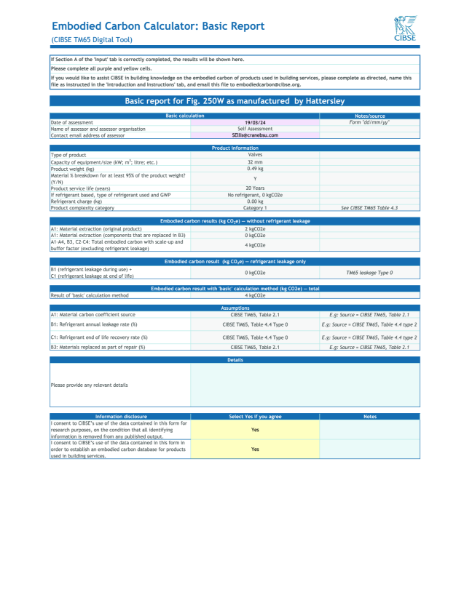

Fig. 250W Double Check Valves - TM65-HATTERSLEY-FIG. 250W-DN15

Fig. 250W Double Check Valves - TM65-HATTERSLEY-FIG. 250W-DN15

Fig. 250W Double Check Valves - TM65-HATTERSLEY-FIG. 250W-DN20

Fig. 250W Double Check Valves - TM65-HATTERSLEY-FIG. 250W-DN20

Fig. 250W Double Check Valves - TM65-HATTERSLEY-FIG. 250W-DN25

Fig. 250W Double Check Valves - TM65-HATTERSLEY-FIG. 250W-DN25

Fig. 250W Double Check Valves - TM65-HATTERSLEY-FIG. 250W-DN32

Fig. 250W Double Check Valves - TM65-HATTERSLEY-FIG. 250W-DN32

Fig. 250W Double Check Valves - TM65-HATTERSLEY-FIG. 250W-DN40

Fig. 250W Double Check Valves - TM65-HATTERSLEY-FIG. 250W-DN40

Fig. 250W Double Check Valves - TM65-HATTERSLEY-FIG. 250W-DN50

Fig. 250W Double Check Valves - TM65-HATTERSLEY-FIG. 250W-DN50

Similar products from Hattersley

Fig. 3047W Check Valve Swing Pattern

Fig. 3047W Check Valve Swing Pattern

Fig. 47 Check Valve Swing Pattern

Fig. 47 Check Valve Swing Pattern

Fig. 861 Check Valve Wafer Pattern

Fig. 861 Check Valve Wafer Pattern

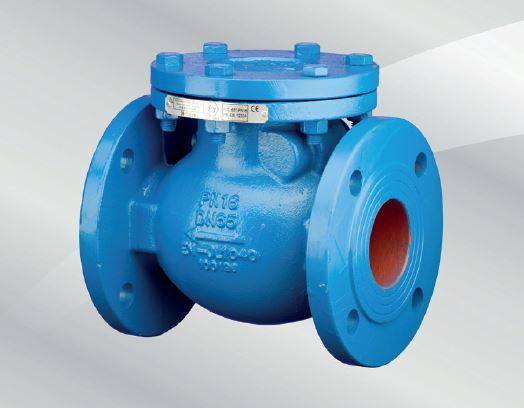

Fig. M651 Check Valve Swing Pattern
