Fig. 1000 Flow Measurement Device
Verified by manufacturer 14 days ago
DN15
DN15

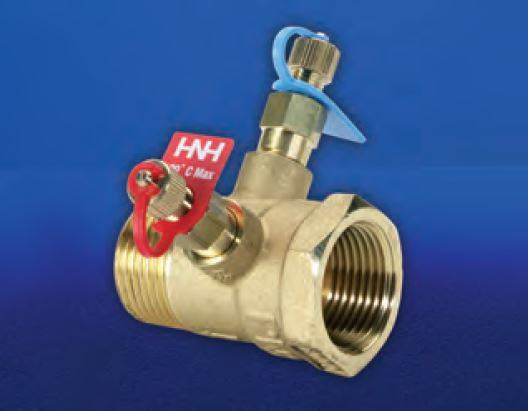

DZR brass metering station.
Application
- WRAS Approved for use as water measurement device with potable water up to 99°C.
- For use with test point Fig. 631.
Description
DZR brass metering station.
Features and benefits:
- Precise and accurate measurement, conforming to BS 7350:1990.
- Dezincification resistant material preventing corrosion cracking and fungal growth.
- WRAS Approved for use with potable water up to 99°C.
- Supplied with red and blue test points for upstream and downstream port identification.
General information
Color | Yellow Guidance for specification option: Brass body and test point. Red Guidance for specification option: Upstream test point marker. Blue Guidance for specification option: Downstream test point marker. |
Material | Brass |
Uniclass | |
CAWS | S14/490 Water metering valves |
Product range |
Specification data - Flow-measuring valves
General requirements | Test points. |
Standard | To BS 7350: 1990. |
Arrangement | 1. |
Material | DZR brass to BS EN 12165 CW602N. |
Connections | Threaded end connections to BS EN 10266 (ISO 7-1).Guidance for specification option:
|
Third party certification: | WRAS Approved product up to 99°C. |
PressureRange | Temperature: -10 to +100°C: 20 bar, 120°C: 15 bar. WRAS Approved for use with potable water up to 99°C. Guidance for specification option: Threaded ends: PN20 Series B. Manufacturer guidanceTest pressures: Shell (30 bar). |
Inlets/outlets diameter | DN15. Manufacturer guidanceNominal. |
Dimensions | 57 x 55 mm. Manufacturer guidanceNominal A x B. |
Weight | 0.29 kg. |
Integral accessories | Position indicator. Guidance for specification option: Supplied fitted with two Fig. 631 test points (red and blue). |
Flow capacity | 2.244 Kv and 1.94 Kvs. |
Sustainability data
Material | Brass |
Recyclability | Recycle locally |
Expected Life | 20 year |
