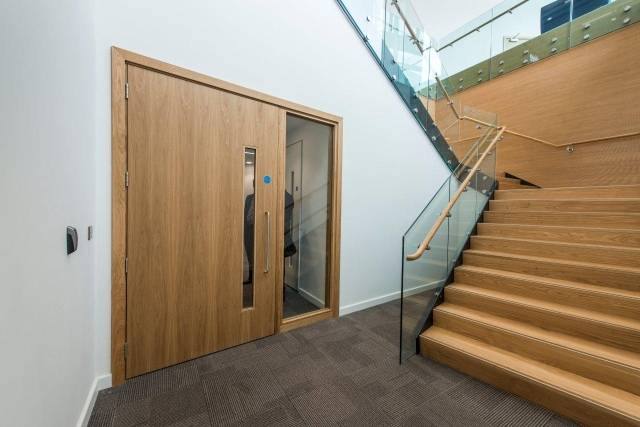

Fields TimberCore Doorset
Solid timber doorset.
Description
Door leaves are constructed from 45 or 54 mm high performance laminated, solid timber core, faced with chipboard or MDF. The density and finish of the product permits the manufacture of door leaves without perimeter framing and additional sub-facing. Available as a doorset or door leaf and can be partnered with Fields Wall Panelling for a fully coordinated design.
Features:
- Available fire ratings: FD30, FD60 or non-fire rated.
- Acoustic performance up to 38 dB.
- Can be supplied with softwood, hardwood, MDF or steel frames depending on fire rating.
- Cold smoke protection can be accommodated.
- Certified by the Exova BM Trada Q-Mark Fire Door Manufacture scheme for fire doors if required.
- Available as fully FSC certified doorset.
General information
Size | Insert requirements. |
Finish | Clear lacquer Factory painted Final finish Can be matt or high gloss as required. Primed for onsite painting Stain |
Features | Available fire ratings: FD30, FD60 or non-fire rated Acoustic performance up to 38 dB Can be supplied with softwood, hardwood, MDF or steel frames depending on fire rating Cold smoke protection can be accommodated Certified by the Exova BM Trada Q-Mark Fire Door Manufacture scheme for fire doors if required |
Uniclass 2015 | |
CAWS | L20/410 Wood doorsets L20/420 Wood doorsets L20/430 Wood doorsets L20/55 Doorsets |
Specification data - Wood doorsets
Product Reference | Fields TimberCore Doorset FD3044 mm thickness. Fields TimberCore Doorset FD6054 mm thickness. Fields TimberCore Doorset non-fire rated |
Size | Insert requirements. |
Glazing | - |
Type | Insert requirements. |
Size | Insert requirements. |
Shape | Insert requirements. |
Facing | Hygienilac PVCAntibacterial facing. LaminateExposed, concealed or postformed over door edges. PVCExposed, concealed or postformed over door edges. Wood veneerBook, slip or random matched and laid either vertically or horizontally. |
Frame/ architrave | HardwoodMDFSoftwoodSteel |
Finish | Clear lacquerFactory paintedFinal finishCan be matt or high gloss as required. Primed for onsite paintingStainTinted lacquer |
Ironmongery | Insert requirements. |
Standard product features | Size (maximum): - Height:
- Width:
|
Product Options | Performance:
Glazing: Doorsets are factory glazed, when specified using clear laminated fire resisting glass in conjunction with intumescent materials. The glass is retained using a purpose-made, pin-fixed, hardwood splayed and rebated cloak type or square section flush check glazing bead. The maximum permitted glazed area per leaf must not exceed 1.9 m² throughout the configuration range and is dependent on the fire rating. Aperture shape is unrestricted and may be in multiple or single paned form providing glazing is not less than 100 mm from the door leaf edges, and not less than 80 mm between apertures. Over panels: One piece over panels not greater than the width of door leaf/ leaves are permitted in all configurations with a separating transom. A rebated or square interface between door leaf and over panel is also permitted without transom. Maximum allowed heights are:
Lipping: All doors will be supplied with hardwood lippings, concealed or exposed and square, rounded or rebated. Doors will normally be supplied with lippings to both vertical and horizontal edges. Ironmongery: An extensive range of ironmongery is permitted for use. Concealed cableways to facilitate electro-magnetic closing/ latching mechanisms and acoustic seals are also permitted within the scope of the fire assessment. |
