FiberTite® XT FB - Waterproofing Membrane

Verified by manufacturer 2 months ago

MOY

Waterproof membrane incorporating four layer technology and a proprietary ELVALOY™ Ketone Ethylene Ester (KEE) based formula.

Jump to:
+44 (0)1245 707 449 Website

Application

  • Exposed roof surfaces.
  • Used on roofs of all shapes and sizes - whether flat, sloped or curved.
  • Adhered over suitable substrates; in warm roof constructions over appropriate thermal insulation (e.g. Paratherm G glass tissue faced polyisocyanurate (PIR) insulation or mineral wool) and load bearing substrates such as timber, sheet metal or concrete.
  • Suitable for new, and subject to specification, refurbishment applications.
  • Can also be utilised in ballasted applications with suitable protection and surface finishes.


Description

FiberTite® XT FB 'fleece-back' features a reinforced polyester knit fabric, coated with a proprietary compound, utilizing ELVALOY™ Ketone Ethylene Ester (KEE) as the principle polymer in the hybrid vinyl alloy coating.


It is a nominal 1.27 mm thick membrane and is an Xtra-Tough version of the FiberTite family of membranes, which not only meets or exceeds the minimum physical property requirements in EN 13956 and ASTM D6754-15 Standard Specification for Ketone Ethylene Ester (KEE) Based Sheet Roofing, but it surpasses the physical properties and performance characteristics versus many other thicker membranes.


The membrane incorporates a 135 g/m² non-woven polyester felt, heat bonded to the underside of the membrane with a 75 mm selvedge edge for field welding. It is manufactured in conventional 1.83 x 24.38 m rolls.


Carefully manufactured to allow strict control over the production process, from the selection of the yarns, to the engineering, knitting and weaving of the base fabrics, to the final coating process.


All FiberTite Roofing Membranes are constructed using high tenacity/heavy weight yarns to create a base fabric reinforcement to provide superior puncture, tensile and tear resistance properties. The base polyester fabrics are primed with a unique and proprietary adhesive coat that lays the foundation to physically bond the KEE coatings to the 'fibre' to maximize seam strength and overall membrane performance.


The membrane is coated on the face and back with an original 'KEE' formulation to provide superior hot air welding characteristics, extreme UV resistance, broad chemical resistance and long-term flexibility and reparability for the installed roofing membrane system. It exhibits superior tear, puncture, fungus, algae and flame resistance. CE marked.

General information

Color

White

Finish

Smooth

Material

Fabric

Shape

Rectangle

Length

24380 mm

Width

1830 mm

Height

1.27 mm

Guidance for specification option:

Thickness.

Warranty description

-

Manufacturer guidance

25 year MOY Warranty. Subject to MOY Specification.

Uniclass

Pr_25_57_51_66 Polymeric membranesPrimary

CAWS

J42/28 Waterproof membrane

J42/400 Waterproof membrane

Specification data - Polymeric membranes

Material

ELVALOY™ Ketone Ethylene Ester (KEE).

Standard

To BS EN 13956.

Performance characteristics

-

External fire performance

Class F.

Reaction to fire

Class E.

Watertightness

Pass.

Tensile properties

≥3000 N/50mm.

Tear resistance

≥110 N.

Integral backing fleece

Required.

Width (minimum)

1.82 m.

Thickness (minimum)

1.27 mm.

Colour

DC196 Off White.

Water vapour permeability

2.67 g m²/ 24h-1.

Resistance to water penetration

No staining.

Water absorption

1.03%.

Resistance to static loading - 20kg load

>20 kg.

Resistance to impact

Aluminum base: ≥ 500 mm, EPS base: ≥ 2000 mm.

Peel resistance

≥115 N/50mm.

Dimensional stability

Longitudinal: -0.2%, Transverse: 0.0%.

Durability

UV exposure: Pass.

Sustainability data

Contains Red List materials

No

Country of material origin

United States

Country of product manufacture

United States

Embodied carbon

A1-A3 (production stage) as defined in BS EN 15804

6.7 kg CO₂ eq/m²

Self declared

Recyclability

The by-products of the manufacturing process could be recycled internally. Where membranes have become contaminated by external agents during service, they may be downcycled into other products or utilised in roof overlays.

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

0 %

Literature

Moy Corporate Brochure

Moy Corporate Brochure

FiberTite® Brochure

FiberTite® Brochure

MOY Services Brochure

MOY Services Brochure

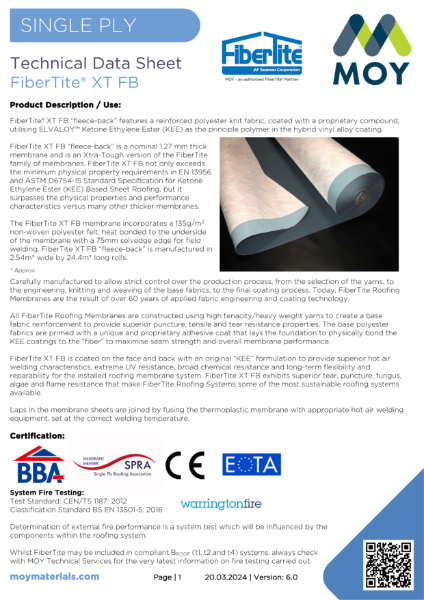

FiberTite XT FB TDS
