FGT - Reinforcing Mat

Verified by manufacturer 6 months ago

Dural (UK) Ltd Third party certifications:
  • KIWA BDA

    KIWA BDA

    Certificate type

A fibreglass reinforcing and decoupling mat for indoor and outdoor walls and floors.

Jump to:
BOS
+44 (0)1924 360110 Website

Application

  • For both indoor and outdoor usage.
  • Walls and floors.
  • Can be installed over old ceramic tiles, OSB boards, wooden floors and cracked floor screeds.
  • Suitable for large-format tiles, natural stone floor coverings and directly glued carpeting.

Description

DURABASE FGT is a fibreglass reinforcing and decoupling mat for indoor and outdoor walls and floors.


In renovation projects, it is common to encounter substrates that are not sufficiently stable enough to install new floor coverings. Conventional renovation methods usually cannot be applied due to their installation height.


If a change of flooring type is then planned, e.g. tiling on wooden floors or vinyl floor covering on old and cracked tiles, the sub-structures need to be additionally reinforced to reduce stress due to differing thermal expansion of the materials.


DURABASE FGT is a fibreglass reinforcement mat that guarantees maximum strength yet at the same time is flexible enough to compensate for any stress which may occur. It is the safe choice for all types of floor coverings that need to be installed on substrates with insufficient load-bearing characteristics.


Features and benefits:

  • Material thickness of only 1.5 mm.
  • Loads are absorbed and dissipated into the substrate without cracking.
  • Able to permanently compensate vertical stress between the substrate and the floor covering.
  • Guaranteed permanent bond between the substrate and floor covering.

General information

Color

Yellow

Material

Glass Fibre

Fleece

Shape

Other

Guidance for specification option:

Roll.

Length

30000 mm

15000 mm

5000 mm

Width

1000 mm

Height

1.5 mm

Uniclass

Pr_20_96_71_33 Glass fibre fleece reinforcementPrimary

CAWS

M50/170 Carpeting

M50/25 Carpeting

M40/10 Natural stone covering to

M40/5 Tiling to

M40/115 Natural stone covering to

M40/110 Tiling to

Specification data - Glass fibre fleece reinforcement

Width (minimum)

1000 mm.

Crack bridging

0.74 mm with 13.3 kN.

TensileStrength

Maximum: 5.000 N/50mm (average); Adhesive: 1.1 N/mm² (average).

Load

Point: 1.581 kg; Surface: 1.668 kg.

Bending strength

400 000 cycles at a deflection of 1.8 mm.

Sustainability data

Material

Glass Fibre

Fleece

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
Revit
-

1

IFC
-

1

Third party certifications

KIWA BDA

KIWA BDA

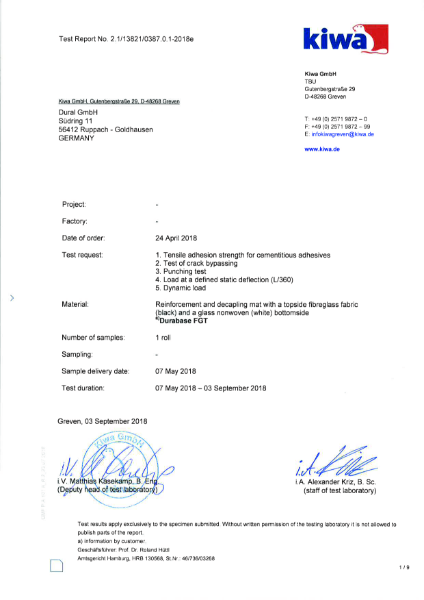

FGT Matting Test Certificate

Literature

DURABASE FGT Reinforcing Mat Technical Datasheet

DURABASE FGT Reinforcing Mat Technical Datasheet
