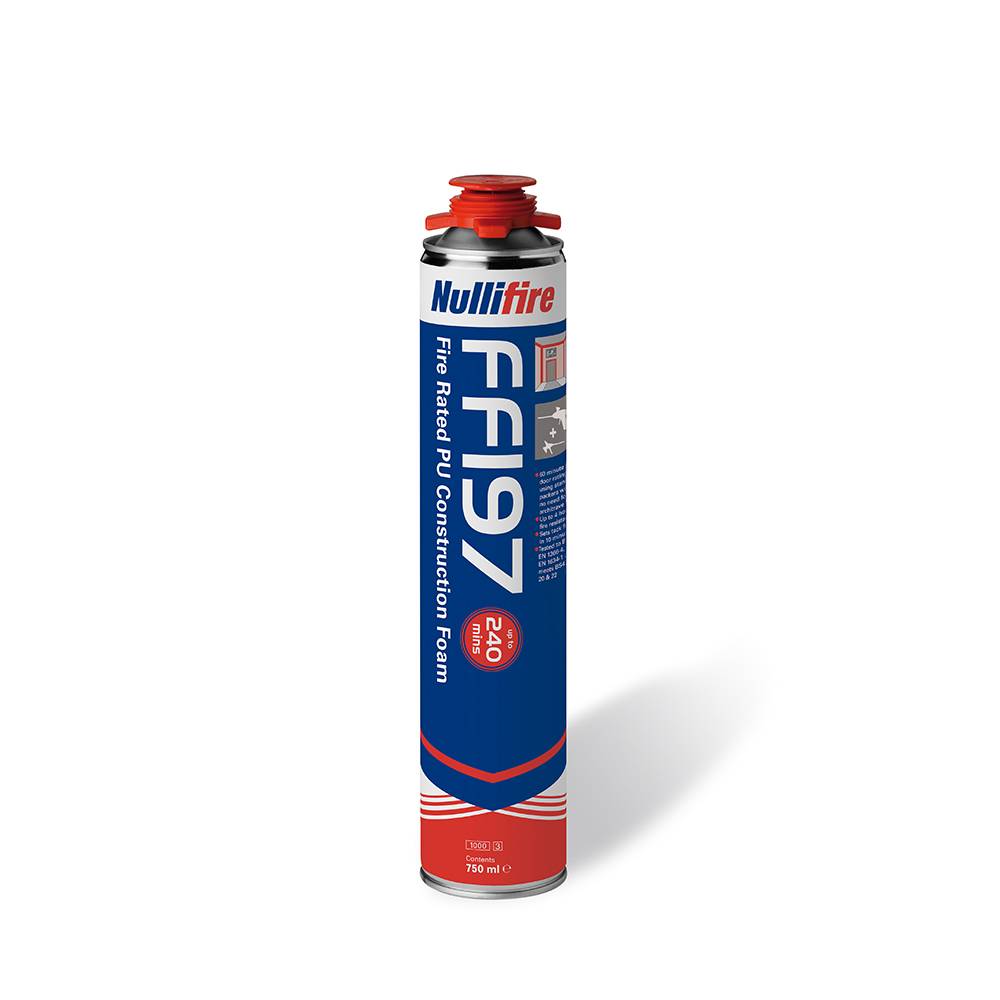

FF197 Gun Grade Fire Rated PU Foam
Verified by manufacturer 6 months ago
A modified, single component, fire rated polyurethane foam.
Application
Used to seal door and window frames throughout the fire rated areas of a building.
Nullifire FF197 has excellent adhesion to most building materials such as wood, brick, stone, cement, plaster, polystyrene, cable sheaths, metals, plastics and firmly sets in approximately one hour.
Description
A modified, single component, fire rated polyurethane foam used to seal linear gaps through fire rated areas of a building.
Fire resistance:
Nullifire FF197 has excellent uneven gap filling properties and bonds to most common building materials. This product acts as a fire seal for up to four hour fire rating, tested to the latest British and European standards BS EN 1366-4 and DIN 4102-1 (B1), it can also be used in conjunction with Nullifire FS702 intumescent acrylic or FS703 silicone sealant. Tested to BS EN 1634-1 (fire door); FD60 performance achieved.
Feature and benefits:
- Bulk filling of irregular gaps and voids.
- Outstanding fire resistance even without capping.
- Quick and easy installation.
- Excellent accoustic performance, up to 62dB
- Tested in gaps up to 40mm
- Excellent adhesion to most substrates.
- Good smoke sealing, acoustic and insulation properties.
- Service temperature: -40 to +90°C.
- Tack free: 10 minutes.
General information
Color | Grey |
Material | Polyurethane |
Warranty description | 50 year |
Uniclass | |
CAWS | P12/335 Intumescent foam fillers P12/36 Intumescent foam fillers |
Product range |
Specification data - Intumescent foam fillers
Classification data | |
Material | Fire rated polyurethane semi-rigid foam. |
Colour | Grey. |
Product Reference | Nullifire FF197 Gun Grade Fire Rated PU Foam |
AcousticRating | Up to 62 dB. Manufacturer guidance(to BS EN ISO 140-3): |
Fire performance | Up to four hours. Manufacturer guidance(to BS EN 1366-3, BS EN 13501-2): |
Loading | 24 hours. |
ShearStrength | 57 kPa. |
TensileStrength | 81 kPa. |
ThermalConductivity | 0.036 W/m.K. |
Sustainability data
Material | Polyurethane |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
