Application

  • Decorative means of restricting access to potentially hazardous areas
  • Suited to waterfronts, bridges and near steep inclines

Description

The Festival (steel) post and rail system comprises 1200 mm uprights and a choice of three or five rails. This product will meet the requirements of BS EN 1317/BS 7818 for Pedestrian Restraint Systems in Metal.


Features and benefits:

  • Available in any RAL colour
  • Powder coated steel
  • Three or five rail options

General information

Color

Other

Guidance for specification option:

Any RAL colour.

Finish

Galvanized

Powder-coated

Material

Steel

Shape

Other

Height

1201 mm

Uniclass

Ss_25_15_60_56 Metal post and rail barrier systemsPrimary

CAWS

Q41/110 Pedestrian restraint systems in metal

Q41/130 Protective barriers

Q41/135 Proprietary protective barriers

Q41/130 Protective barriers

Specification data - Metal post and rail barrier systems

System performance

Restricting access to potentially hazardous areas.

Standard

To BS EN 1317 and BS 7818.

Posts

Steel posts.

Post foundations

Flat, homogeneous foundation (concrete or similar).

Base boards

Steel panels.

Rails

Mild steel rails.

Site applied finishes

Galvanized and polyester powder coated.

System accessories

Guidance for specification option:

Consult manufacturer and insert requirements or omit.

Samples required

Guidance for specification option:

Consult manufacturer and insert requirements or omit.

Colour

RAL colour.

Guidance for specification option:

Available in any RAL colour, insert requirements.

Diameter

50 mm.

Manufacturer guidance

Rail Diameter.

Height (above ground)

1201 mm.

Weight

17.10 kg.

Fixing method

Baseplate.

Number

Three.

Five.

Sustainability data

Contains Red List materials

No

Country of material origin

United Kingdom

Literature

Festival Intermediate Post and Five Rails

Festival Intermediate Post and Five Rails

Similar products from Marshalls Landscape Protection & Street Furniture

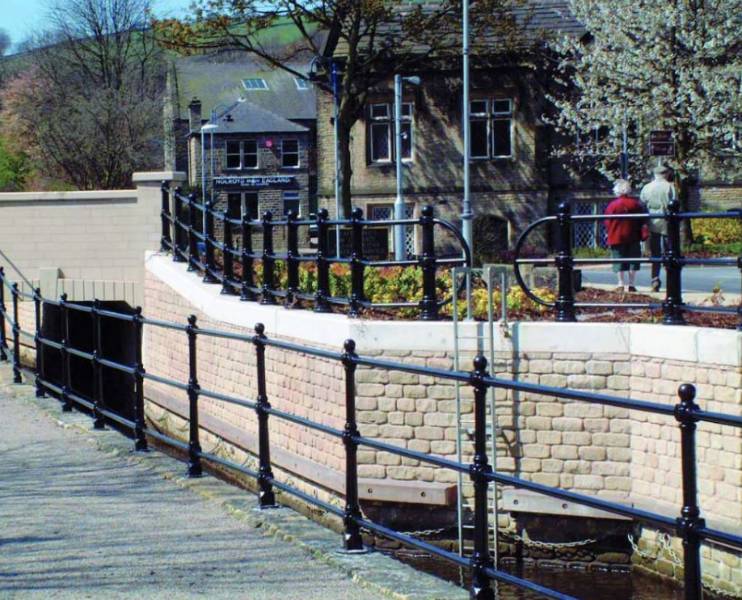

Ferrocast Berwick Post and Rail

Ferrocast Berwick Post and Rail

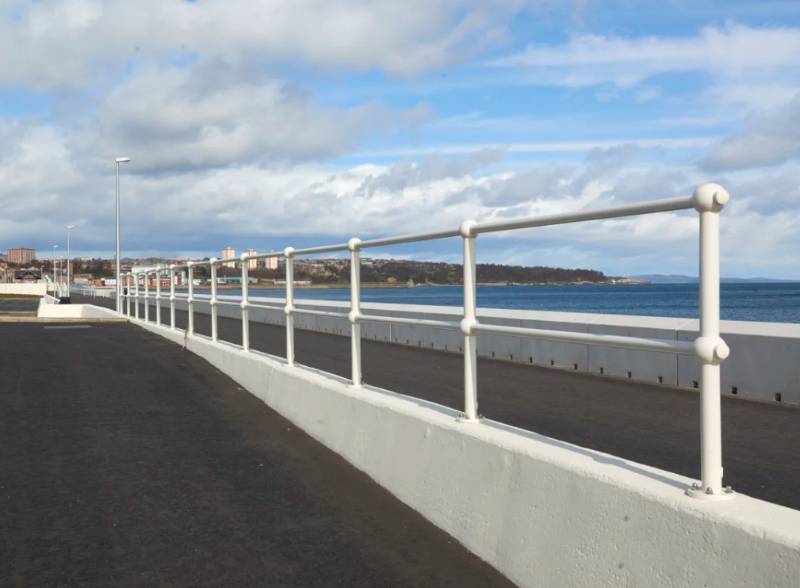

Ferrocast Harbour Post and Rail

Ferrocast Harbour Post and Rail

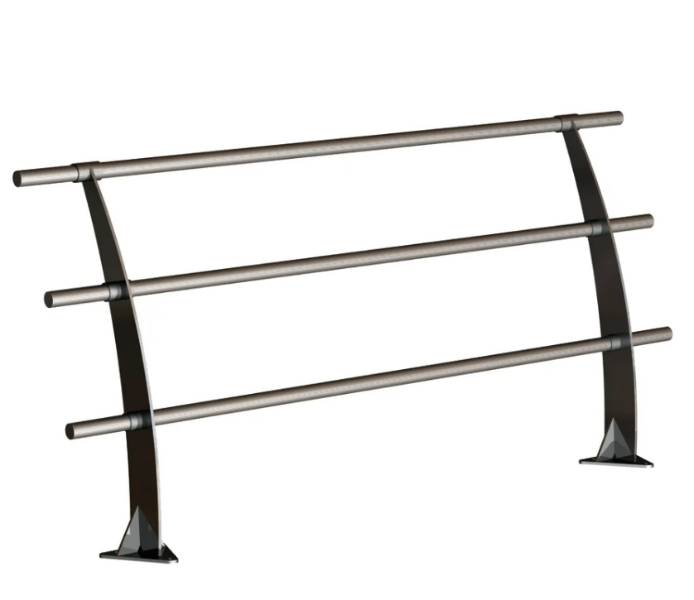

M3 Post and Rail

M3 Post and Rail

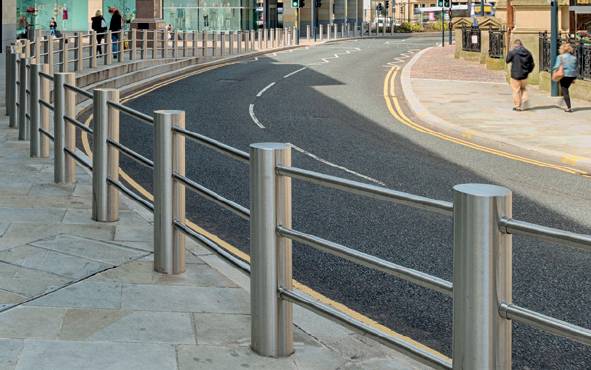

RhinoGuardĀ® Post and Rail
