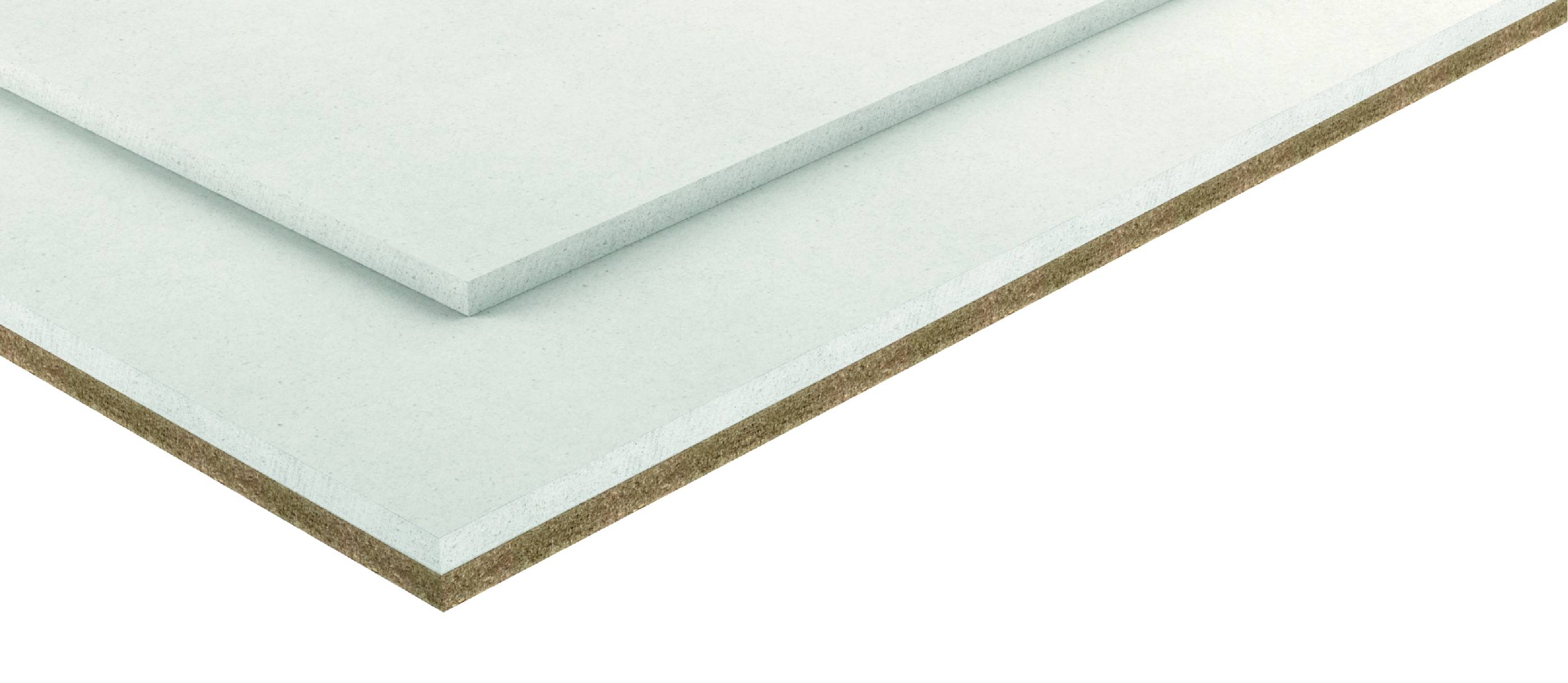

fermacell® 2E31 Flooring Overlay System
Verified by manufacturer 10 months ago
EPD
Certificate type
European Technical Approval (ETA)
Certificate type
Flooring overlay system.
Application
The flooring is a workable surface for a range of uses. Scope of application fermacell® flooring offers solutions for a range of applications:
- New buildings.
- Old-building renovation.
- Living areas.
- Office and administrative buildings.
- Hospitals.
- Lecture halls and classrooms.
- Assembly rooms in public buildings.
- Domestic wet rooms.
- Floors in public showers.
- Industrial flooring.
- Useable floors in internal and external areas.
- Dairies, breweries and swimming pool.
Description
High quality floor constructions can be simply created with fermacell® Flooring Elements. With regard to areas of use, they are comparable to conventional, solid flooring systems, however, they have the advantage of being lightweight as well as having a dry and fast installation. The two boards are offset from one another, so that there is a 50 mm shiplap edge.
Features and benefits:
- Manageable element-sizes - Easy to carry.
- One-person installation.
- Easy installation.
- Swift working process and installation.
- Can be walked on almost immediately.
- Chair castor roll resistance.
- Easy levelling.
- Low additional weight to existing floor.
- Simple and Effective complete system.
- Increased fire protection n Improvement of sound insulation.
- Effective heat insulation.
- Building biologically tested- Ecological Benefits.
- Suitable for domestic wet rooms.
General information
Color | Grey |
Material | Gypsum Guidance for specification option: Gypsum fibreboard. |
Shape | Rectangle |
Length | 1500 mm |
Width | 500 mm |
Uniclass | |
CAWS | K11/27 Acoustic separating floor K11/60 Board K11/295 Floating floor system |
Specification data - Screed flooring
Classification data | |
Third party product certification | BBA certified. |
Colour | Grey. |
Execution | Applying flooring. |
Board | Gypsum fibre board. |
Board thickness | 10 mm (x2). Manufacturer guidanceGypsum fibre board. |
Load | 2.0 kN. Guidance for specification option: A load area of at least 200 mm. (Stamp Ø = 5 mm). Manufacturer guidancePermissionable point load. |
ThermalConductivity | 0.26 m²KW–1. |
Overall thickness | 30 mm. |
Construction | Two layers of 20 mm Gypsum fibreboard and one layer 10 mm wood fibre. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Spain |
Country of product manufacture | Spain |
Material | Gypsum Guidance for specification option: Gypsum fibreboard. |
| Carbon dioxide equivalent | |
Carbon dioxide equivalent, as defined in BS EN 15804 Certified | |
Stage Normalised unit (kg CO₂ eq/kg) Declared unit (kg CO₂ eq/kg) Stage:A1–A3 ('Production stage') Normalised unit : -0.458 (kg CO₂ eq/kg) Declared unit : -4.58E-1 Lower emissions | |
Recyclability | Fermacell can be recycled via James Hardie Building Product Ltd's manufacturing facility |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 100 % Guidance for specification option: Best Fermacell gypsum fibreboard contains 100% recycled content. All by-products recyclable. |
Expected Life | Lifetime |
Product certifications
Product certifications
Certification type
EPD
EPD Fermacell Fibre Gypsum Boards
European Technical Approval (ETA)
ETA Fermacell Flooring
Literature
Fermacell Flooring Systems
