fermacell® 1S15-H₂O Partition

100 mm wall thickness.

James Hardie Building Products Ltd Variant:
Third party certifications:
  • BBA Agrément Certificate

    BBA Agrément Certificate

    Certificate type

Steel stud partition with Powerpanel H₂O and fermacell® gypsum fibreboard

Jump to:
+44(0)1213113480 Website

Application

Partition walls.

Description

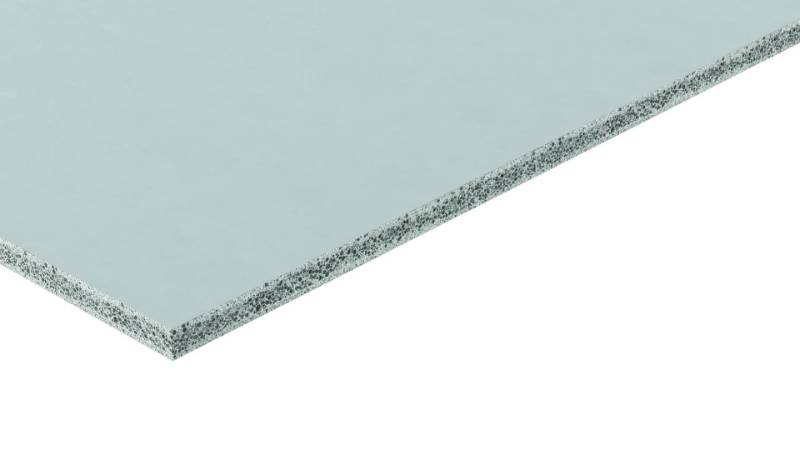

Metal stud partition system based on fermacell® Powerpanel H₂O linings. fermacell® PowerPanel H₂O board is an advanced water resistant cement bonded board ideal for walls, floors, and ceilings. It’s specifically designed for use where there are damp conditions, such as leisure and sports centres, swimming pools and catering facilities. Whereas traditional materials such as plywood and plasterboard are liable to swell, break or disintegrate when wet, PowerPanel H₂O board stays strong and firm, no matter how damp it gets. PowerPanel H₂O board is an A1 non-combustible product exceeding all building regulations for fire resistance, whilst also being impervious to water damage. Boards are made with reinforced glass fibre to offer the ultimate in strength and acoustic performance, minimising both impact and airborne sound. PowerPanel H₂O board is quick and easy to fit on to masonry, timber or steel and installation is based on the same simple construction techniques that are used with standard dry lining materials.


Features and benefits:

  • Lightweight solution.
  • Non combustible A1.
  • BBA certified 13/5044.
  • Easily curved.
  • Moisture and mould resistant.
  • Withstands heat up to max. 200°C.

General information

Color

Board colour.

Grey

Finish

Dependent on board type. Refer to manufactures details.

-

Material

Aggregate

Cement

Gypsum

Shape

Rectangle

Length

2600 mm

  • fermacell® boards.
  • Powerpanel H2O boards.

Width

1200 mm

Uniclass

Ss_25_10_30_35 Gypsum board partition systemsPrimary

CAWS

K10/30 Metal stud

K10/125 Metal stud partition system

Specification data - Gypsum board partition systems

System performance

To EN 1364-1 and BS 476-22, 30 minute fire rated partition.

Insulation

Not required.

Linings

-

Inner layers

One layer of 12.5 mm fermacell® fibre gypsum and one layer of 12.5 mm PowerPanel H₂O.

Fasteners

35 mm PowerPanel H₂O screws at max 250 mm centres / 30 mm fermacell® screws at max 250 mm centres.

Joint treatment

fermacell® Jointstik 1 mm glued joint.

For the Powerpanel H2O.

fermacell® Jointstik 1 mm glued joint.

For the fermacell®.

fermacell® Jointfiller 5–7 mm filled joint.

For the fermacell®.

System accessories

Use correct accessories as per manufacturers guidelines.

-

Execution

Installing framed partitions generally.

-

System completion

Verification of performance.

WallThickness

100 mm.

Substructure

Max. 600 mm centres.

75 x 0.6 mm fermacell® studs.

Density

PowerPanel H₂O.

1000 kg/m³.

Flexural strength

PowerPanel H₂O.

≥ 6.0 N/mm².

To EN 12467.

Water vapour diffusion resistance

PowerPanel H₂O.

56 μ.

To EN 12572.

ThermalConductivity

PowerPanel H₂O.

0.17 λ.

To EN 12664.

Shrinkage

PowerPanel H₂O.

Shrinkage / Extension to EN 318.

0.10–0.15 mm/m.

At 30—85 % change in relative humidity (20°C).

MoistureContent

PowerPanel H₂O.

≥ 5%.

At 65% relative humidity at 20 °C air temperature according to DIN EN 322.

CompressiveStrength

PowerPanel H₂O.

11.7 N/mm².

To EN 789.

pH value

PowerPanel H₂O.

10.

Approximately.

Elasticity

PowerPanel H₂O.

4200 N/mm².

To EN 12467.

Sound performance

Rw 41dB.

Board

PowerPanel H₂O board size.

2600 x 1200 mm.

Literature

Fermacell Orange Book

Fermacell Orange Book

Powerpanel H2O ETA Certificate

Powerpanel H2O ETA Certificate

Third party certifications

  • 90/2439 & 13/5044
