FDEB_H
Verified by manufacturer today
EPD
Certificate type
HPDC Certification
Certificate type
PSA rated raised access floor panel complete with factory applied vinyl, linoleum, HPL, or rubber.
Application
Data Centres and Server Rooms
Description
PSA rated raised access floor panel complete with factory applied vinyl, linoleum, HPL, or rubber.
Features and benefits:
- Wide range of covering options available.
- Precision construction and location for an accurate floor grid.
- Solid underfoot.
- Good electrical continuity is maintained.
- Good acoustic performance.
- Safe and easy access.
- Excellent lateral stability.
- BS476-6:1989 & BS476-7:1997 Class O .
- 25 year warranty.
Please contact us for the EPD or more information on the environmental performance of the product
General information
Color | Silver |
Finish | Other |
Material | Particleboard Steel Linoleum Rubber Vinyl |
Shape | Square |
Length | 600 mm |
Width | 600 mm |
Height | 43 mm |
Warranty description | 25 year Guidance for specification option: Total system warranty. |
Uniclass | |
CAWS | K41/315 Floor panels K41/315 Floor panels |
Specification data - Raised access floor panels with finish
Classification data | |
Casing | |
Material | Carbon steel. |
Core | HD particleboard. |
Panel size | 600 x 600 mm. Manufacturer guidanceThickness: 43 mm. |
Dimensional deviations | To MOB PF2 PS/SPU. |
Weight (maximum) | 14.5 kg |
Panel locating method | Positive. |
Panel fixing | Not required. |
Integral finish | |
Material | HPL. Linoleum. Rubber. Vinyl. |
Fixing | Adhesive. |
Edges | Fully protected. |
Sustainability data
Contains Red List materials | No |
Country of product manufacture | United Kingdom |
Material | Particleboard Steel Linoleum Rubber Vinyl |
| Carbon dioxide equivalent | |
Carbon dioxide equivalent, as defined in BS EN 15804 Certified | |
Stage Normalised unit (kg CO₂ eq/kg) Declared unit (kg CO₂ eq/unit) Stage:A1–A3 ('Production stage') Normalised unit : Declared unit : 17.8 | |
Recyclability | 99% |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 70 % |
Product certifications
Product certifications
Certification type
EPD

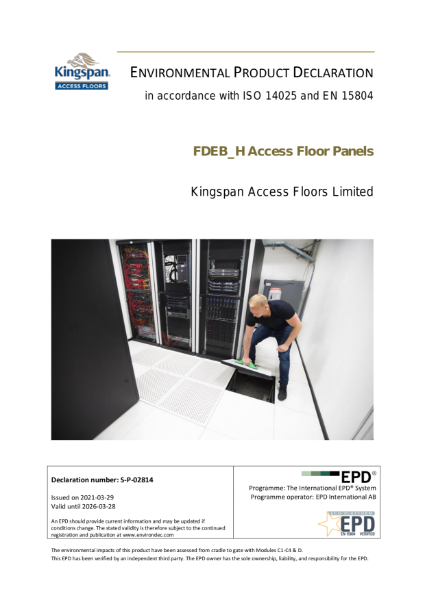

ENVIRONMENTAL PRODUCT DECLARATION in accordance with ISO 14025 and EN 15804 FDEB_H Access Floor Panels
HPDC Certification
Health Product Declaration FDEB_H
Literature

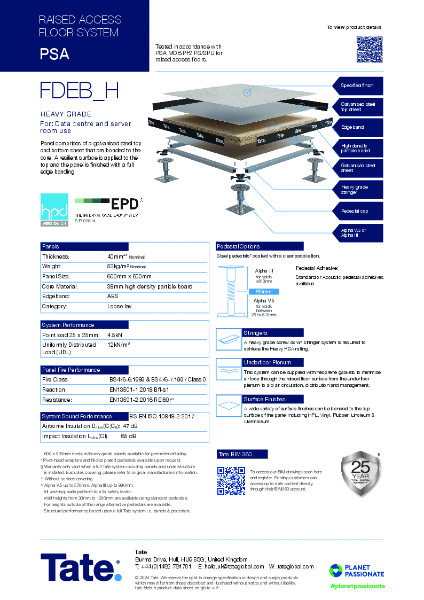

Tate FDEB_H Product Datasheet
Case studies

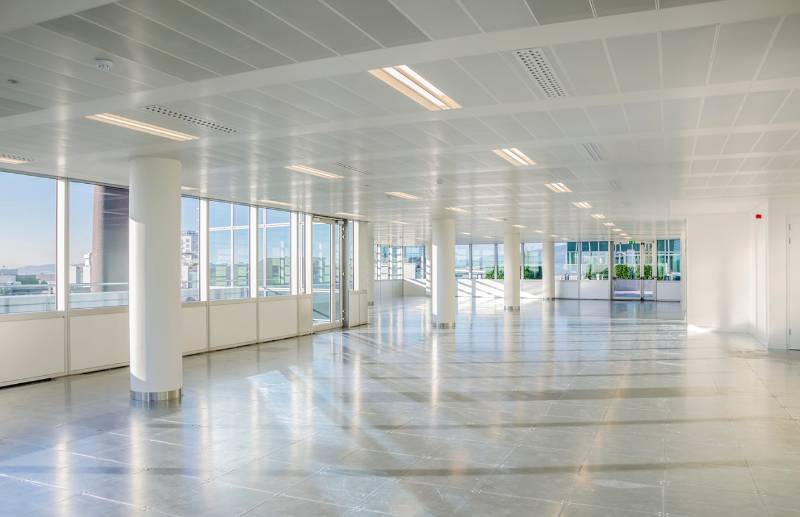

Meta EMEA Dublin
Ewart Building Belfast
