FD90 Timber Internal Flush Doorset
Verified by manufacturer 2 months ago
FD90
FD90
A range of 90 minute fire rated, 64 mm thick, face finished internal doorsets.
Application
Suitable for use in commercial interior construction projects including office, education, health, hotel and retail.
Description
A range of single or double doors and unequal pairs are suitable for fitting into timber or steel frames. Matched overpanels in a transomed timber frame are also available. Face finished with totally bespoke handcrafted real wood veneers or commercially available decorative laminates.
Fire performance:
- Forza FD90 doorsets are approved under IFC Field of Application report PAR/10918/01.
- Each Forza fire door carries a unique IFCC tamper-evident label that identifies its audit trail of manufacture and affirms its fire characteristics.
General information
Color | Clear Beige Black Blue Bronze |
Finish | Lacquered Stained Primed Laminated |
Material | Medium density fibreboard (MDF) Stainless steel Steel Wood Guidance for specification option: Hardwood. Manufacturer guidanceAvailable with HPL, PVC or wood veneer facings. |
Shape | Rectangle |
Uniclass | |
CAWS | L20/410 Wood doorsets L20/480 Doorsets L20/55 Doorsets |
Specification data - Wood doorsets
Configuration | A – Single leaf.B – Double equal leaves.C – Double unequal leaves.D – Single leaf and overpanel.Guidance for specification option: Timber transom frame only. E – Double equal leaves and overpanel.Guidance for specification option: Timber transom frame only. F – Double unequal leaves and overpanel.Guidance for specification option: Timber transom frame only. |
Performance | |
Fire performance | |
Fire integrity | To BS 476-22: 1987, 90 minutes. |
Strength and durability | To BS EN 1192, Class 4.Guidance for specification option: To DD 171:1987, Severe Duty; to BS EN 1192 (EN 947, EN 948, EN 949, EN 950): Severe Duty (Class 4). |
Frame | |
Material | Hardwood.Guidance for specification option: Minimum density: 650 kg/m³. Stainless steel, grade 304.Guidance for specification option: Frame face width minimum 53 mm, including 13 mm stop. Minimum depth: 100 mm. Stainless steel, grade 316.Guidance for specification option: Frame face width minimum 53 mm, including 13 mm stop. Minimum depth: 100 mm. Steel.Guidance for specification option: Manufacturer's standard. |
Perimeter seals or inserts | Factory fitted to frame, PVC cased intumescent/ smoke/ acoustic seals to manufacturer's choice. |
Finish | Lacquered.Primed only.Stained, colour. |
Colour | Manufacturer guidanceStained finish: Insert colour required. |
Door leaf | |
Thickness | 59 mm.Guidance for specification option: Overall thickness. |
Core | Rail and stile composite mineral core, 51 mm thick.Guidance for specification option: Rail and stile composite mineral core 51 mm thick (average density 240 kg/m³) faced with two layers of 4 mm MDF (minimum density 640 kg/m³). Overall thickness: 59 mm. |
Facings | High impact PVC.Wood veneer.Guidance for specification option: Insert species. A wide range of veneers are available, offering a variety of cuts, grain directions and layon matching, including:
Consult manufacturer for further details. High pressure laminate. |
Lippings | Concealed.Exposed.Manufacturer guidanceConcealed/ exposed near match timber hardwood lipping to two vertical edges before applying face finish. Minimum standard finished 3 mm square. |
Perimeter seals | Factory fitted to leaf(s), PVC cased intumescent/ smoke/ acoustic seals to manufacturer's choice.Guidance for specification option: To meet fire and smoke control and sound insulation as specified in applicable test report or assessment (combined seals permitted). |
Finish | Lacquered.Guidance for specification option: Two coats high solid UV cured lacquer; clear/ 30% gloss/ other. Insert requirements. Limed wash.Guidance for specification option: Finished with one coat high solid UV clear lacquer, 30% gloss. Primed only.Guidance for specification option: Forza primed coat (FPC) for painting by others. Stained, colour. |
Colour | |
External | Manufacturer guidanceStained finish: Insert colour required – finished with two coats high solid UV clear lacquer, 30% gloss. |
Internal | Manufacturer guidanceStained finish: Insert colour required – finished with two coats high solid UV clear lacquer, 30% gloss. |
Hardware | Mortise lock/ latch R90 (BOM-LCK-102).R90 lift-off hinge (HIN-BSS-106/7).Guidance for specification option: Brushed stainless steel. R90 Lite butt hinge (HIN-BSS-105).Guidance for specification option: Brushed stainless steel. R90 overhead power closer (CLR-BSS-102).Roller catch (R90 LCK-RCN-100). |
Profile | Guidance for specification option: Consult manufacturer for further details. Manufacturer guidanceFrame profile. |
Duty | Cycling tests to BS EN 1191 (classification to EN 12400): Heavy Duty (Class 7). |
Vision panels | None. V11 - 6 mm Pyran S. Guidance for specification option: With steel 'Z' section beading. V12 - 6 mm Pyran S. Guidance for specification option: With steel 'Z' section beading. V14 - 6 mm Pyran S. Guidance for specification option: With steel 'Z' section beading. V16 - 6 mm Pyran S. Guidance for specification option: With Cloak (hockey stick) beading. |
Sustainability data
Country of product manufacture | United Kingdom |
Literature

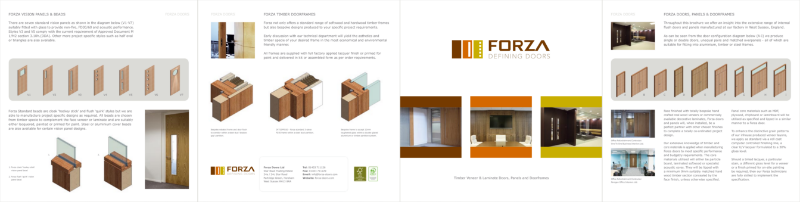

Forza Defining Doors: Timber Veneer & Laminate Doors, Panels and Doorframes
