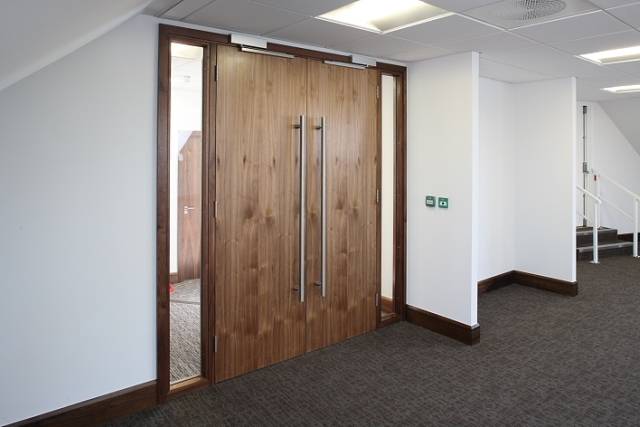

FD60 Timber Frame Internal Screen

Verified by manufacturer 2 months ago

Glazing type FD60/30

Forza Doors Limited Variant:

A range of timber or veneered, MDF framed glazed fire screens.

Jump to:
+44 (0)1403 711126 Website

Application

For internal use in conjunction with the FD60 door range.

Description

Range of standard elevations comprising glazed and door modules, providing 60 minute fire resistance performance when adjudged against BS EN 476-22.


Features and benefits:

  • 60 minute insulation is available.
  • Forza timber-framed glazed screens comply with the structural guidelines recommended in BS EN 5234-2 'Partitions', and BS EN 6180 'Barriers in and about Buildings'.

General information

Color

Clear

Beige

Black

Blue

Bronze

Show more

Finish

Lacquered

Guidance for specification option:

Acid-catalyst lacquer, 20% gloss. Tinted or non-tinted available.

Painted

Guidance for specification option:

Insert colour requirements. Pigmented precast lacquer.

Stained

Guidance for specification option:

Insert colour requirements. Completed with high solid acid catalyst lacquer.

Material

Timber

Guidance for specification option:

Solid softwood or hardwood. Veneer wrap MDF.

Glass

Shape

Rectangle

Uniclass

Ss_25_60_35_30 Fire-resistant glazing systemsPrimary

CAWS

L10/56 Glazed screen system

L10/560 Glazed screen system

Specification data - Fire-resistant glazing systems

System performance

Fire performance to BS EN 476-22, 60 minutes.

Infill

FD60/0 fire glass.

Guidance for specification option:

60 minutes integrity.

FD60/30 fire glass.

Guidance for specification option:

60 minutes integrity/ 30 minutes insulation.

FD60/60 fire glass.

Guidance for specification option:

60 minutes integrity/ 60 minutes insulation.

Retaining arrangements

-

Beads

Flush bead.

Linings

MDF.

Hardwood.

Softwood.

Sustainability data

Country of product manufacture

United Kingdom
